Components central bass for BMW 1 Series F70 120d (2025)

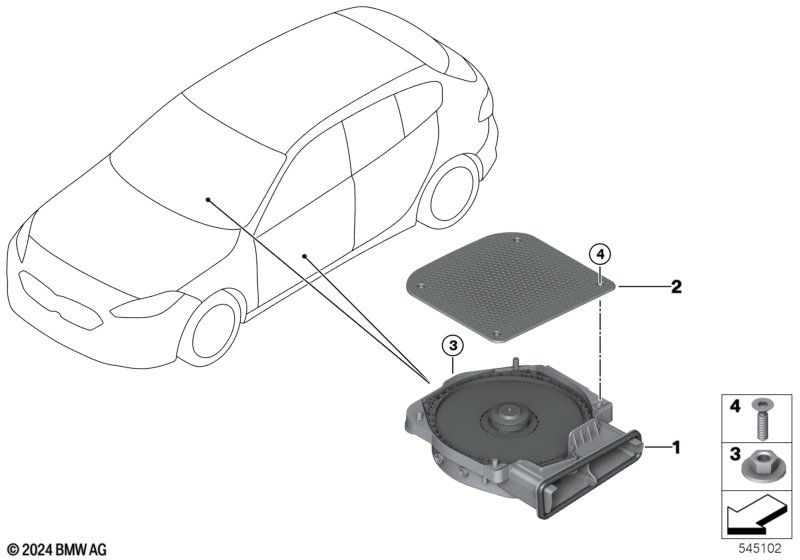

This Components central bass technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Hi-Fi System Harman Kardon |
S674A=Yes |
|||||||||
| 01 | Central bass, left | ALEV 2 | 1 | 65135A64007 | NoS | Shop at ECS Tuning | ||||
| 01 | Central bass, right | ALEV 2 | 1 | 65135A64008 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Hi-Fi System Harman Kardon |
S674A=No |
|||||||||
| 01 | Central bass, left | ALEV 1 | 1 | 65135A64015 | NoS | Shop at ECS Tuning | ||||
| 01 | Central bass, right | ALEV 1 | 1 | 65135A64016 | NoS | Shop at ECS Tuning | ||||
| 02 | Cover | CENTRALBASS | 2 | 65132622499 | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M6 | 4 | 07147311066 | Shop at ECS Tuning | |||||
| 04 | Countersunk head screw | 8 | 51337068211 | $0.19 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
