amplifier / holder hifi system for BMW MINI Cabrio F67 JCW (2025)

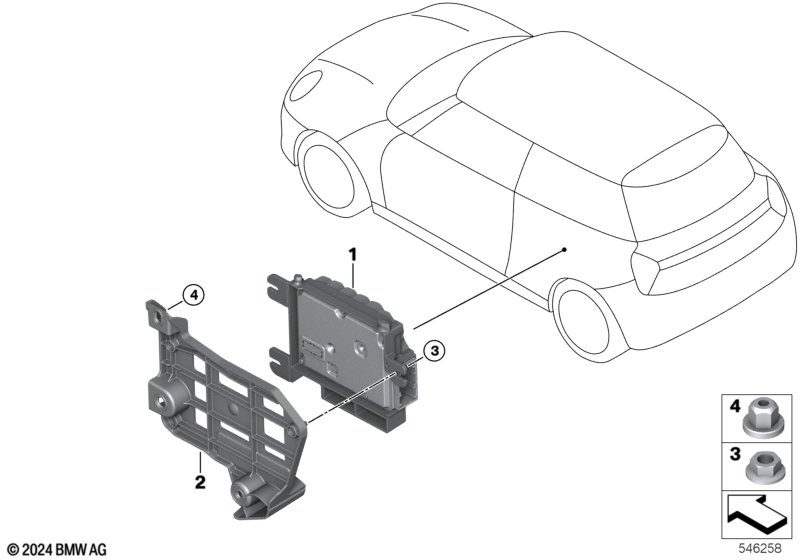

This amplifier / holder hifi system technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Booster | ALEV3 R | 1 | 65125A5CA89 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 65155A49E99 | NoS | Shop at ECS Tuning | |||||
| 03 | Hex nut | M5 | 3 | 07119905710 | $2.83 | Shop at ECS Tuning | ||||
| 04 | Plastic nut for coarse threaded pin | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW amplifier / holder hifi system?
- This technical diagram illustrates the amplifier / holder hifi system within the Audio, Navigation, Electronic Systems group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Booster (Part #65125A5CA89).
- Which models use the hardware listed in this amplifier / holder hifi system?
- The hardware and components featured in the amplifier / holder hifi system are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the Booster (65125A5CA89) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the amplifier / holder hifi system assembly?
- Each item in the amplifier / holder hifi system corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the Booster by locating its position on the schematic, which then links to the official BMW part number 65125A5CA89 for the Audio, Navigation, Electronic Systems section.
