Park Distance Control (PDC) for BMW 7 Series E38 740d (2001)

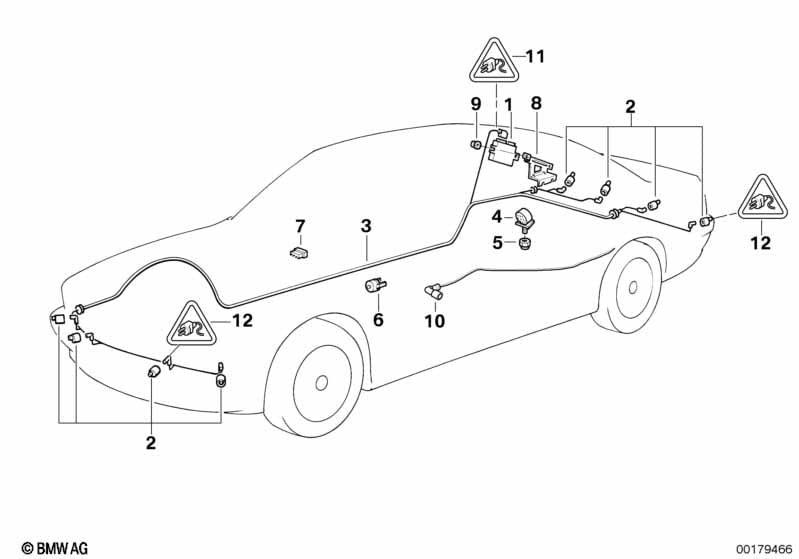

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | From 03/98 the cable set PDC is deleted without being replaced. PDC package is included in rmfd wiring harness. |
|||||||||
| For retrofit rear PDC only | ||||||||||
| 01 | Control unit PDC | 1 | 03/1998 | 66209129812 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor | SCHWARZ | 8 | 03/1998 | 66216902182 | $129.88 | Shop at ECS Tuning | |||
| 04 | Trigger contact PDC | 1 | 03/1998 | 66216903103 | $51.68 | Shop at ECS Tuning | ||||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Gong with holder | 1 | 65819155105 | $82.98 | Shop at ECS Tuning | |||||
| 08 | Bracket control unit PDC | 1 | 03/1998 | 66218375266 | $11.14 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | M6 ZNT | 2 | 03/1998 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
| 11 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 watertight | 0,5-1,0 MM² | 3 | 61130007441 | $5.53 | ENDED | Shop at ECS Tuning | |||
| 12 | Rep. kit for socket housing | 3 POL. | 8 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
