Park Distance Control (PDC) for BMW 5 Series E39 528i (2000)

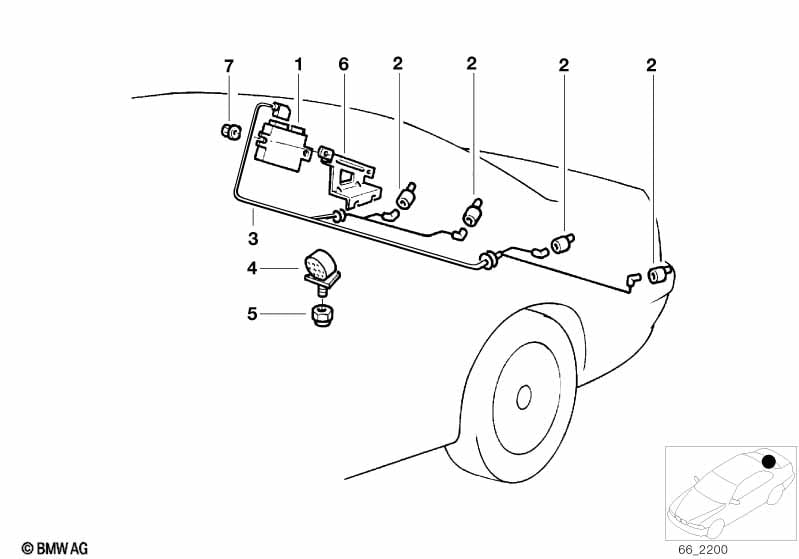

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT NOTICE! The replacement part concept for the ultrasonic converter has been revised! For important information refer to product information in the ASAP 'New replacement concept for painted Park Distance Control (PDC) ultrasonic converter' |
|||||||||
| 01 | Control unit, active PDC | 1 | 09/2000 | 66209129815 | $232.54 | Shop at ECS Tuning | ||||
| 02 | Ultrasonic sensor | SCHWARZ | 4 | 09/2000 | 66216902181 | $129.88 | Shop at ECS Tuning | |||
| Important notice: Control number for Individual and unlisted colors. |
||||||||||
| 02 | Ultrasonic sensor, color code | 4 | 09/2000 | 66202184376 | Shop at ECS Tuning | |||||
| For vehicles with sahara-beige metallic |
M443=Yes |
|||||||||
| 02 | Ultrasonic sensor | SAHARABEIGE | 4 | 09/2000 | 66217000780 | ENDED | Shop at ECS Tuning | |||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 02 | Ultrasonic sensor, Topaz Blue | M364 | 4 | 09/2000 | 66206908236 | ENDED | Shop at ECS Tuning | |||
| For vehicles with schiefer-grün metallic |
M449=Yes |
|||||||||
| 02 | Ultrasonic sensor, Slate Green | M449 | 4 | 09/2000 | 66217019916 | Shop at ECS Tuning | ||||
| For vehicles with imola-rot 2 |
U405=Yes |
|||||||||
| 02 | Ultrasonic sensor | IMOLAROT 2 | 4 | 09/2000 | 66207901540 | ENDED | Shop at ECS Tuning | |||
| For vehicles with leucht-rot |
U017=Yes |
|||||||||
| 02 | Ultrasonic sensor | LEUCHTROT | 4 | 09/2000 | 66206919714 | ENDED | Shop at ECS Tuning | |||
| For vehicles with siena-rot |
M281=Yes |
|||||||||
| 02 | Ultrasonic sensor | SIENAROT | 4 | 09/2000 | 66218385323 | ENDED | Shop at ECS Tuning | |||
| For vehicles with aspen-silber |
M339=Yes |
|||||||||
| 02 | Ultrasonic sensor, Aspen Silver | M339 | 4 | 09/2000 | 66218384703 | Shop at ECS Tuning | ||||
| For vehicles with hell-elfenbein 2 |
U389=Yes |
|||||||||
| 02 | Ultrasonic sensor | HELLELFENBEIN 2 | 4 | 09/2000 | 66206919707 | ENDED | Shop at ECS Tuning | |||
| For vehicles with alpinweiss 3 |
U751=Yes |
|||||||||
| 02 | Ultrasonic sensor | ALPINWEISS 3 | 4 | 09/2000 | 66218384701 | Shop at ECS Tuning | ||||
| For vehicles with black 2 |
U668=Yes |
|||||||||
| 02 | Ultrasonic sensor, Black 2 | U668 | 4 | 09/2000 | 66207901541 | ENDED | Shop at ECS Tuning | |||
| For vehicles with kalahari-beige metallic |
M481=Yes |
|||||||||
| 02 | Ultrasonic sensor | KALAHARIBEIGE | 4 | 09/2000 | 66217050188 | ENDED | Shop at ECS Tuning | |||
| For vehicles with sterling-grau metallic |
M472=Yes |
|||||||||
| 02 | Ultrasonic sensor | STERLINGGRAU | 4 | 09/2000 | 66217050189 | ENDED | Shop at ECS Tuning | |||
| For vehicles with japan-rot |
U438=Yes |
|||||||||
| 02 | Ultrasonic sensor, Japan Red | U438 | 4 | 09/2000 | 66217005118 | Shop at ECS Tuning | ||||
| For vehicles with elfenbein |
U156=Yes |
|||||||||
| 02 | Ultrasonic sensor | ELFENBEIN | 4 | 09/2000 | 66206912851 | ENDED | Shop at ECS Tuning | |||
| For vehicles with cosmos-schwarz |
M303=Yes |
|||||||||
| 02 | Ultrasonic sensor, Cosmos Black | M303 | 4 | 09/2000 | 66207901542 | ENDED | Shop at ECS Tuning | |||
| For vehicles with hell-elfenbein |
U007=Yes |
|||||||||
| 02 | Ultrasonic sensor | HELLELFENBEIN | 4 | 09/2000 | 66206915044 | Shop at ECS Tuning | ||||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Silver | M354 | 4 | 09/2000 | 66218384702 | Shop at ECS Tuning | ||||
| For vehicles with blue-water metallic |
M896=Yes |
|||||||||
| 02 | Ultrasonic sensor | BLUEWATER | 4 | 09/2000 | 66217048238 | ENDED | Shop at ECS Tuning | |||
| For vehicles with leucht-rot 2 |
U350=Yes |
|||||||||
| 02 | Ultrasonic sensor | LEUCHTROT 2 | 4 | 09/2000 | 66206912852 | ENDED | Shop at ECS Tuning | |||
| For vehicles with glacier-grün |
M334=Yes |
|||||||||
| 02 | Ultrasonic sensor, Glacier Green | M334 | 4 | 09/2000 | 66218384705 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Oxford-green 2 |
M430=Yes |
|||||||||
| 02 | Ultrasonic sensor, Oxford Green 2 | M430 | 4 | 09/2000 | 66207901543 | Shop at ECS Tuning | ||||
| For vehicles with stahl-blau |
M372=Yes |
|||||||||
| 02 | Ultrasonic sensor, Steel Blue | M372 | 4 | 09/2000 | 66218001298 | Shop at ECS Tuning | ||||
| For vehicles with feuer-rot 2 |
U375=Yes |
|||||||||
| 02 | Ultrasonic sensor | FEUERROT 2 | 4 | 09/2000 | 66206912853 | ENDED | Shop at ECS Tuning | |||
| 03 | Wiring harness PDC rear | 1 | 09/1998 | 09/2000 | 61128387107 | $43.30 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adapter wire PDC | 2 | 09/1998 | 09/2000 | 61128376876 | $12.37 | Shop at ECS Tuning | |||
| 04 | Trigger contact PDC | 1 | 09/2000 | 66218366362 | $51.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut with plate | M6 Z1-ZNNIV SI | 1 | 09/2000 | 07146778500 | $0.47 | Shop at ECS Tuning | |||
| 06 | Bracket control unit PDC | 1 | 09/2000 | 66218371300 | $8.76 | Shop at ECS Tuning | ||||
| 07 | Plastic nut for coarse threaded pin | M6 | 4 | 09/2000 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 07 | Plastic nut | 4 | 09/2000 | 64507336307 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
