Park Distance Control (PDC) for BMW 5 Series E39 525i (2003)

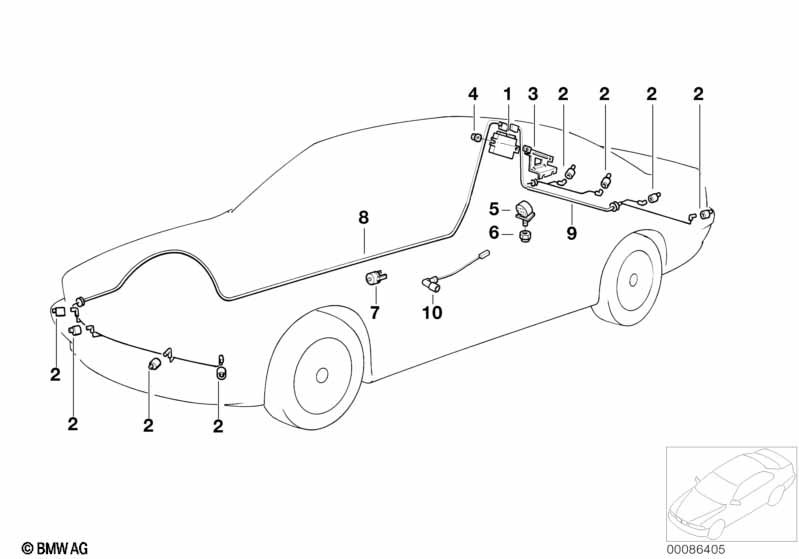

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT NOTICE! The replacement part concept for the ultrasonic converter has been revised! For important information refer to product information in the ASAP 'New replacement concept for painted Park Distance Control (PDC) ultrasonic converter' |
|||||||||
| For retrofit rear PDC only | ||||||||||
| 01 | Control unit PDC | 1 | 09/2001 | 66209129813 | Shop at ECS Tuning | |||||
| Important notice: Control number for Individual and unlisted colors. |
||||||||||
| 02 | Ultrasonic sensor, color code | 8 | 09/2001 | 66202180149 | Shop at ECS Tuning | |||||
| For vehicles with silber-grau metallic |
WA08=Yes |
|||||||||
| 02 | Ultrasonic sensor, Silver/Gray | WA08 | 8 | 09/2001 | 66206989111 | Shop at ECS Tuning | ||||
| For vehicles with mocca-braun metallic |
M891=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mocha Brown | M891 | 8 | 09/2001 | 66206989097 | Shop at ECS Tuning | ||||
| For vehicles with Monacoblau metallic |
WA35=Yes |
|||||||||
| 02 | Ultrasonic sensor, Monaco Blue | WA35 | 8 | 09/2001 | 66206989234 | Shop at ECS Tuning | ||||
| For vehicles with Black-eye purple metallic |
WA24=Yes |
|||||||||
| 02 | Ultrasonic sensor, black-eye purple | WA24 | 8 | 09/2001 | 66202240953 | +core | Shop at ECS Tuning | |||
| For vehicles with astro-black metallic |
WA25=Yes |
|||||||||
| 02 | Ultrasonic sensor, Astro Black | WA25 | 8 | 09/2001 | 66202240840 | +core | Shop at ECS Tuning | |||
| For vehicles with british-racing-green metallic |
WA67=Yes |
|||||||||
| 02 | Ultrasonic sensor, British-Racing Green | WA67 | 8 | 09/2001 | 66207964709 | Shop at ECS Tuning | ||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 8 | 09/2001 | 66206989103 | Shop at ECS Tuning | ||||
| For vehicles with le-mans-blau |
M381=Yes |
|||||||||
| 02 | Ultrasonic sensor, Le Mans Blue | M381 | 8 | 09/2001 | 66207964084 | Shop at ECS Tuning | ||||
| For vehicles with barbera-rot metallic |
WA39=Yes |
|||||||||
| 02 | Ultrasonic sensor, Barbera Red | WA39 | 8 | 09/2001 | 66206989236 | Shop at ECS Tuning | ||||
| For vehicles with indianapolis-rot metallic |
WA31=Yes |
|||||||||
| 02 | Ultrasonic sensor, Indianapolis Red | WA31 | 8 | 09/2001 | 66206989211 | Shop at ECS Tuning | ||||
| For vehicles with silverstone 2 metallic |
WA29=Yes |
|||||||||
| 02 | Ultrasonic sensor, Silver Stone | WA29 | 8 | 09/2001 | 66206989209 | Shop at ECS Tuning | ||||
| For vehicles with mystic-blau metallic |
WA07=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mystic Blue | WA07 | 8 | 09/2001 | 66206989109 | Shop at ECS Tuning | ||||
| For vehicles with chiaretto-rot metallic |
M894=Yes |
|||||||||
| 02 | Ultrasonic sensor, Chiaretto Red | M894 | 8 | 09/2001 | 66206989101 | +core | Shop at ECS Tuning | |||
| For vehicles with platin-grey metallic |
WA68=Yes |
|||||||||
| 02 | Ultrasonic sensor, Platinum Gray | WA68 | 8 | 09/2001 | 66209124158 | Shop at ECS Tuning | ||||
| For vehicles with cool-blue metallic |
WA27=Yes |
|||||||||
| 02 | Ultrasonic sensor, Cool Blue | WA27 | 8 | 09/2001 | 66202240945 | +core | Shop at ECS Tuning | |||
| For vehicles with sterling-grau metallic |
M472=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sterling Gray | M472 | 8 | 09/2001 | 66206989089 | Shop at ECS Tuning | ||||
| For vehicles with orient-blau |
M317=Yes |
|||||||||
| 02 | Ultrasonic sensor, Orient Blue | M317 | 8 | 09/2001 | 66206989077 | +core | Shop at ECS Tuning | |||
| For vehicles with tief-grün metallic |
WA43=Yes |
|||||||||
| 02 | Ultrasonic sensor, Deep Green | WA43 | 8 | 09/2001 | 66206989232 | Shop at ECS Tuning | ||||
| For vehicles with blue-water metallic |
M896=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue Water | M896 | 8 | 09/2001 | 66206989123 | Shop at ECS Tuning | ||||
| For vehicles with blue-onyx metallic |
WS11=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue Onyx | WS11 | 8 | 09/2001 | 66202240966 | +core | Shop at ECS Tuning | |||
| For vehicles with sparkling-silver metallic |
WA60=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sparkling Silver | WA60 | 8 | 09/2001 | 66202240961 | +core | Shop at ECS Tuning | |||
| For vehicles with amethyst-grau |
WA09=Yes |
|||||||||
| 02 | Ultrasonic sensor, Amethyst Gray | WA09 | 8 | 09/2001 | 66206989113 | Shop at ECS Tuning | ||||
| For vehicles with Oxford-green 2 |
M430=Yes |
|||||||||
| 02 | Ultrasonic sensor, Oxford Green 2 | M430 | 8 | 09/2001 | 66206989083 | Shop at ECS Tuning | ||||
| For vehicles with feuer-rot 2 |
U375=Yes |
|||||||||
| 02 | Ultrasonic sensor, Fire Red | U375 | 8 | 09/2001 | 66206989125 | Shop at ECS Tuning | ||||
| For vehicles with sepang-bronze metallic |
WA32=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sepang Bronze | WA32 | 8 | 09/2001 | 66206989212 | Shop at ECS Tuning | ||||
| For vehicles with interlagos-blau metallic |
WA30=Yes |
|||||||||
| 02 | Ultrasonic sensor, Interlagos Blue | WA30 | 8 | 09/2001 | 66206989210 | Shop at ECS Tuning | ||||
| For vehicles with titangrau II metallic |
WA36=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Gray II | WA36 | 8 | 09/2001 | 66206989136 | Shop at ECS Tuning | ||||
| For vehicles with mineral-silber |
WA14=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral Silver | WA14 | 8 | 09/2001 | 66206989116 | Shop at ECS Tuning | ||||
| For vehicles with space-grey metallic |
WA52=Yes |
|||||||||
| 02 | Ultrasonic sensor, Space Gray | WA52 | 8 | 09/2001 | 66209124162 | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 02 | Ultrasonic sensor, Stratus | M440 | 8 | 09/2001 | 66206989085 | Shop at ECS Tuning | ||||
| For vehicles with black 2 |
U668=Yes |
|||||||||
| 02 | Ultrasonic sensor, Black 2 | U668 | 8 | 09/2001 | 66206989106 | Shop at ECS Tuning | ||||
| For vehicles with schiefer-grün metallic |
M449=Yes |
|||||||||
| 02 | Ultrasonic sensor, Slate Green | M449 | 8 | 09/2001 | 66206989086 | +core | Shop at ECS Tuning | |||
| For vehicles with karmesin-rot |
YA61=Yes |
|||||||||
| 02 | Ultrasonic sensor, Crimson Red | YA61 | 8 | 09/2001 | 66209169431 | Shop at ECS Tuning | ||||
| For vehicles with olivin metallic |
M349=Yes |
|||||||||
| 02 | Ultrasonic sensor, Olivine | M349 | 8 | 09/2001 | 66206989079 | Shop at ECS Tuning | ||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 02 | Ultrasonic sensor, Topaz Blue | M364 | 8 | 09/2001 | 66206989122 | Shop at ECS Tuning | ||||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Silver | M354 | 8 | 09/2001 | 66206989081 | Shop at ECS Tuning | ||||
| For vehicles with lightning-blue metallic |
WA63=Yes |
|||||||||
| 02 | Ultrasonic sensor, Lightning Blue | WA63 | 8 | 09/2001 | 66202240967 | +core | Shop at ECS Tuning | |||
| For vehicles with hyper-blue metallic |
WA28=Yes |
|||||||||
| 02 | Ultrasonic sensor, Hyper Blue | WA28 | 8 | 09/2001 | 66202240952 | +core | Shop at ECS Tuning | |||
| For vehicles with neptun-blau metallic |
WA85=Yes |
|||||||||
| 02 | Ultrasonic sensor, Neptune Blue | WA85 | 8 | 09/2001 | 66209124164 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Tiefsee-blau metallic |
WA76=Yes |
|||||||||
| 02 | Ultrasonic sensor, deep-sea blue | WA76 | 8 | 09/2001 | 66209124161 | Shop at ECS Tuning | ||||
| For vehicles with black-sapphire metallic |
M475=Yes |
|||||||||
| 02 | Ultrasonic sensor, Black Sapphire | M475 | 8 | 09/2001 | 66206989091 | Shop at ECS Tuning | ||||
| For vehicles with imola-rot 2 |
U405=Yes |
|||||||||
| 02 | Ultrasonic sensor, Imola Red | U405 | 8 | 09/2001 | 66206989129 | Shop at ECS Tuning | ||||
| For vehicles with royal-grey metallic |
WA48=Yes |
|||||||||
| 02 | Ultrasonic sensor, Royal Gray | WA48 | 8 | 09/2001 | 66202240962 | +core | Shop at ECS Tuning | |||
| For vehicles with hot-orange metallic |
WA26=Yes |
|||||||||
| 02 | Ultrasonic sensor, Hot Orange | WA26 | 8 | 09/2001 | 66202240943 | +core | Shop at ECS Tuning | |||
| For vehicles with toledo-blau metallic |
M482=Yes |
|||||||||
| 02 | Ultrasonic sensor, Toledo Blue | M482 | 8 | 09/2001 | 66206989095 | Shop at ECS Tuning | ||||
| For vehicles with titan-grau metallic |
M892=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Gray | M892 | 8 | 09/2001 | 66206989099 | Shop at ECS Tuning | ||||
| For vehicles with carbon-schwarz |
M416=Yes |
|||||||||
| 02 | Ultrasonic sensor, Carbon Black | M416 | 8 | 09/2001 | 66207964088 | Shop at ECS Tuning | ||||
| For vehicles with platin-bronze metallic |
WA53=Yes |
|||||||||
| 02 | Ultrasonic sensor, Platinum Bronze | WA53 | 8 | 09/2001 | 66209124163 | Shop at ECS Tuning | ||||
| For vehicles with atlantic-blau |
WA13=Yes |
|||||||||
| 02 | Ultrasonic sensor, Atlantic Blue | WA13 | 8 | 09/2001 | 66206989115 | Shop at ECS Tuning | ||||
| For vehicles with cosmos-schwarz and black-sapphire metallic and black 2 For dark colors |
M303=No M475=No U668=No |
|||||||||
| 02 | Ultrasonic sensor, black | SCHWARZ | 8 | 09/2001 | 66206989068 | $129.88 | Shop at ECS Tuning | |||
| 03 | Bracket control unit PDC | 1 | 09/2000 | 66218371300 | $8.76 | Shop at ECS Tuning | ||||
| 04 | Plastic nut for coarse threaded pin | M6 | 1 | 04/2014 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 04 | Plastic nut | 1 | 64507336307 | ENDED | Shop at ECS Tuning | |||||
| 05 | Trigger contact PDC | 1 | 66216902285 | $51.68 | Shop at ECS Tuning | |||||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 1 | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 08 | Retrofit cable set, PDC front | 1 | 09/2000 | 61120027997 | $104.57 | Shop at ECS Tuning | ||||
| 09 | Wiring harness PDC rear | 1 | 09/2000 | 61128387107 | $43.30 | Shop at ECS Tuning | ||||
| 10 | Adapter wire PDC | 1 | 09/2000 | 61128376876 | $12.37 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
