Cruise control for BMW 3 Series E30 320i (1992)

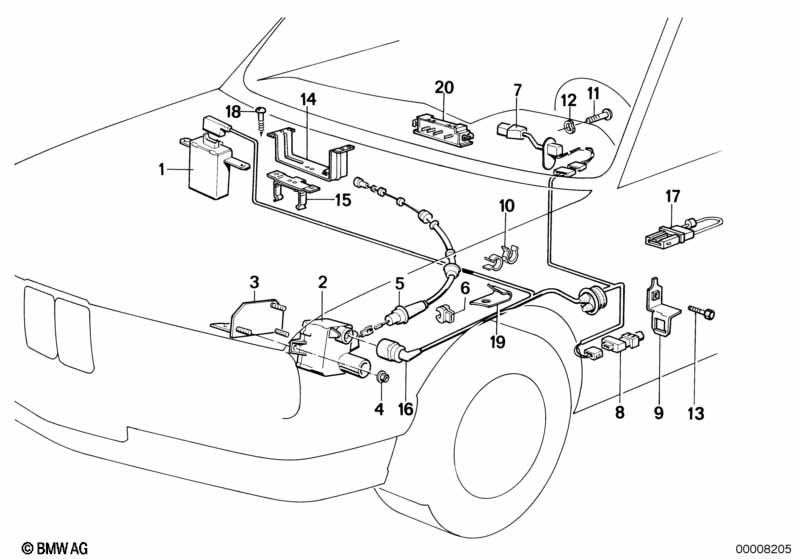

This Cruise control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit f cruise control | 1 | 09/1987 | 65711386189 | $507.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Actuator | 1 | 09/1987 | 65711386242 | $464.29 | ENDED | Shop at ECS Tuning | |||
| 03 | Supporting plate | 1 | 09/1987 | 65711386226 | $6.04 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M5 | 1 | 09/1987 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 05 | Bowden cable f cruise control | 1 | 09/1987 | 65711386243 | $33.98 | Shop at ECS Tuning | ||||
| 06 | Bearing accelator bowden cable | SCHWARZ | 1 | 09/1987 | 13541747519 | $0.58 | Shop at ECS Tuning | |||
| 07 | Cruise control switch | (DEUTSCH) | 1 | 09/1987 | 61311385129 | $199.76 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (ENGLISH) | 1 | 09/1987 | 61311385130 | $105.75 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (FRANCAISE) | 1 | 09/1987 | 61311385131 | $61.66 | Shop at ECS Tuning | |||
| 07 | Cruise control switch | (ITALIANO) | 1 | 09/1987 | 61311385132 | $61.66 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (ESPANOL) | 1 | 09/1987 | 61311385133 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Airbag |
=Yes |
|||||||||
| 07 | Cruise control switch | (DEUTSCH) | 1 | 09/1987 | 61311385134 | $138.38 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (ENGLISH) | 1 | 09/1987 | 61311385135 | $114.09 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (FRANCAISE) | 1 | 09/1987 | 61311385136 | $97.93 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (ITALIANO) | 1 | 09/1987 | 61311385137 | $61.66 | ENDED | Shop at ECS Tuning | ||
| 07 | Cruise control switch | (ESPANOL) | 1 | 09/1987 | 61311385138 | $61.66 | Shop at ECS Tuning | |||
| 09 | Clutch switch bracket | 1 | 09/1987 | 35111157815 | $7.45 | Shop at ECS Tuning | ||||
| 10 | Hose clamp | 1 | 09/1987 | 11721287721 | $1.17 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | M5X16 | 1 | 09/1987 | 07119906415 | $0.16 | Shop at ECS Tuning | |||
| 13 | Hex bolt with washer | M6X12-Z3-1 | 1 | 09/1987 | 07119915033 | $1.07 | Shop at ECS Tuning | |||
| 14 | Bracket, control unit | 1 | 09/1987 | 65711373332 | $7.50 | ENDED | Shop at ECS Tuning | |||
| 16 | Wiring set cruise control | 1 | 09/1987 | 61121385082 | $62.78 | ENDED | Shop at ECS Tuning | |||
| 17 | Bridging cable f clutch switch | 1 | 09/1987 | 61121385400 | $25.88 | Shop at ECS Tuning | ||||
| 18 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 09/1987 | 07119907939 | $0.11 | Shop at ECS Tuning | |||
| 19 | Bracket f Bowden cable | 1 | 09/1987 | 35411120354 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 20 | Plug housing | 1 | 09/1987 | 62111372218 | $7.86 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
