Cruise control for BMW 7 Series E23 732i (1982)

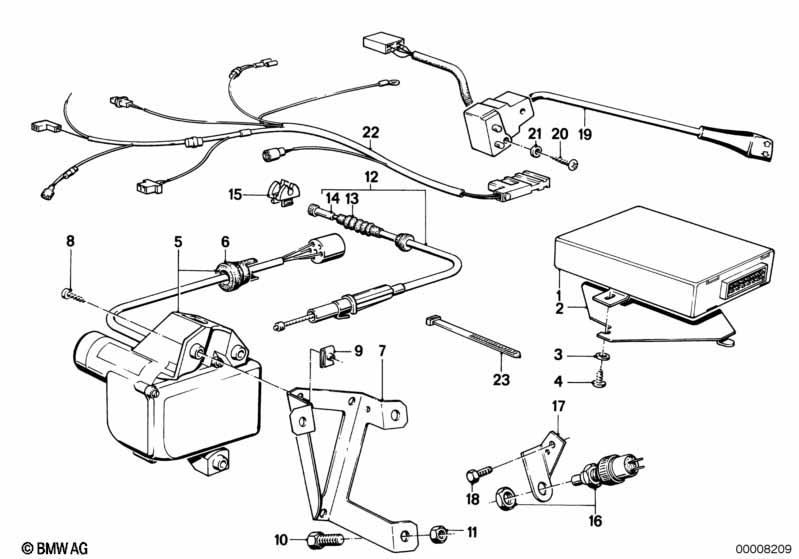

This Cruise control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit f cruise control | 1 | 09/1981 | 09/1982 | 65711371395 | $839.79 | ENDED | Shop at ECS Tuning | ||
| 02 | Holder | 1 | 09/1981 | 09/1982 | 65711362471 | $17.30 | ENDED | Shop at ECS Tuning | ||
| 03 | Washer | A3,2 | 1 | 09/1981 | 07119931015 | $0.09 | Shop at ECS Tuning | |||
| 05 | Actuator | 1 | 09/1981 | 65711370159 | $421.39 | Shop at ECS Tuning | ||||
| 06 | Cable grommet | 1 | 09/1981 | 61131361918 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 09/1981 | 41141904430 | $2.46 | ENDED | Shop at ECS Tuning | |||
| 08 | Fillister head self-tapping screw | ST4,2X16-Z2 | 3 | 09/1981 | 07119907948 | $0.18 | Shop at ECS Tuning | |||
| 09 | Body nut | ST4,2-1-ZNS3 | 3 | 09/1981 | 07129904220 | $0.09 | Shop at ECS Tuning | |||
| 10 | Hex bolt | M5X14-8.8-ZNNIV | 3 | 09/1981 | 07119904269 | $0.36 | Shop at ECS Tuning | |||
| 11 | Hex nut | M5-8-ZNNIV SI | 3 | 09/1981 | 07119905729 | Shop at ECS Tuning | ||||
| 12 | Bowden cable | 1 | 09/1981 | 65711371419 | $23.62 | Shop at ECS Tuning | ||||
| 13 | Cup | 1 | 09/1981 | 32732325866 | $3.45 | Shop at ECS Tuning | ||||
| 14 | Knurled head nut | M3 | 1 | 09/1981 | 35411156139 | $2.02 | Shop at ECS Tuning | |||
| 15 | Bearing accelator bowden cable | SCHWARZ | 1 | 09/1981 | 13541747519 | $0.58 | Shop at ECS Tuning | |||
| 16 | Clutch switch | 1 | 09/1981 | 61311362809 | $33.61 | Shop at ECS Tuning | ||||
| 17 | Holder | 1 | 09/1981 | 65711371358 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 09/1981 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 19 | Switch | (DEUTSCH) | 1 | 09/1981 | 09/1982 | 61311363475 | $37.31 | ENDED | Shop at ECS Tuning | |
| 19 | Switch | (ENGLISH) | 1 | 09/1981 | 09/1982 | 61311363560 | $58.31 | ENDED | Shop at ECS Tuning | |
| 20 | Fillister head screw | M5X16 | 1 | 09/1981 | 07119906415 | $0.16 | Shop at ECS Tuning | |||
| 21 | Wave washer | B5 | 1 | 09/1981 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| 22 | Wiring set | 1 | 09/1981 | 09/1982 | 61121371511 | ENDED | Shop at ECS Tuning | |||
| 23 | Cable tie | L=292MM/B=4,8MM | X | 09/1981 | 61131377134 | $0.77 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
