Cruise control for BMW 6 Series E24 633CSi (1984)

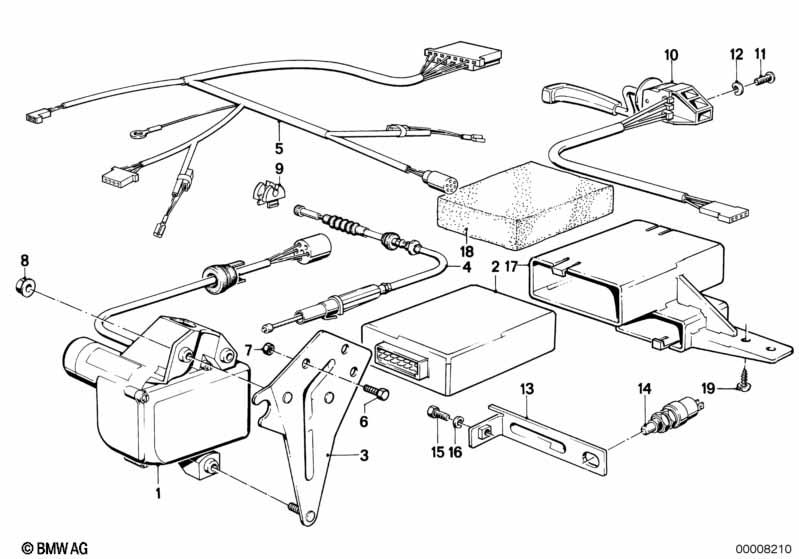

This Cruise control technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator | 1 | 09/1982 | 06/1987 | 65711371409 | $330.26 | ENDED | Shop at ECS Tuning | ||
| 02 | Control unit f cruise control | 1 | 09/1982 | 09/1987 | 65711386189 | $507.65 | ENDED | Shop at ECS Tuning | ||
| 03 | Supporting plate | 1 | 09/1982 | 06/1987 | 65711904455 | $3.19 | ENDED | Shop at ECS Tuning | ||
| 04 | Bowden cable | 1 | 09/1982 | 06/1987 | 65711371162 | $30.90 | ENDED | Shop at ECS Tuning | ||
| 05 | Wiring set cruise control | 1 | 09/1982 | 06/1987 | 61121371543 | ENDED | Shop at ECS Tuning | |||
| 06 | Hex bolt | M5X14-8.8-ZNNIV | 3 | 09/1982 | 06/1987 | 07119904269 | $0.36 | Shop at ECS Tuning | ||
| 07 | Hex nut | M5-8-ZNNIV SI | 3 | 09/1982 | 06/1987 | 07119905729 | Shop at ECS Tuning | |||
| 08 | Hex nut with plate | M5 | 3 | 09/1982 | 06/1987 | 63259128043 | $0.72 | Shop at ECS Tuning | ||
| 09 | Bearing accelator bowden cable | SCHWARZ | 1 | 09/1982 | 06/1987 | 13541747519 | $0.58 | Shop at ECS Tuning | ||
| 10 | Cruise control switch | (ENGLISH) | 1 | 09/1982 | 09/1987 | 61311377246 | $176.66 | ENDED | Shop at ECS Tuning | |
| 11 | Fillister head screw | M5X8-Z3 | 1 | 09/1982 | 06/1987 | 07119906822 | $0.18 | Shop at ECS Tuning | ||
| 12 | Wave washer | B5 | 1 | 09/1982 | 06/1987 | 07119932098 | $0.38 | Shop at ECS Tuning | ||
| 13 | Clutch switch bracket | 1 | 09/1982 | 06/1987 | 65711370487 | $3.68 | Shop at ECS Tuning | |||
| 18 | Base | 1 | 09/1982 | 06/1987 | 65711373036 | $1.81 | ENDED | Shop at ECS Tuning | ||
| 19 | Fillister head self-tapping screw | ST4,8X16-Z1 | 2 | 09/1982 | 06/1987 | 07119907925 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
