Cruise control for BMW 5 Series E28 535i (1990)

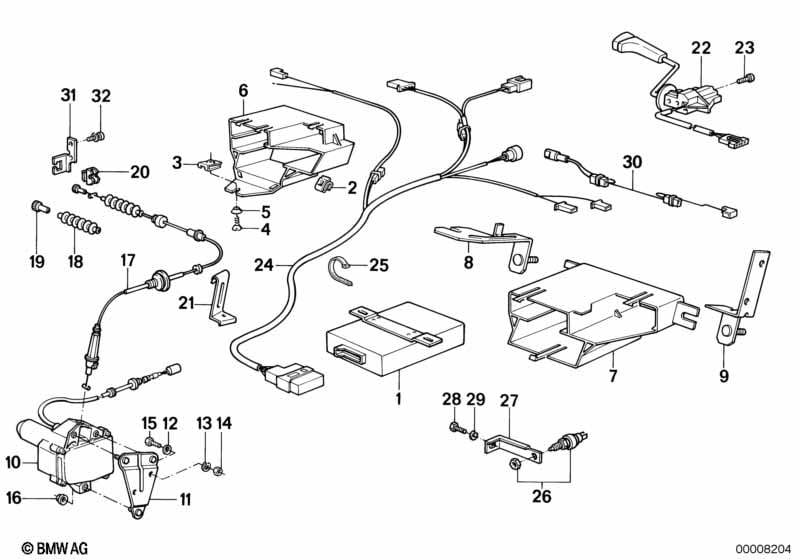

This Cruise control technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit f cruise control | 1 | 65711386189 | $507.65 | ENDED | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 65711374589 | $13.43 | Shop at ECS Tuning | |||||
| 08 | Bracket inner | 1 | 65711373947 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bracket exterior | 1 | 65711373949 | ENDED | Shop at ECS Tuning | |||||
| 10 | Actuator | 1 | 65711370159 | $421.39 | Shop at ECS Tuning | |||||
| 11 | Actuator supporting plate | 1 | 41141902591 | $4.05 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M5X14 | 2 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 16 | Hex nut with plate | M5 | 3 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 17 | Bowden cable | 1 | 65711370164 | $37.79 | ENDED | Shop at ECS Tuning | ||||
| 18 | Cup | 1 | 32732325866 | $3.45 | Shop at ECS Tuning | |||||
| 19 | Knurled head nut | M3 | 1 | 35411156139 | $2.02 | Shop at ECS Tuning | ||||
| 20 | Bearing accelator bowden cable | SCHWARZ | 1 | 13541747519 | $0.58 | Shop at ECS Tuning | ||||
| 21 | Bracket | 1 | 65711369784 | $2.04 | ENDED | Shop at ECS Tuning | ||||
| 22 | Switch | (ENGLISH) | 1 | 61311377231 | $93.82 | Shop at ECS Tuning | ||||
| 23 | Fillister head screw | M5X16 | 1 | 07119906415 | $0.16 | Shop at ECS Tuning | ||||
| 24 | Wiring set cruise control | 1 | 61121375845 | ENDED | Shop at ECS Tuning | |||||
| 25 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 26 | Clutch switch | 1 | 61311362809 | $33.61 | Shop at ECS Tuning | |||||
| 27 | Holder | 1 | 65711372007 | ENDED | Shop at ECS Tuning | |||||
| 28 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 29 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 29 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 29 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Cruise control?
- This technical diagram illustrates the Cruise control within the Distance Systems, Cruise Control group for the 5 Series E28 535i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Control unit f cruise control (Part #65711386189).
- Which models use the hardware listed in this Cruise control?
- The hardware and components featured in the Cruise control are specific to the 5 Series E28 535i produced during 1990. These technical specifications ensure that parts like the Control unit f cruise control (65711386189) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cruise control assembly?
- Each item in the Cruise control corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Control unit f cruise control by locating its position on the schematic, which then links to the official BMW part number 65711386189 for the Distance Systems, Cruise Control section.
