Cruise control/actuator for BMW 7 Series E23 728 (1979)

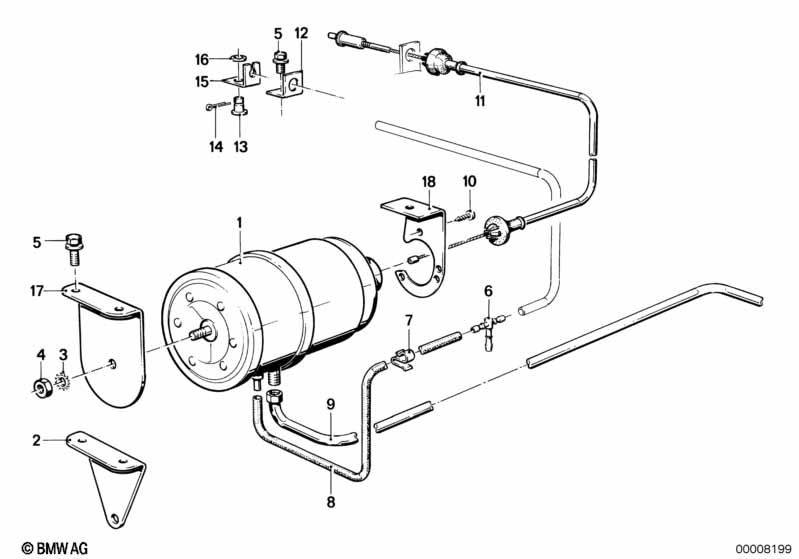

This Cruise control/actuator technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Actuator | 1 | 01/1982 | 65711364909 | $545.72 | ENDED | Shop at ECS Tuning | |||
| 02 | Holder | 1 | 10/1980 | 65711364386 | ENDED | Shop at ECS Tuning | ||||

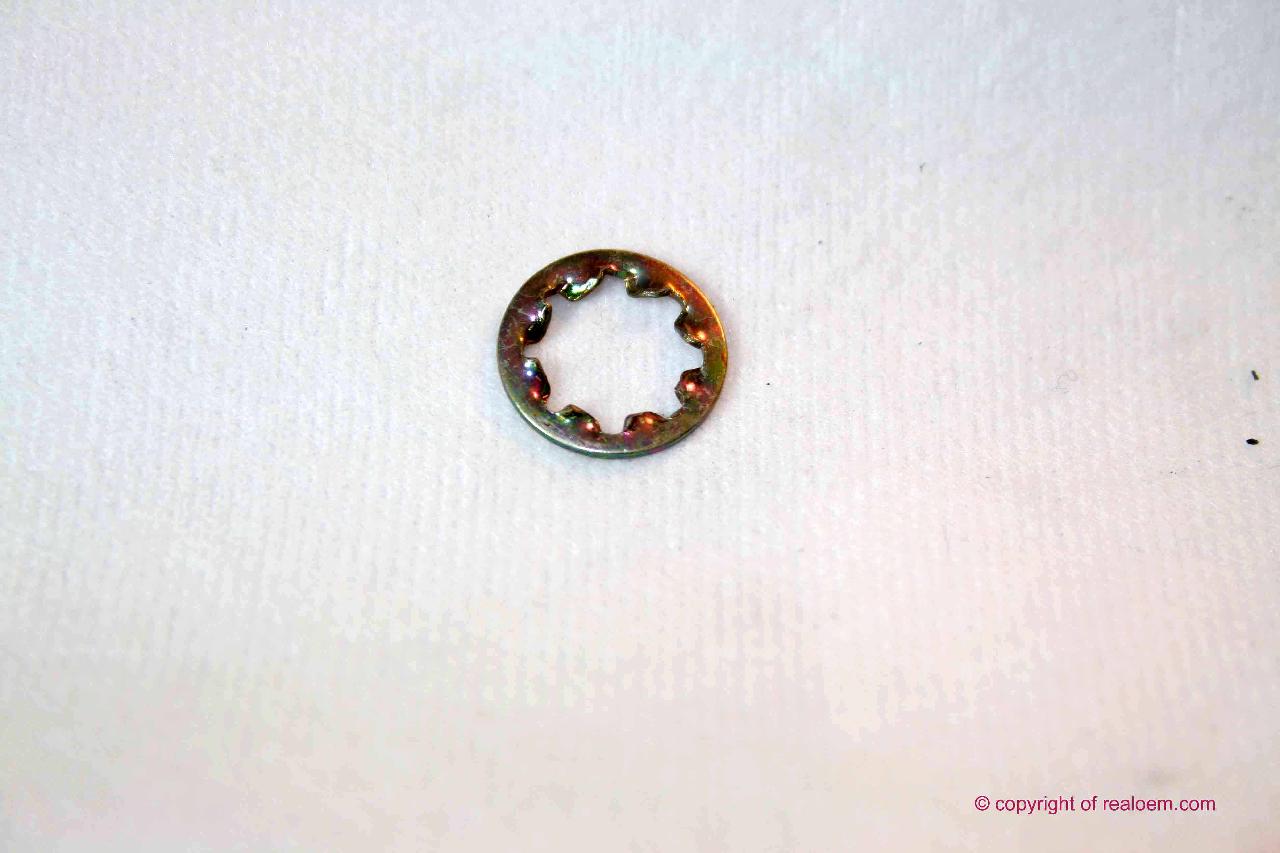

| 03 | Tooth washer | J8,2 | 1 | 01/1982 | 07119936207 | $0.07 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNS3 | 1 | 01/1982 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 04 | Hex nut | M8-8-ZNNIV SI | 1 | 01/1982 | 07119905515 | $0.16 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M6X12-Z3-2 | 2 | 01/1982 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | ||
| 06 | T-Connector | 1 | 01/1982 | 11731261489 | $0.56 | Shop at ECS Tuning | ||||
| 07 | Cable clamp | D=8/B=1,5 | 1 | 01/1982 | 61131354726 | $0.42 | Shop at ECS Tuning | |||
| 08 | Vacuum hose blue | 3,3X1,8 | X | 01/1982 | 11747797082 | $17.14 | Shop at ECS Tuning | |||
| 09 | Pipe | 1 | 06/1981 | 65711365137 | ENDED | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,2X13 | 3 | 01/1982 | 07119907946 | $0.20 | Shop at ECS Tuning | |||
| 11 | Bowden cable | 1 | 10/1980 | 65711363561 | ENDED | Shop at ECS Tuning | ||||
| 12 | Support | 1 | 01/1982 | 65711364385 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 13 | Pin | H11X10-ZN | 1 | 01/1982 | 07119940321 | ENDED | Shop at ECS Tuning | |||
| 14 | Split pin | 1,6X8 | 1 | 01/1982 | 07119945071 | ENDED | Shop at ECS Tuning | |||
| 15 | Bow | 1 | 10/1980 | 65711364411 | ENDED | Shop at ECS Tuning | ||||
| 16 | Washer | 10X5,3X1-200 HV | 1 | 01/1982 | 07119904206 | Shop at ECS Tuning | ||||
| 16 | Washer | 5.3-140 HV-ZNS | 1 | 01/1982 | 07119936439 | $0.40 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
