Park Distance Control (PDC) for BMW 5 Series E34 525td (1996)

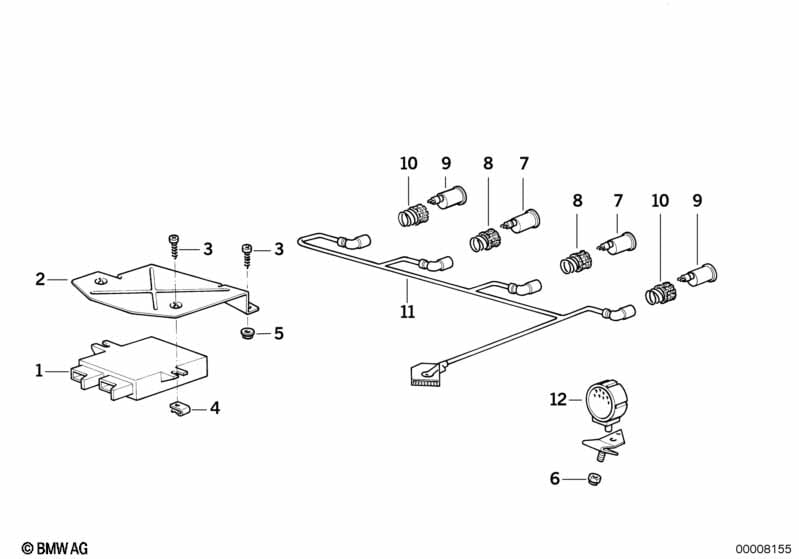

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit PDC | 1 | 02/1993 | 66218363092 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket control unit PDC | 1 | 02/1993 | 61138365948 | Shop at ECS Tuning | |||||
| 03 | Fillister head self-tapping screw | ST4,8X13 | 4 | 02/1993 | 07119907786 | $0.11 | Shop at ECS Tuning | |||
| 06 | Hex nut | M6-8-ZNS3 | 2 | 02/1993 | 07129904876 | $0.16 | Shop at ECS Tuning | |||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 2 | 02/1993 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 07 | Ultrasonic sensor, rear | 2 | 02/1993 | 66218360073 | $129.88 | Shop at ECS Tuning | ||||
| 08 | Bracket ultrasonic sensor | 2 | 02/1993 | 66218360077 | $8.42 | Shop at ECS Tuning | ||||
| 09 | Ultrasonic sensor | 2 | 02/1993 | 66211382252 | $129.88 | Shop at ECS Tuning | ||||
| 10 | Bracket ultrasonic sensor | 2 | 02/1993 | 66211382256 | $10.25 | Shop at ECS Tuning | ||||
| 11 | Wiring set PDC | 1 | 02/1993 | 61128359190 | $170.75 | Shop at ECS Tuning | ||||
| 12 | Trigger contact PDC | 1 | 66218363091 | $51.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
