Park Distance Control (PDC) for BMW 3 Series E36 323i (1998)

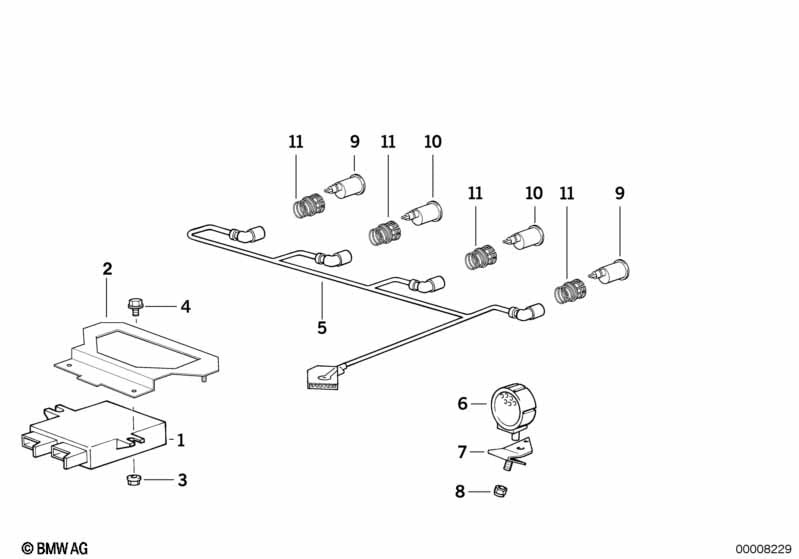

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit PDC | 1 | 66218381089 | $232.54 | Shop at ECS Tuning | |||||
| 02 | Bracket control unit PDC | 1 | 61138366186 | $8.04 | Shop at ECS Tuning | |||||
| 03 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X10-Z1 | 2 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Wiring set PDC | 1 | 61128357822 | $170.75 | ENDED | Shop at ECS Tuning | ||||
| 06 | Trigger contact PDC | 1 | 66218363091 | $51.68 | Shop at ECS Tuning | |||||
| 07 | Bracket f trigger contact PDC | 1 | 66218366363 | $5.91 | ENDED | Shop at ECS Tuning | ||||
| 09 | Ultrasonic sensor PDC passive | 2 | 01/1995 | 66218352137 | $129.88 | Shop at ECS Tuning | ||||
| 10 | Ultrasonic sensor PDC passive | 2 | 01/1995 | 66218352137 | $129.88 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Park Distance Control (PDC)?
- This technical diagram illustrates the Park Distance Control (PDC) within the Distance Systems, Cruise Control group for the 3 Series E36 323i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Control unit PDC (Part #66218381089).
- Which models use the hardware listed in this Park Distance Control (PDC)?
- The hardware and components featured in the Park Distance Control (PDC) are specific to the 3 Series E36 323i produced during 1998. These technical specifications ensure that parts like the Control unit PDC (66218381089) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Park Distance Control (PDC) assembly?
- Each item in the Park Distance Control (PDC) corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Control unit PDC by locating its position on the schematic, which then links to the official BMW part number 66218381089 for the Distance Systems, Cruise Control section.
