ACC-Sensor for BMW 5 Series E60 520d (2007)

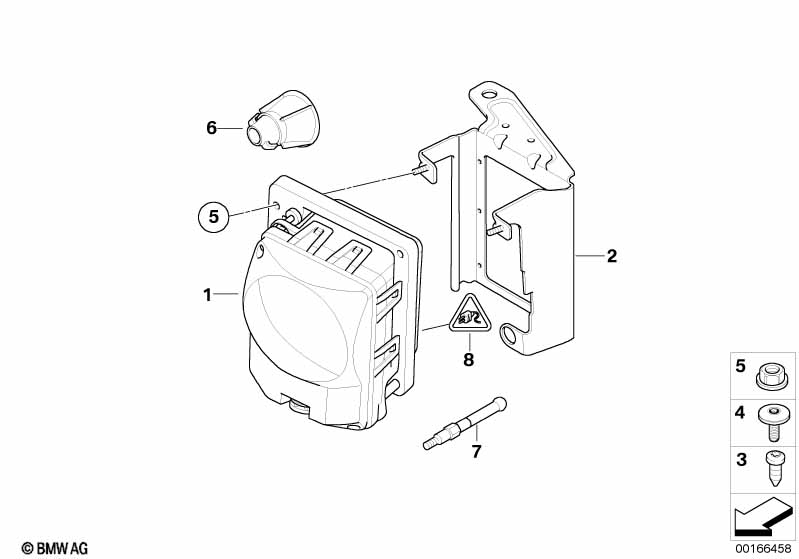

This ACC-Sensor technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | ACC-Sensor 2 | 1 | 03/2005 | 03/2007 | 66316779874 | $2341.37 | Shop at ECS Tuning | |||
| 02 | Bracket for sensor, LRR | 1 | 03/2005 | 03/2007 | 66316777310 | $13.00 | Shop at ECS Tuning | |||
| 03 | Hex nut | AM5-8-ZNS3 | 2 | 03/2005 | 03/2007 | 07129902975 | $0.36 | Shop at ECS Tuning | ||
| 04 | Torx bolt | ISA M6X18 SW | 1 | 03/2007 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 06 | Adjustment equipment | 3 | 03/2005 | 03/2007 | 66316762520 | $1.90 | Shop at ECS Tuning | |||
| 07 | Repair kit | 1 | 03/2007 | 66316786711 | $47.25 | ENDED | Shop at ECS Tuning | |||
| 08 | Universal socket housing uncoded | 8 POL. | 1 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0,5-0,75 MM²/AU | X | 61131393726 | $0.68 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 520d ACC-Sensor?
- This technical diagram illustrates the ACC-Sensor within the Distance Systems, Cruise Control group for the 5 Series E60 520d produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the ACC-Sensor 2 (Part #66316779874).
- Which models use the hardware listed in this ACC-Sensor?
- The hardware and components featured in the ACC-Sensor are specific to the 5 Series E60 520d produced during 2007. These technical specifications ensure that parts like the ACC-Sensor 2 (66316779874) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ACC-Sensor assembly?
- Each item in the ACC-Sensor corresponds to the numbered list below the illustration. For the 5 Series E60 520d, you can identify the ACC-Sensor 2 by locating its position on the schematic, which then links to the official BMW part number 66316779874 for the Distance Systems, Cruise Control section.
