Park Distance Control (PDC) for BMW 6 Series E64 645Ci (2005)

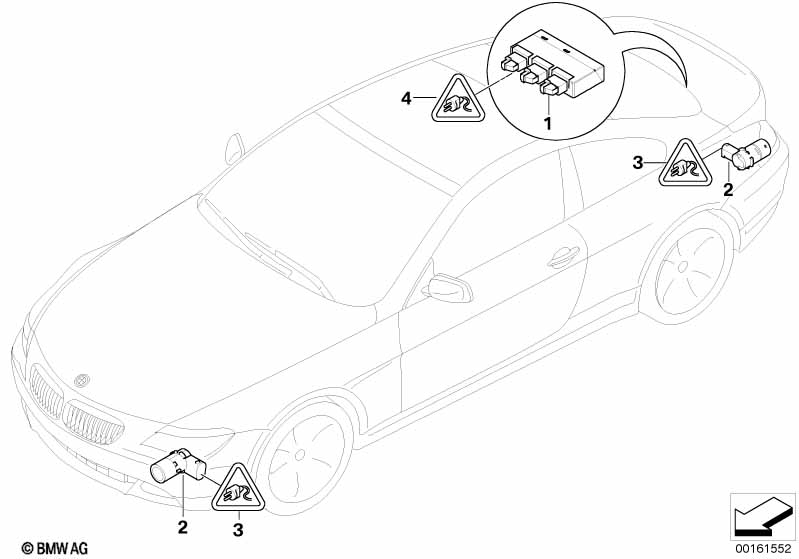

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important: Never paint ultrasonic converters as painting could result in malfunctions and failure. Ultrasonic converters painted in the field are not subject to any warranty, including liability for 6 collateral damage. |
|||||||||
| 01 | Control unit PDC | 1 | 03/2008 | 66209145158 | $284.21 | Shop at ECS Tuning | ||||
| 02 | Ultrasonic sensor, color code | 8 | 66202180149 | Shop at ECS Tuning | ||||||
| Important notice: Control number for Individual and unlisted colors. |
||||||||||
| For vehicles with toledo-blau metallic |
M482=Yes |
|||||||||
| 02 | Ultrasonic sensor, Toledo Blue | M482 | 8 | 66206989095 | Shop at ECS Tuning | |||||
| For vehicles with Tiefsee-blau metallic |
WA76=Yes |
|||||||||
| 02 | Ultrasonic sensor, deep-sea blue | WA76 | 8 | 66209124161 | Shop at ECS Tuning | |||||
| For vehicles with blue-onyx metallic |
WS11=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue Onyx | WS11 | 8 | 66202240966 | +core | Shop at ECS Tuning | ||||
| For vehicles with chiaretto-rot metallic |
M894=Yes |
|||||||||
| 02 | Ultrasonic sensor, Chiaretto Red | M894 | 8 | 66206989101 | +core | Shop at ECS Tuning | ||||
| For vehicles with black 2 |
U668=Yes |
|||||||||
| 02 | Ultrasonic sensor, Black 2 | U668 | 8 | 66206989105 | Shop at ECS Tuning | |||||
| For vehicles with olivin metallic |
M349=Yes |
|||||||||
| 02 | Ultrasonic sensor, Olivine | M349 | 8 | 66206989079 | Shop at ECS Tuning | |||||
| For vehicles with astro-black metallic |
WA25=Yes |
|||||||||
| 02 | Ultrasonic sensor, Astro Black | WA25 | 8 | 66202240840 | +core | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 02 | Ultrasonic sensor, Stratus | M440 | 8 | 66206989085 | Shop at ECS Tuning | |||||
| For vehicles with Monacoblau metallic |
WA35=Yes |
|||||||||
| 02 | Ultrasonic sensor, Monaco Blue | WA35 | 8 | 66206989234 | Shop at ECS Tuning | |||||
| For vehicles with Black-eye purple metallic |
WA24=Yes |
|||||||||
| 02 | Ultrasonic sensor, black-eye purple | WA24 | 8 | 66202240953 | +core | Shop at ECS Tuning | ||||
| For vehicles with cool-blue metallic |
WA27=Yes |
|||||||||
| 02 | Ultrasonic sensor, Cool Blue | WA27 | 8 | 66202240945 | +core | Shop at ECS Tuning | ||||
| For vehicles with hot-orange metallic |
WA26=Yes |
|||||||||
| 02 | Ultrasonic sensor, Hot Orange | WA26 | 8 | 66202240943 | +core | Shop at ECS Tuning | ||||
| For vehicles with sepang-bronze metallic |
WA32=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sepang Bronze | WA32 | 8 | 66206989212 | Shop at ECS Tuning | |||||
| For vehicles with barbera-rot metallic |
WA39=Yes |
|||||||||
| 02 | Ultrasonic sensor, Barbera Red | WA39 | 8 | 66206989236 | Shop at ECS Tuning | |||||
| For vehicles with royal-grey metallic |
WA48=Yes |
|||||||||
| 02 | Ultrasonic sensor, Royal Gray | WA48 | 8 | 66202240962 | +core | Shop at ECS Tuning | ||||
| For vehicles with feuer-rot 2 |
U375=Yes |
|||||||||
| 02 | Ultrasonic sensor, Fire Red | U375 | 8 | 66206989125 | Shop at ECS Tuning | |||||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Silver | M354 | 8 | 66206989081 | Shop at ECS Tuning | |||||
| For vehicles with interlagos-blau metallic |
WA30=Yes |
|||||||||
| 02 | Ultrasonic sensor, Interlagos Blue | WA30 | 8 | 66206989210 | Shop at ECS Tuning | |||||
| For vehicles with silverstone 2 metallic |
WA29=Yes |
|||||||||
| 02 | Ultrasonic sensor, Silver Stone | WA29 | 8 | 66206989209 | Shop at ECS Tuning | |||||
| For vehicles with indianapolis-rot metallic |
WA31=Yes |
|||||||||
| 02 | Ultrasonic sensor, Indianapolis Red | WA31 | 8 | 66206989211 | Shop at ECS Tuning | |||||
| For vehicles with british-racing-green metallic |
WA67=Yes |
|||||||||
| 02 | Ultrasonic sensor, British-Racing Green | WA67 | 8 | 66207964709 | Shop at ECS Tuning | |||||
| For vehicles with imola-rot 2 |
U405=Yes |
|||||||||
| 02 | Ultrasonic sensor, Imola Red | U405 | 8 | 66206989129 | Shop at ECS Tuning | |||||
| For vehicles with Oxford-green 2 |
M430=Yes |
|||||||||
| 02 | Ultrasonic sensor, Oxford Green 2 | M430 | 8 | 66206989083 | Shop at ECS Tuning | |||||
| For vehicles with mocca-braun metallic |
M891=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mocha Brown | M891 | 8 | 66206989097 | Shop at ECS Tuning | |||||
| For vehicles with sparkling-silver metallic |
WA60=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sparkling Silver | WA60 | 8 | 66202240961 | +core | Shop at ECS Tuning | ||||
| For vehicles with sterling-grau metallic |
M472=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sterling Gray | M472 | 8 | 66206989089 | Shop at ECS Tuning | |||||
| For vehicles with titan-grau metallic |
M892=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Gray | M892 | 8 | 66206989099 | Shop at ECS Tuning | |||||
| For vehicles with platin-grey metallic |
WA68=Yes |
|||||||||
| 02 | Ultrasonic sensor, Platinum Gray | WA68 | 8 | 66209124158 | Shop at ECS Tuning | |||||
| For vehicles with le-mans-blau |
M381=Yes |
|||||||||
| 02 | Ultrasonic sensor, Le Mans Blue | M381 | 8 | 66207964084 | Shop at ECS Tuning | |||||
| For vehicles with neptun-blau metallic |
WA85=Yes |
|||||||||
| 02 | Ultrasonic sensor, Neptune Blue | WA85 | 8 | 66209124164 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with black-sapphire metallic |
M475=Yes |
|||||||||
| 02 | Ultrasonic sensor, Black Sapphire | M475 | 8 | 66206989091 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz |
M416=Yes |
|||||||||
| 02 | Ultrasonic sensor, Carbon Black | M416 | 8 | 66207964088 | Shop at ECS Tuning | |||||
| For vehicles with orient-blau |
M317=Yes |
|||||||||
| 02 | Ultrasonic sensor, Orient Blue | M317 | 8 | 66206989077 | +core | Shop at ECS Tuning | ||||
| For vehicles with silber-grau metallic |
WA08=Yes |
|||||||||
| 02 | Ultrasonic sensor, Silver/Gray | WA08 | 8 | 66206989111 | Shop at ECS Tuning | |||||
| For vehicles with amethyst-grau |
WA09=Yes |
|||||||||
| 02 | Ultrasonic sensor, Amethyst Gray | WA09 | 8 | 66206989113 | Shop at ECS Tuning | |||||
| For vehicles with hyper-blue metallic |
WA28=Yes |
|||||||||
| 02 | Ultrasonic sensor, Hyper Blue | WA28 | 8 | 66202240952 | +core | Shop at ECS Tuning | ||||
| For vehicles with atlantic-blau |
WA13=Yes |
|||||||||
| 02 | Ultrasonic sensor, Atlantic Blue | WA13 | 8 | 66206989115 | Shop at ECS Tuning | |||||
| For vehicles with titangrau II metallic |
WA36=Yes |
|||||||||
| 02 | Ultrasonic sensor, Titanium Gray II | WA36 | 8 | 66206989136 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 8 | 66206989103 | Shop at ECS Tuning | |||||
| For vehicles with tief-grün metallic |
WA43=Yes |
|||||||||
| 02 | Ultrasonic sensor, Deep Green | WA43 | 8 | 66206989232 | Shop at ECS Tuning | |||||
| For vehicles with lightning-blue metallic |
WA63=Yes |
|||||||||
| 02 | Ultrasonic sensor, Lightning Blue | WA63 | 8 | 66202240967 | +core | Shop at ECS Tuning | ||||
| For vehicles with schiefer-grün metallic |
M449=Yes |
|||||||||
| 02 | Ultrasonic sensor, Slate Green | M449 | 8 | 66206989086 | +core | Shop at ECS Tuning | ||||
| For vehicles with mystic-blau metallic |
WA07=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mystic Blue | WA07 | 8 | 66206989109 | Shop at ECS Tuning | |||||
| For vehicles with mineral-silber |
WA14=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral Silver | WA14 | 8 | 66206989116 | Shop at ECS Tuning | |||||
| For vehicles with blue-water metallic |
M896=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue Water | M896 | 8 | 66206989123 | Shop at ECS Tuning | |||||
| For vehicles with space-grey metallic |
WA52=Yes |
|||||||||
| 02 | Ultrasonic sensor, Space Gray | WA52 | 8 | 66209124162 | Shop at ECS Tuning | |||||
| For vehicles with platin-bronze metallic |
WA53=Yes |
|||||||||
| 02 | Ultrasonic sensor, Platinum Bronze | WA53 | 8 | 66209124163 | Shop at ECS Tuning | |||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 02 | Ultrasonic sensor, Topaz Blue | M364 | 8 | 66202241112 | +core | Shop at ECS Tuning | ||||
| 03 | Universal socket housing uncoded | 3 POL. | X | 07/2010 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 07/2010 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 07/2010 | 61130056961 | Shop at ECS Tuning | ||||
| 03 | Rep. kit for socket housing | 3 POL. | X | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 04 | Rep. kit for socket housing | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
| 04 | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
