Park Distance Control (PDC) for BMW 1 Series E81 118d

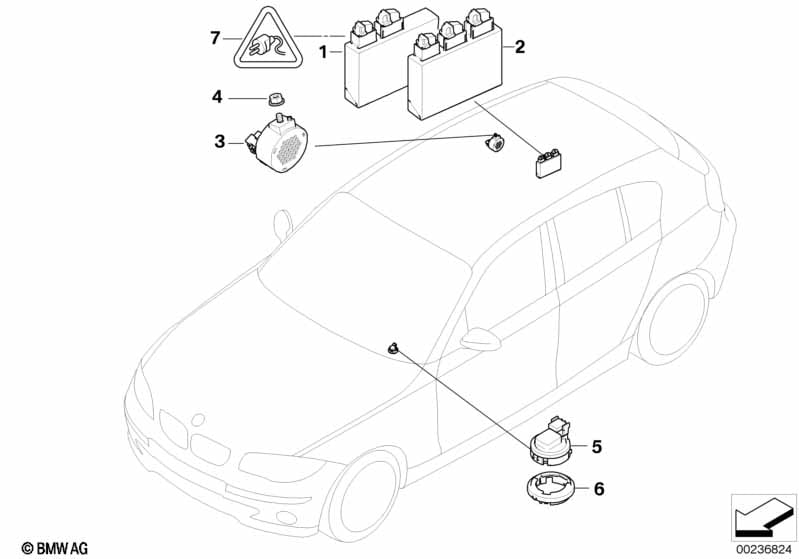

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 1 Series E81 118d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Park Distance Control (PDC), rear |
S507A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66209252639 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Radio BMW Professional |
S507A=Yes S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66209252639 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Navigation system Business and Navigation system Professional |
S507A=Yes S606A=Yes S609A=No |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66209252639 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Navigation system Business and Navigation system Professional |
S507A=Yes S606A=No S609A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66209252639 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC), rear and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S507A=Yes S667A=Yes S662A=Yes S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66206982400 | $258.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S507A=Yes S667A=Yes S662A=No S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66206982400 | $258.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S507A=Yes S667A=No S662A=Yes S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66206982400 | $258.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC), rear and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S507A=Yes S667A=No S662A=No S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 09/2007 | 66206982400 | $258.37 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66209252638 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S508A=Yes S667A=Yes S662A=Yes S663A=No |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66206982401 | $284.21 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S508A=Yes S667A=Yes S662A=No S663A=No |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66206982401 | $284.21 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S508A=Yes S667A=No S662A=Yes S663A=No |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66206982401 | $284.21 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Radio BMW Audio and Radio BMW Business CD and Radio BMW Professional |
S508A=Yes S667A=No S662A=No S663A=No |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66206982401 | $284.21 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S508A=Yes S606A=Yes S609A=No S663A=No |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66209252638 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S508A=Yes S606A=No S609A=Yes S663A=No |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66209252638 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S508A=Yes S606A=No S609A=No S663A=Yes |
|||||||||
| 02 | Control unit PDC | 1 | 09/2007 | 66209252638 | Shop at ECS Tuning | |||||
| 03 | Trigger contact PDC | 1 | 66206969140 | $51.68 | Shop at ECS Tuning | |||||
| For vehicles with Radio BMW Professional |
S663A=No |
|||||||||
| 03 | Trigger contact PDC | 1 | 66216903102 | $51.68 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6-8-ZNFE SW | 1 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Trigger contact PDC | 1 | 66206969139 | $51.68 | Shop at ECS Tuning | |||||
| 06 | Adapter PDC speaker | 1 | 66216938079 | $2.00 | Shop at ECS Tuning | |||||
| 07 | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 18 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| 07 | Rep. kit for socket housing | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 12 | 61136931880 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
