Park Distance Control (PDC) for BMW 3 Series E90 318i (2008)

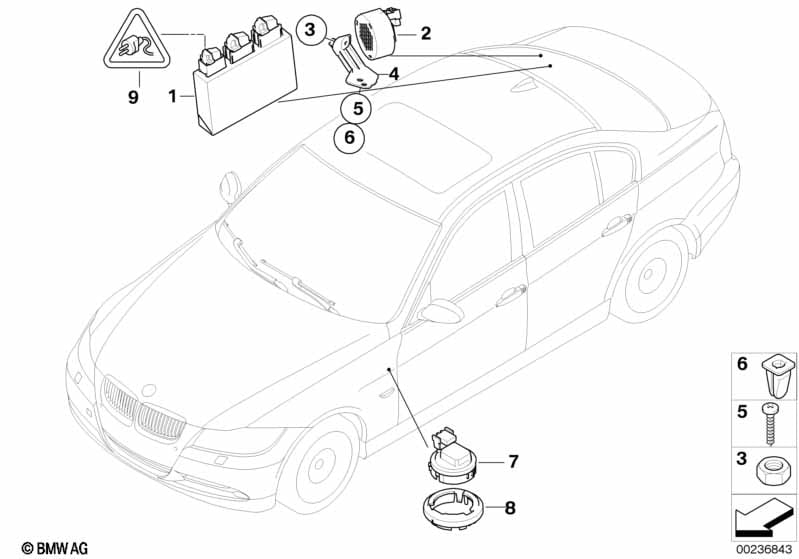

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252638 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=Yes S609A=Yes S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=Yes S609A=Yes S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=Yes S609A=No S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=Yes S609A=No S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=No S609A=Yes S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=No S609A=Yes S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=No S609A=No S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=Yes S606A=No S609A=No S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=Yes S609A=Yes S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=Yes S609A=Yes S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=Yes S609A=No S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=Yes S609A=No S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=No S609A=Yes S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=No S609A=Yes S663A=No |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| For vehicles with Park Distance Control (PDC), rear and On-board monitor with TV and Navigation system Business and Navigation system Professional and Radio BMW Professional |
S507A=Yes S602A=No S606A=No S609A=No S663A=Yes |
|||||||||
| 01 | Control unit PDC | 1 | 66209252639 | Shop at ECS Tuning | ||||||
| 02 | Trigger contact PDC | 1 | 66206969140 | $51.68 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M6-8-ZNFE SW | 1 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Bracket, loudspeaker PDC | 1 | 66206938777 | $0.89 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | 1 | 51417059617 | $0.39 | Shop at ECS Tuning | |||||
| 06 | Expanding nut | ST 4.8 WEISS | 1 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 07 | Trigger contact PDC | 1 | 66206969139 | $51.68 | Shop at ECS Tuning | |||||
| 08 | Adapter PDC speaker | 1 | 66216938079 | $2.00 | Shop at ECS Tuning | |||||
| 09 | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
| 09 | Rep. kit for socket housing | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep. kit for socket housing | 12 POL. | 1 | 61132471237 | Shop at ECS Tuning | |||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 1 | 61136931880 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 318i Park Distance Control (PDC)?
- This technical diagram illustrates the Park Distance Control (PDC) within the Distance Systems, Cruise Control group for the 3 Series E90 318i produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Control unit PDC (Part #66209252638).
- Which models use the hardware listed in this Park Distance Control (PDC)?
- The hardware and components featured in the Park Distance Control (PDC) are specific to the 3 Series E90 318i produced during 2008. These technical specifications ensure that parts like the Control unit PDC (66209252638) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Park Distance Control (PDC) assembly?
- Each item in the Park Distance Control (PDC) corresponds to the numbered list below the illustration. For the 3 Series E90 318i, you can identify the Control unit PDC by locating its position on the schematic, which then links to the official BMW part number 66209252638 for the Distance Systems, Cruise Control section.
