ACC-Sensor/Dynamic cruise control for BMW 3 Series E90 LCI 320d (2010)

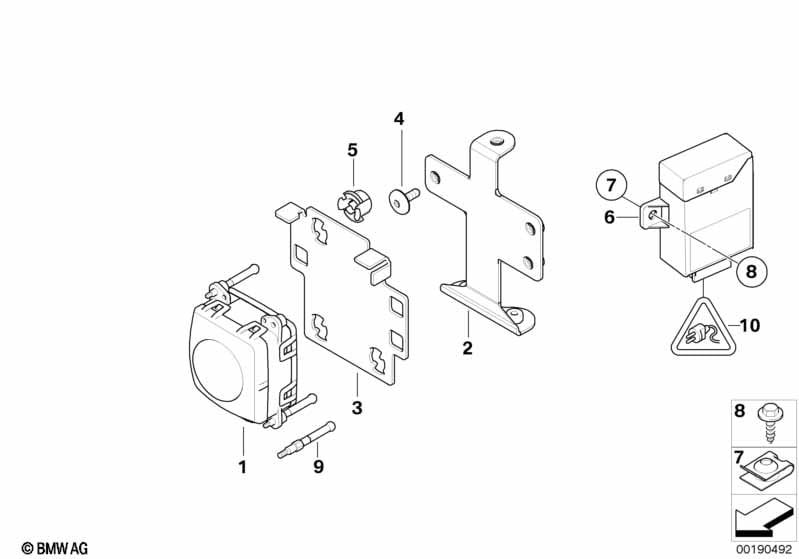

This ACC-Sensor/Dynamic cruise control technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 01 | ACC-Sensor | 1 | 66316777883 | $2341.37 | Shop at ECS Tuning | |||||
| 02 | Bracket f ACC | 1 | 66316769132 | $17.80 | Shop at ECS Tuning | |||||
| 03 | Bracket f ACC | 1 | 66316769133 | $6.43 | Shop at ECS Tuning | |||||
| 10 | Universal socket housing uncoded | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 18 POL. | 1 | 61132471241 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320d ACC-Sensor/Dynamic cruise control?
- This technical diagram illustrates the ACC-Sensor/Dynamic cruise control within the Distance Systems, Cruise Control group for the 3 Series E90 LCI 320d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the ACC-Sensor (Part #66316777883).
- Which models use the hardware listed in this ACC-Sensor/Dynamic cruise control?
- The hardware and components featured in the ACC-Sensor/Dynamic cruise control are specific to the 3 Series E90 LCI 320d produced during 2010. These technical specifications ensure that parts like the ACC-Sensor (66316777883) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ACC-Sensor/Dynamic cruise control assembly?
- Each item in the ACC-Sensor/Dynamic cruise control corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320d, you can identify the ACC-Sensor by locating its position on the schematic, which then links to the official BMW part number 66316777883 for the Distance Systems, Cruise Control section.
