Ignition lock of remote control for BMW 5 Series E60 LCI 525i (2009)

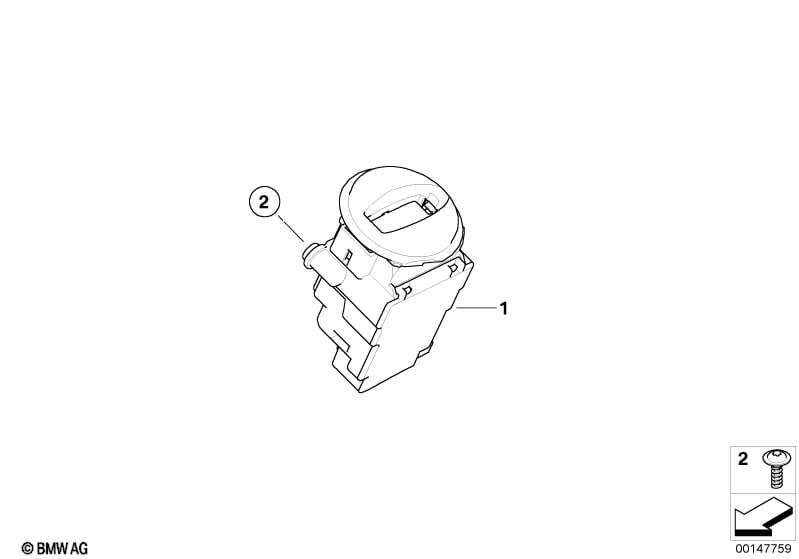

This Ignition lock of remote control technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ignition lock of remote control | 1 | 09/2005 | 66129172159 | $71.23 | Shop at ECS Tuning | ||||
| 02 | Fillister head screw | 2 | 09/2005 | 51167057457 | $0.41 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 525i Ignition lock of remote control?
- This technical diagram illustrates the Ignition lock of remote control within the Distance Systems, Cruise Control group for the 5 Series E60 LCI 525i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Ignition lock of remote control (Part #66129172159).
- Which models use the hardware listed in this Ignition lock of remote control?
- The hardware and components featured in the Ignition lock of remote control are specific to the 5 Series E60 LCI 525i produced during 2009. These technical specifications ensure that parts like the Ignition lock of remote control (66129172159) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ignition lock of remote control assembly?
- Each item in the Ignition lock of remote control corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 525i, you can identify the Ignition lock of remote control by locating its position on the schematic, which then links to the official BMW part number 66129172159 for the Distance Systems, Cruise Control section.
