Reversing camera for BMW 7 Series F02 LCI 730Ld (2015)

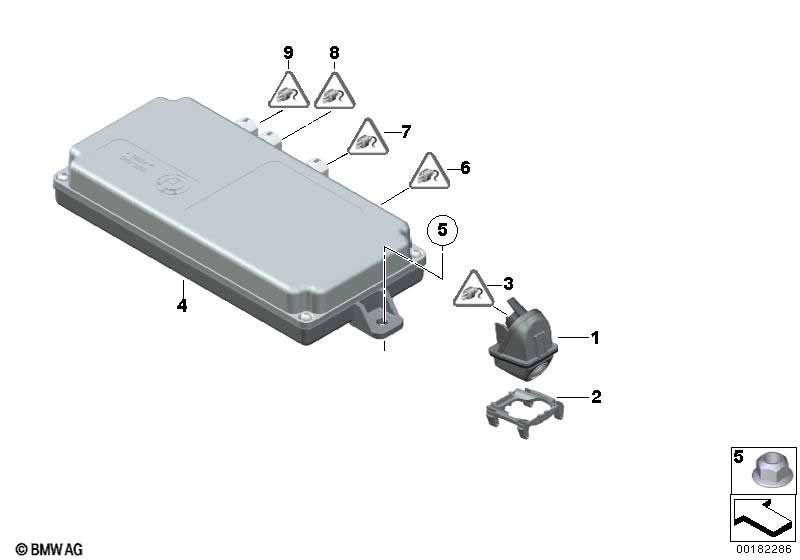

This Reversing camera technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Reversing camera |
S3AGA=Yes |
||||||||
| 01 | Reversing camera | MIT GEHÄUSE | 1 | 66539240351 | Shop at ECS Tuning | |||||
| 02 | Holder | 1 | 51137206430 | $2.28 | Shop at ECS Tuning | |||||
| 03 | Set of cables, reversing camera | 1 | 61119182293 | Shop at ECS Tuning | ||||||
| For vehicles with Surround View |
S5DLA=No |
|||||||||
| 04 | Control module, backup camera | 1 | 66536994555 | Shop at ECS Tuning | ||||||
| 05 | Hex nut | M5 | 1 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
