Side-view camera for BMW 7 Series F02 LCI 740Li (2015)

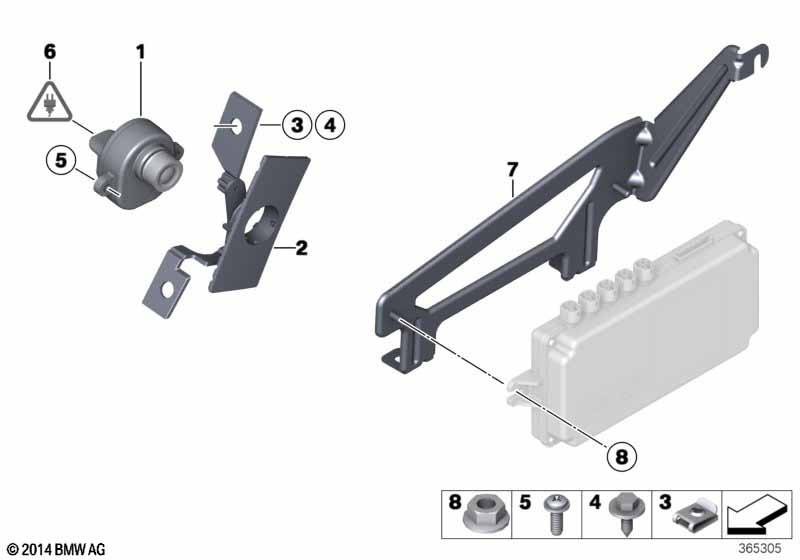

This Side-view camera technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Side View Camera or Surround View |
S5DKA=Yes S5DLA=Yes |
|||||||||
| 01 | Side-view camera | 2 | 66539240352 | Shop at ECS Tuning | ||||||
| 02 | Bracket left | 1 | 51117203825 | $5.76 | Shop at ECS Tuning | |||||
| 02 | Bracket right | 1 | 51117203826 | $5.76 | Shop at ECS Tuning | |||||
| 03 | Body nut | ST4,8-16-ZNS3 | 4 | 07129904243 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | 4 | 07149166316 | Shop at ECS Tuning | ||||||
| For vehicles with Backup camera and Top View |
S3AHA=Yes |
|||||||||
| 06 | Wiring harness, 360 degree camera | 1 | 61119182330 | $95.95 | Shop at ECS Tuning | |||||
| For vehicles with Side View Camera |
S5DKA=Yes |
|||||||||
| 06 | Wiring harness, Side View Camera | 1 | 61119186295 | Shop at ECS Tuning | ||||||
| For vehicles with Side View Camera or Surround View |
S5DKA=Yes S5DLA=Yes |
|||||||||
| 07 | Bracket "Top-Rear-Side-View" | 1 | 65159153137 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M6-8-ZNFE SW | 3 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 LCI 740Li Side-view camera?
- This technical diagram illustrates the Side-view camera within the Distance Systems, Cruise Control group for the 7 Series F02 LCI 740Li produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Side-view camera (Part #66539240352).
- Which models use the hardware listed in this Side-view camera?
- The hardware and components featured in the Side-view camera are specific to the 7 Series F02 LCI 740Li produced during 2015. These technical specifications ensure that parts like the Side-view camera (66539240352) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side-view camera assembly?
- Each item in the Side-view camera corresponds to the numbered list below the illustration. For the 7 Series F02 LCI 740Li, you can identify the Side-view camera by locating its position on the schematic, which then links to the official BMW part number 66539240352 for the Distance Systems, Cruise Control section.
