Park Distance Control (PDC) for BMW 5 Series E60 LCI 520d (2009)

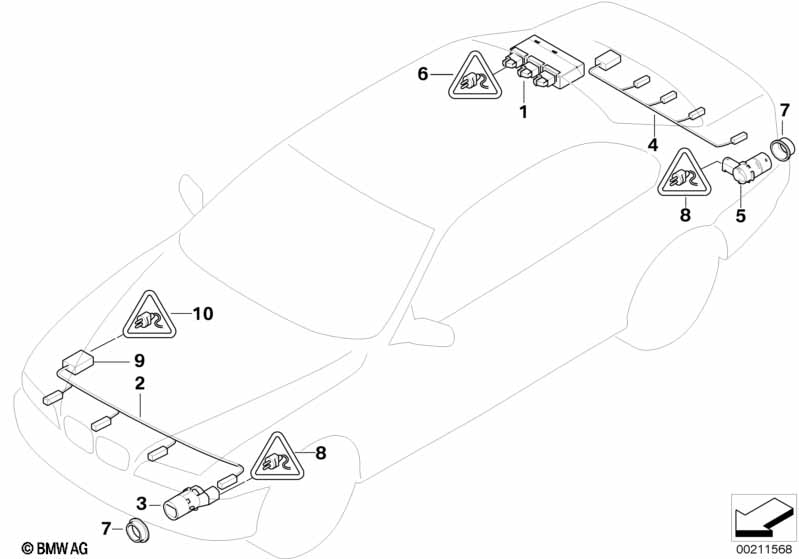

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important: Never paint ultrasonic converters as painting could result in malfunctions and failure. Ultrasonic converters painted in the field are not subject to any warranty, including liability for 6 collateral damage. For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Control unit PDC | 1 | 03/2007 | 66209145158 | $284.21 | Shop at ECS Tuning | ||||
| 02 | Set of cables, front bumper | 1 | 03/2007 | 61126928362 | $48.27 | Shop at ECS Tuning | ||||
| 03 | Ultrasonic sensor, color code | 4 | 03/2007 | 66202180148 | +core | Shop at ECS Tuning | ||||
| Important notice: Control number for Individual and unlisted colors. |
||||||||||
| For vehicles with orient-blau |
M317=Yes |
|||||||||
| 03 | Ultrasonic sensor, Orient Blue | M317 | 4 | 03/2007 | 66206989078 | +core | Shop at ECS Tuning | |||
| For vehicles with tief-grün metallic |
WA43=Yes |
|||||||||
| 03 | Ultrasonic sensor, Deep Green | WA43 | 4 | 03/2007 | 66206989233 | Shop at ECS Tuning | ||||
| For vehicles with titangrau II metallic |
WA36=Yes |
|||||||||
| 03 | Ultrasonic sensor, Titanium Gray II | WA36 | 4 | 03/2007 | 66206989207 | Shop at ECS Tuning | ||||
| For vehicles with Oxford-green 2 |
M430=Yes |
|||||||||
| 03 | Ultrasonic sensor, Oxford Green 2 | M430 | 4 | 03/2007 | 66206989084 | Shop at ECS Tuning | ||||
| For vehicles with silber-grau metallic |
WA08=Yes |
|||||||||
| 03 | Ultrasonic sensor, Silver/Gray | WA08 | 4 | 03/2007 | 66206989112 | Shop at ECS Tuning | ||||
| For vehicles with toledo-blau metallic |
M482=Yes |
|||||||||
| 03 | Ultrasonic sensor, Toledo Blue | M482 | 4 | 03/2007 | 66206989096 | Shop at ECS Tuning | ||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 4 | 03/2007 | 66206989104 | Shop at ECS Tuning | ||||
| For vehicles with titan-grau metallic |
M892=Yes |
|||||||||
| 03 | Ultrasonic sensor, Titanium Gray | M892 | 4 | 03/2007 | 66206989100 | +core | Shop at ECS Tuning | |||
| For vehicles with rubin-metallic black |
WS23=Yes |
|||||||||
| 03 | Ultrasonic sensor, Rubin Black | WS23 | 4 | 03/2007 | 66207964232 | +core | Shop at ECS Tuning | |||
| For vehicles with le-mans-blau |
M381=Yes |
|||||||||
| 03 | Ultrasonic sensor, Le Mans Blue | M381 | 4 | 03/2007 | 66207964083 | Shop at ECS Tuning | ||||
| For vehicles with interlagos-blau metallic |
WA30=Yes |
|||||||||
| 03 | Ultrasonic sensor, Interlagos Blue | WA30 | 4 | 03/2007 | 66206989214 | Shop at ECS Tuning | ||||
| For vehicles with mystic-blau metallic |
WA07=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mystic Blue | WA07 | 4 | 03/2007 | 66206989110 | Shop at ECS Tuning | ||||
| For vehicles with platin-bronze metallic |
WA53=Yes |
|||||||||
| 03 | Ultrasonic sensor, Platinum Bronze | WA53 | 4 | 03/2007 | 66209124168 | Shop at ECS Tuning | ||||
| For vehicles with indianapolis-rot metallic |
WA31=Yes |
|||||||||
| 03 | Ultrasonic sensor, Indianapolis Red | WA31 | 4 | 03/2007 | 66206989215 | Shop at ECS Tuning | ||||
| For vehicles with olivin metallic |
M349=Yes |
|||||||||
| 03 | Ultrasonic sensor, Olivine | M349 | 4 | 03/2007 | 66206989080 | Shop at ECS Tuning | ||||
| For vehicles with platin-grey metallic |
WA68=Yes |
|||||||||
| 03 | Ultrasonic sensor, Platinum Gray | WA68 | 4 | 03/2007 | 66209124165 | Shop at ECS Tuning | ||||
| For vehicles with sepang-bronze metallic |
WA32=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sepang Bronze | WA32 | 4 | 03/2007 | 66206989216 | Shop at ECS Tuning | ||||
| For vehicles with atlantic-blau |
WA13=Yes |
|||||||||
| 03 | Ultrasonic sensor, Atlantic Blue | WA13 | 4 | 03/2007 | 66206989119 | ENDED | Shop at ECS Tuning | |||
| For vehicles with black-sapphire metallic |
M475=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sapphire Black | M475 | 4 | 03/2007 | 66206989092 | Shop at ECS Tuning | ||||
| For vehicles with feuer-rot 2 |
U375=Yes |
|||||||||
| 03 | Ultrasonic sensor, Fire Red | U375 | 4 | 03/2007 | 66206989204 | Shop at ECS Tuning | ||||
| For vehicles with Mondstein metallic |
WS37=Yes |
|||||||||
| 03 | Ultrasonic sensor, Moonstone | WS37 WX04 | 4 | 03/2007 | 66206989243 | +core | Shop at ECS Tuning | |||
| For vehicles with blue-water metallic |
M896=Yes |
|||||||||
| 03 | Ultrasonic sensor, Blue Water | M896 | 4 | 03/2007 | 66206989245 | Shop at ECS Tuning | ||||
| For vehicles with space-grey metallic |
WA52=Yes |
|||||||||
| 03 | Ultrasonic sensor, Space Gray | WA52 | 4 | 03/2007 | 66209124167 | Shop at ECS Tuning | ||||
| For vehicles with Monacoblau metallic |
WA35=Yes |
|||||||||
| 03 | Ultrasonic sensor, Monaco Blue | WA35 | 4 | 03/2007 | 66206989235 | Shop at ECS Tuning | ||||
| For vehicles with barbera-rot metallic |
WA39=Yes |
|||||||||
| 03 | Ultrasonic sensor, Barbera Red | WA39 | 4 | 03/2007 | 66206989237 | Shop at ECS Tuning | ||||
| For vehicles with mineral-silber |
WA14=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral Silver | WA14 | 4 | 03/2007 | 66206989120 | ENDED | Shop at ECS Tuning | |||
| For vehicles with mineral-grün metallic |
WA70=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral Green | WA70 | 4 | 03/2007 | 66203455999 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with silverstone 2 metallic |
WA29=Yes |
|||||||||
| 03 | Ultrasonic sensor, Silver Stone | WA29 | 4 | 03/2007 | 66206989213 | Shop at ECS Tuning | ||||
| For vehicles with sterling-grau metallic |
M472=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sterling Gray | M472 | 4 | 03/2007 | 66206989090 | +core | Shop at ECS Tuning | |||
| For vehicles with neptun-blau metallic |
WA85=Yes |
|||||||||
| 03 | Ultrasonic sensor, Neptune Blue | WA85 | 4 | 03/2007 | 66209124169 | Shop at ECS Tuning | ||||
| For vehicles with chiaretto-rot metallic |
M894=Yes |
|||||||||
| 03 | Ultrasonic sensor, Chiaretto Red | M894 | 4 | 03/2007 | 66206989102 | +core | Shop at ECS Tuning | |||
| For vehicles with carbon-schwarz |
M416=Yes |
|||||||||
| 03 | Ultrasonic sensor, Carbon Black | M416 | 4 | 03/2007 | 66207964087 | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 03 | Ultrasonic sensor, Stratus | M440 | 4 | 03/2007 | 66206989117 | ENDED | Shop at ECS Tuning | |||
| For vehicles with flamenco-rot metallic |
M470=Yes |
|||||||||
| 03 | Ultrasonic sensor, Flamenco Red | M470 | 4 | 03/2007 | 66206989238 | Shop at ECS Tuning | ||||
| For vehicles with imola-rot 2 |
U405=Yes |
|||||||||
| 03 | Ultrasonic sensor, Imola Red | U405 | 4 | 03/2007 | 66207964086 | Shop at ECS Tuning | ||||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 03 | Ultrasonic sensor, Titanium Silver | M354 | 4 | 03/2007 | 66206989082 | Shop at ECS Tuning | ||||
| For vehicles with highland-grün |
WA11=Yes |
|||||||||
| 03 | Ultrasonic sensor, Highland Green | WA11 | 4 | 03/2007 | 66206989239 | Shop at ECS Tuning | ||||
| For vehicles with black 2 |
U668=Yes |
|||||||||
| 03 | Ultrasonic sensor, Black 2 | U668 | 4 | 03/2007 | 66206989106 | Shop at ECS Tuning | ||||
| For vehicles with vermilion-rot metallic |
WA82=Yes |
|||||||||
| 03 | Ultrasonic sensor, Vermilion Red | WA82 | 4 | 03/2007 | 66207976711 | Shop at ECS Tuning | ||||
| For vehicles with montego-metallic blue |
WA51=Yes |
|||||||||
| 03 | Ultrasonic sensor, Montego Blue | WA51 | 4 | 03/2007 | 66206989241 | Shop at ECS Tuning | ||||
| For vehicles with Tiefsee-blau metallic |
WA76=Yes |
|||||||||
| 03 | Ultrasonic sensor, deep-sea blue | WA76 | 4 | 03/2007 | 66209124166 | Shop at ECS Tuning | ||||
| For vehicles with amethyst-grau |
WA09=Yes |
|||||||||
| 03 | Ultrasonic sensor, Amethyst Gray | WA09 | 4 | 03/2007 | 66206989114 | Shop at ECS Tuning | ||||
| For vehicles with mocca-braun metallic |
M891=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mocha Brown | M891 | 4 | 03/2007 | 66206989098 | Shop at ECS Tuning | ||||
| 04 | Set of cables, rear bumper | 1 | 03/2007 | 61126928366 | $48.27 | Shop at ECS Tuning | ||||
| 05 | Ultrasonic sensor, color code | 4 | 03/2007 | 66202180149 | Shop at ECS Tuning | |||||
| Important notice: Control number for Individual and unlisted colors. |
||||||||||
| For vehicles with orient-blau |
M317=Yes |
|||||||||
| 05 | Ultrasonic sensor, Orient Blue | M317 | 4 | 03/2007 | 66206989077 | +core | Shop at ECS Tuning | |||
| For vehicles with tief-grün metallic |
WA43=Yes |
|||||||||
| 05 | Ultrasonic sensor, Deep Green | WA43 | 4 | 03/2007 | 66206989232 | Shop at ECS Tuning | ||||
| For vehicles with titangrau II metallic |
WA36=Yes |
|||||||||
| 05 | Ultrasonic sensor, Titanium Gray II | WA36 | 4 | 03/2007 | 66206989136 | Shop at ECS Tuning | ||||
| For vehicles with Oxford-green 2 |
M430=Yes |
|||||||||
| 05 | Ultrasonic sensor, Oxford Green 2 | M430 | 4 | 03/2007 | 66206989083 | Shop at ECS Tuning | ||||
| For vehicles with silber-grau metallic |
WA08=Yes |
|||||||||
| 05 | Ultrasonic sensor, Silver/Gray | WA08 | 4 | 03/2007 | 66206989111 | Shop at ECS Tuning | ||||
| For vehicles with toledo-blau metallic |
M482=Yes |
|||||||||
| 05 | Ultrasonic sensor, Toledo Blue | M482 | 4 | 03/2007 | 66206989095 | Shop at ECS Tuning | ||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 05 | Ultrasonic sensor, Alpine White | U300 | 4 | 03/2007 | 66206989103 | Shop at ECS Tuning | ||||
| For vehicles with astro-black metallic |
WA25=Yes |
|||||||||
| 05 | Ultrasonic sensor, Astro Black | WA25 | 4 | 03/2007 | 66202240840 | +core | Shop at ECS Tuning | |||
| For vehicles with schiefer-grün metallic |
M449=Yes |
|||||||||
| 05 | Ultrasonic sensor, Slate Green | M449 | 4 | 03/2007 | 66206989086 | +core | Shop at ECS Tuning | |||
| For vehicles with titan-grau metallic |
M892=Yes |
|||||||||
| 05 | Ultrasonic sensor, Titanium Gray | M892 | 4 | 03/2007 | 66206989099 | Shop at ECS Tuning | ||||
| For vehicles with le-mans-blau |
M381=Yes |
|||||||||
| 05 | Ultrasonic sensor, Le Mans Blue | M381 | 4 | 03/2007 | 66207964084 | Shop at ECS Tuning | ||||
| For vehicles with interlagos-blau metallic |
WA30=Yes |
|||||||||
| 05 | Ultrasonic sensor, Interlagos Blue | WA30 | 4 | 03/2007 | 66206989210 | Shop at ECS Tuning | ||||
| For vehicles with mystic-blau metallic |
WA07=Yes |
|||||||||
| 05 | Ultrasonic sensor, Mystic Blue | WA07 | 4 | 03/2007 | 66206989109 | Shop at ECS Tuning | ||||
| For vehicles with british-racing-green metallic |
WA67=Yes |
|||||||||
| 05 | Ultrasonic sensor, British-Racing Green | WA67 | 4 | 03/2007 | 66207964709 | Shop at ECS Tuning | ||||
| For vehicles with platin-bronze metallic |
WA53=Yes |
|||||||||
| 05 | Ultrasonic sensor, Platinum Bronze | WA53 | 4 | 03/2007 | 66209124163 | Shop at ECS Tuning | ||||
| For vehicles with indianapolis-rot metallic |
WA31=Yes |
|||||||||
| 05 | Ultrasonic sensor, Indianapolis Red | WA31 | 4 | 03/2007 | 66206989211 | Shop at ECS Tuning | ||||
| For vehicles with olivin metallic |
M349=Yes |
|||||||||
| 05 | Ultrasonic sensor, Olivine | M349 | 4 | 03/2007 | 66206989079 | Shop at ECS Tuning | ||||
| For vehicles with platin-grey metallic |
WA68=Yes |
|||||||||
| 05 | Ultrasonic sensor, Platinum Gray | WA68 | 4 | 03/2007 | 66209124158 | Shop at ECS Tuning | ||||
| For vehicles with sepang-bronze metallic |
WA32=Yes |
|||||||||
| 05 | Ultrasonic sensor, Sepang Bronze | WA32 | 4 | 03/2007 | 66206989212 | Shop at ECS Tuning | ||||
| For vehicles with atlantic-blau |
WA13=Yes |
|||||||||
| 05 | Ultrasonic sensor, Atlantic Blue | WA13 | 4 | 03/2007 | 66206989115 | Shop at ECS Tuning | ||||
| For vehicles with black-sapphire metallic |
M475=Yes |
|||||||||
| 05 | Ultrasonic sensor, Black Sapphire | M475 | 4 | 03/2007 | 66206989091 | Shop at ECS Tuning | ||||
| For vehicles with feuer-rot 2 |
U375=Yes |
|||||||||
| 05 | Ultrasonic sensor, Fire Red | U375 | 4 | 03/2007 | 66206989125 | Shop at ECS Tuning | ||||
| For vehicles with blue-water metallic |
M896=Yes |
|||||||||
| 05 | Ultrasonic sensor, Blue Water | M896 | 4 | 03/2007 | 66206989123 | Shop at ECS Tuning | ||||
| For vehicles with lightning-blue metallic |
WA63=Yes |
|||||||||
| 05 | Ultrasonic sensor, Lightning Blue | WA63 | 4 | 03/2007 | 66202240967 | +core | Shop at ECS Tuning | |||
| For vehicles with space-grey metallic |
WA52=Yes |
|||||||||
| 05 | Ultrasonic sensor, Space Gray | WA52 | 4 | 03/2007 | 66209124162 | Shop at ECS Tuning | ||||
| For vehicles with Monacoblau metallic |
WA35=Yes |
|||||||||
| 05 | Ultrasonic sensor, Monaco Blue | WA35 | 4 | 03/2007 | 66206989234 | Shop at ECS Tuning | ||||
| For vehicles with barbera-rot metallic |
WA39=Yes |
|||||||||
| 05 | Ultrasonic sensor, Barbera Red | WA39 | 4 | 03/2007 | 66206989236 | Shop at ECS Tuning | ||||
| For vehicles with mineral-silber |
WA14=Yes |
|||||||||
| 05 | Ultrasonic sensor, Mineral Silver | WA14 | 4 | 03/2007 | 66206989116 | Shop at ECS Tuning | ||||
| For vehicles with silverstone 2 metallic |
WA29=Yes |
|||||||||
| 05 | Ultrasonic sensor, Silver Stone | WA29 | 4 | 03/2007 | 66206989209 | Shop at ECS Tuning | ||||
| For vehicles with Black-eye purple metallic |
WA24=Yes |
|||||||||
| 05 | Ultrasonic sensor, black-eye purple | WA24 | 4 | 03/2007 | 66202240953 | +core | Shop at ECS Tuning | |||
| For vehicles with sterling-grau metallic |
M472=Yes |
|||||||||
| 05 | Ultrasonic sensor, Sterling Gray | M472 | 4 | 03/2007 | 66206989089 | Shop at ECS Tuning | ||||
| For vehicles with neptun-blau metallic |
WA85=Yes |
|||||||||
| 05 | Ultrasonic sensor, Neptune Blue | WA85 | 4 | 03/2007 | 66209124164 | ENDED | Shop at ECS Tuning | |||
| For vehicles with chiaretto-rot metallic |
M894=Yes |
|||||||||
| 05 | Ultrasonic sensor, Chiaretto Red | M894 | 4 | 03/2007 | 66206989101 | +core | Shop at ECS Tuning | |||
| For vehicles with carbon-schwarz |
M416=Yes |
|||||||||
| 05 | Ultrasonic sensor, Carbon Black | M416 | 4 | 03/2007 | 66207964088 | Shop at ECS Tuning | ||||
| For vehicles with stratus metallic |
M440=Yes |
|||||||||
| 05 | Ultrasonic sensor, Stratus | M440 | 4 | 03/2007 | 66206989085 | Shop at ECS Tuning | ||||
| For vehicles with imola-rot 2 |
U405=Yes |
|||||||||
| 05 | Ultrasonic sensor, Imola Red | U405 | 4 | 03/2007 | 66206989129 | Shop at ECS Tuning | ||||
| For vehicles with topas-blau |
M364=Yes |
|||||||||
| 05 | Ultrasonic sensor, Topaz Blue | M364 | 4 | 03/2007 | 66202241112 | +core | Shop at ECS Tuning | |||
| For vehicles with hot-orange metallic |
WA26=Yes |
|||||||||
| 05 | Ultrasonic sensor, Hot Orange | WA26 | 4 | 03/2007 | 66202240943 | +core | Shop at ECS Tuning | |||
| For vehicles with hyper-blue metallic |
WA28=Yes |
|||||||||
| 05 | Ultrasonic sensor, Hyper Blue | WA28 | 4 | 03/2007 | 66202240952 | +core | Shop at ECS Tuning | |||
| For vehicles with titan-silber |
M354=Yes |
|||||||||
| 05 | Ultrasonic sensor, Titanium Silver | M354 | 4 | 03/2007 | 66206989081 | Shop at ECS Tuning | ||||
| For vehicles with black 2 |
U668=Yes |
|||||||||
| 05 | Ultrasonic sensor, Black 2 | U668 | 4 | 03/2007 | 66206989105 | Shop at ECS Tuning | ||||
| For vehicles with blue-onyx metallic |
WS11=Yes |
|||||||||
| 05 | Ultrasonic sensor, Blue Onyx | WS11 | 4 | 03/2007 | 66202240966 | +core | Shop at ECS Tuning | |||
| For vehicles with royal-grey metallic |
WA48=Yes |
|||||||||
| 05 | Ultrasonic sensor, Royal Gray | WA48 | 4 | 03/2007 | 66202240962 | +core | Shop at ECS Tuning | |||
| For vehicles with Tiefsee-blau metallic |
WA76=Yes |
|||||||||
| 05 | Ultrasonic sensor, deep-sea blue | WA76 | 4 | 03/2007 | 66209124161 | Shop at ECS Tuning | ||||
| For vehicles with sparkling-silver metallic |
WA60=Yes |
|||||||||
| 05 | Ultrasonic sensor, Sparkling Silver | WA60 | 4 | 03/2007 | 66202240961 | +core | Shop at ECS Tuning | |||
| For vehicles with cool-blue metallic |
WA27=Yes |
|||||||||
| 05 | Ultrasonic sensor, Cool Blue | WA27 | 4 | 03/2007 | 66202240945 | +core | Shop at ECS Tuning | |||
| For vehicles with amethyst-grau |
WA09=Yes |
|||||||||
| 05 | Ultrasonic sensor, Amethyst Gray | WA09 | 4 | 03/2007 | 66206989113 | Shop at ECS Tuning | ||||
| For vehicles with mocca-braun metallic |
M891=Yes |
|||||||||
| 05 | Ultrasonic sensor, Mocha Brown | M891 | 4 | 03/2007 | 66206989097 | Shop at ECS Tuning | ||||
| 08 | Universal socket housing uncoded | 3 POL. | 1 | 03/2007 | 09/2010 | 61138365348 | $3.40 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 03/2007 | 09/2010 | 61130056384 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 3 | 03/2007 | 09/2010 | 61130056961 | Shop at ECS Tuning | |||
| 08 | Rep. kit for socket housing | 3 POL. | 1 | 03/2007 | 61132359998 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 03/2007 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 3 | 03/2007 | 61130056961 | Shop at ECS Tuning | ||||
| 09 | Pin terminal | 12 POL./SCHWARZ | 1 | 03/2007 | 61138387220 | $5.75 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Terminal pin MQS ELA | 0.2-0.5MM² /SN | 12 | 03/2007 | 61131393703 | $0.42 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 0.5-1.0MM² GN | 1 | 03/2007 | 61138366245 | $0.17 | Shop at ECS Tuning | |||
| 10 | Universal socket housing uncoded | 12 POL. | 1 | 03/2007 | 61138373632 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 12 | 03/2007 | 61136931880 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,5-1,5 MM² | 1 | 03/2007 | 61138353706 | $0.27 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 520d Park Distance Control (PDC)?
- This technical diagram illustrates the Park Distance Control (PDC) within the Distance Systems, Cruise Control group for the 5 Series E60 LCI 520d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Control unit PDC (Part #66209145158).
- Which models use the hardware listed in this Park Distance Control (PDC)?
- The hardware and components featured in the Park Distance Control (PDC) are specific to the 5 Series E60 LCI 520d produced during 2009. These technical specifications ensure that parts like the Control unit PDC (66209145158) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Park Distance Control (PDC) assembly?
- Each item in the Park Distance Control (PDC) corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 520d, you can identify the Control unit PDC by locating its position on the schematic, which then links to the official BMW part number 66209145158 for the Distance Systems, Cruise Control section.
