Reversing camera for BMW 6 Series F06 Gran Coupé 650i (2015)

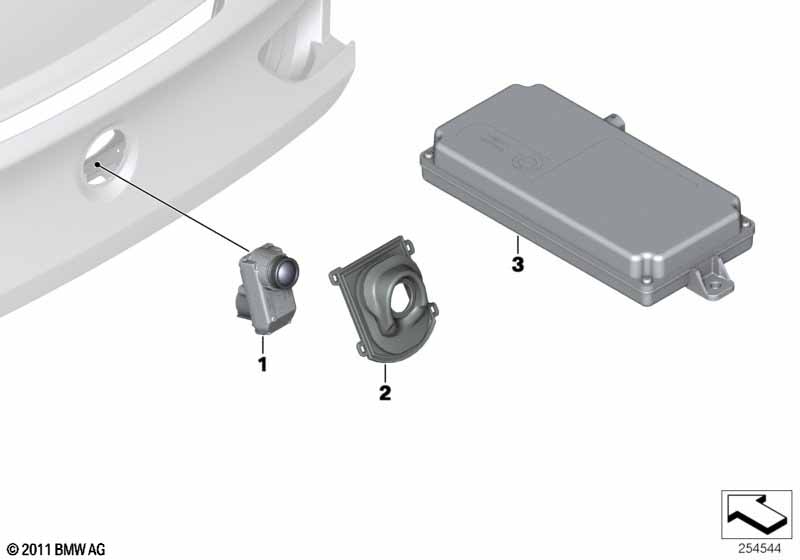

This Reversing camera technical drawing provides a detailed breakdown of the assembly for the 6 Series F06 Gran Coupé 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reversing camera | OHNE GEHÄUSE | 1 | 66539240358 | Shop at ECS Tuning | |||||
| 02 | Rubber boot | RVC | 1 | 51247273662 | Shop at ECS Tuning | |||||
| 03 | Control module, backup camera | 1 | 66536994555 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series F06 Gran Coupé 650i Reversing camera?
- This technical diagram illustrates the Reversing camera within the Distance Systems, Cruise Control group for the 6 Series F06 Gran Coupé 650i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Reversing camera (Part #66539240358).
- Which models use the hardware listed in this Reversing camera?
- The hardware and components featured in the Reversing camera are specific to the 6 Series F06 Gran Coupé 650i produced during 2015. These technical specifications ensure that parts like the Reversing camera (66539240358) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reversing camera assembly?
- Each item in the Reversing camera corresponds to the numbered list below the illustration. For the 6 Series F06 Gran Coupé 650i, you can identify the Reversing camera by locating its position on the schematic, which then links to the official BMW part number 66539240358 for the Distance Systems, Cruise Control section.
