Lane-change warning for BMW 7 Series F02 LCI 740Li (2015)

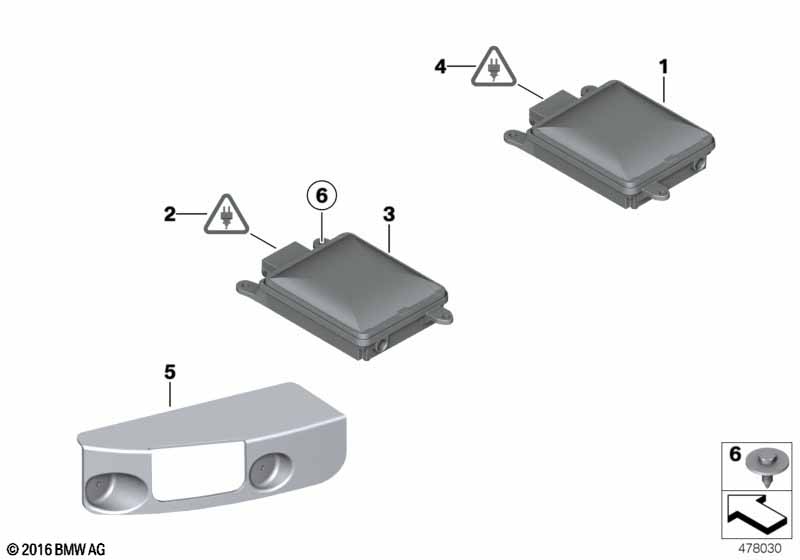

This Lane-change warning technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Lane-change warning |
S5AGA=Yes |
||||||||
| 01 | Sensor, lane change warning, master, RI | 1 | 07/2015 | 66326873335 | ENDED | Shop at ECS Tuning | ||||
| 01 | Sensor, lane change warning, master, RI | 1 | 09/2015 | 66326873339 | ENDED | Shop at ECS Tuning | ||||
| 01 | Sensor, lane change warning, master, RI | 1 | 66326885041 | Shop at ECS Tuning | ||||||
| 03 | Sensor, lane change warning, slave, LE | 1 | 07/2015 | 66326873336 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sensor, lane change warning, slave, LE | 1 | 09/2015 | 66326873340 | ENDED | Shop at ECS Tuning | ||||
| 03 | Sensor, lane change warning, slave, LE | 1 | 66326885042 | Shop at ECS Tuning | ||||||
| 05 | Screening, left | 1 | 66326783357 | Shop at ECS Tuning | ||||||
| 05 | Screening, right | 1 | 66326783358 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | TS 5X16 | 10 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
