Parking Manoeuvre Assistant (PMA) for BMW 7 Series G12 730Ld (2019)

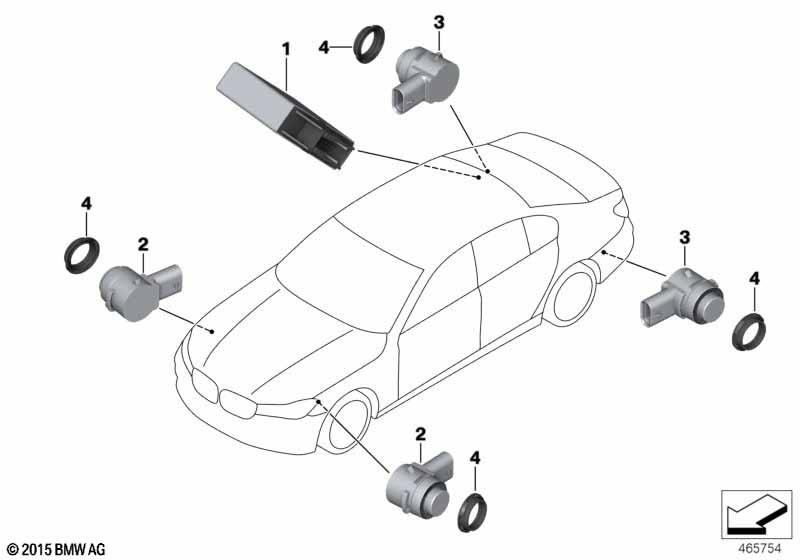

This Parking Manoeuvre Assistant (PMA) technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Surround View or Park Assistent or Remote control parking |
S5DLA=Yes S5DPA=Yes S5DVA=Yes |
||||||||
| 01 | Control module for Park Assistant | HIGH | 1 | 66209418460 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 2 | 66202409652 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with arktis-grau Brillanteffekt |
WC27=Yes |
|||||||||
| 02 | Ultrasonic sensor, Arctic Gray | WC27 | 2 | 66209360717 | Shop at ECS Tuning | |||||
| For vehicles with Jatoba metallic |
WB65=Yes |
|||||||||
| 02 | Ultrasonic sensor, Jatoba | WB65 | 2 | 66209359096 | Shop at ECS Tuning | |||||
| For vehicles with singapur-grau metallic |
WB41=Yes |
|||||||||
| 02 | Ultrasonic sensor, Singapore Gray | WB41 | 2 | 66209361561 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66206819067 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209290897 | Shop at ECS Tuning | |||||
| For vehicles with magellan-grau metallic |
WC26=Yes |
|||||||||
| 02 | Ultrasonic sensor, Magellan Gray | WC26 | 2 | 66209360714 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209290899 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 02 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209290900 | Shop at ECS Tuning | |||||
| For vehicles with kaschmir-silver metallic |
WA72=Yes |
|||||||||
| 02 | Ultrasonic sensor, Kashmir Silver | WA72 | 2 | 66209359092 | Shop at ECS Tuning | |||||
| For vehicles with atlas-zeder metallic |
WC2P=Yes |
|||||||||
| 02 | Ultrasonic sensor, Atlas Ceder | WC2P | 2 | 66209121387 | Shop at ECS Tuning | |||||
| For vehicles with jucaro-beige metallic |
WC2S=Yes |
|||||||||
| 02 | Ultrasonic sensor, Jucaro Beige | WC2S WC3P | 2 | 66209398993 | Shop at ECS Tuning | |||||
| For vehicles with capparis-weiss/BMW i blau or capparis weiss |
YB85=Yes YB88=Yes |
|||||||||
| 02 | Ultrasonic sensor, Capparis White | YB85 YB88 | 2 | 66209311261 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 02 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 2 | 66209312614 | Shop at ECS Tuning | |||||
| For vehicles with imperial-blau brillant metallic or Imperial blue/frozen.gray met. |
WA89=Yes WC1W=Yes |
|||||||||
| 02 | Ultrasonic sensor, Imperial Blue | WA89 WC1W | 2 | 66209290902 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic or sophisto-grau Brillant/frozen-grey or sophisto-grau Brillant/BMW i blau |
WA90=Yes WC22=Yes WC23=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto gray II | WA90 WC22 WC23 | 2 | 66209306411 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 or without application or without application or midnight-black metallic or rubin-metallic black |
M416=Yes M475=Yes U668=Yes U973=Yes U974=Yes WA94=Yes WX03=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | 5.7.2 RADIAL | 2 | 66209274429 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, color code | 2 | 66202409650 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with arktis-grau Brillanteffekt |
WC27=Yes |
|||||||||
| 03 | Ultrasonic sensor, Arctic Gray | WC27 | 2 | 66209360716 | Shop at ECS Tuning | |||||
| For vehicles with Jatoba metallic |
WB65=Yes |
|||||||||
| 03 | Ultrasonic sensor, Jatoba | WB65 | 2 | 66209359094 | Shop at ECS Tuning | |||||
| For vehicles with singapur-grau metallic |
WB41=Yes |
|||||||||
| 03 | Ultrasonic sensor, Singapore Gray | WB41 | 2 | 66209361559 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 03 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66206819066 | Shop at ECS Tuning | |||||
| For vehicles with frozen-grey metallic |
WU83=Yes |
|||||||||
| 03 | Ultrasonic sensor, Frozen Gray | WU83 | 2 | 66208090825 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209283750 | Shop at ECS Tuning | |||||
| For vehicles with magellan-grau metallic |
WC26=Yes |
|||||||||
| 03 | Ultrasonic sensor, Magellan Gray | WC26 | 2 | 66209360713 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209283752 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 03 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209283754 | Shop at ECS Tuning | |||||
| For vehicles with kaschmir-silver metallic |
WA72=Yes |
|||||||||
| 03 | Ultrasonic sensor, Kashmir Silver | WA72 | 2 | 66209359090 | Shop at ECS Tuning | |||||
| For vehicles with atlas-zeder metallic |
WC2P=Yes |
|||||||||
| 03 | Ultrasonic sensor, Atlas Ceder | WC2P | 2 | 66209121386 | Shop at ECS Tuning | |||||
| For vehicles with jucaro-beige metallic |
WC2S=Yes |
|||||||||
| 03 | Ultrasonic sensor, Jucaro Beige | WC2S WC3P | 2 | 66209398992 | Shop at ECS Tuning | |||||
| For vehicles with capparis-weiss/BMW i blau or capparis weiss |
YB85=Yes YB88=Yes |
|||||||||
| 03 | Ultrasonic sensor, Capparis White | YB85 YB88 | 2 | 66209318690 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 03 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 2 | 66209312613 | Shop at ECS Tuning | |||||
| For vehicles with imperial-blau brillant metallic or Imperial blue/frozen.gray met. |
WA89=Yes WC1W=Yes |
|||||||||
| 03 | Ultrasonic sensor, Imperial Blue | WA89 WC1W | 2 | 66209283760 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic or sophisto-grau Brillant/frozen-grey or sophisto-grau Brillant/BMW i blau |
WA90=Yes WC22=Yes WC23=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sophisto gray II | WA90 WC22/23/50 | 2 | 66209306410 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 or without application or without application or midnight-black metallic or rubin-metallic black |
M416=Yes M475=Yes U668=Yes U973=Yes U974=Yes WA94=Yes WX03=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | 5.7.1 RADIAL | 2 | 66209274427 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring PDC torque converter | 4 | 66209283203 | Shop at ECS Tuning | ||||||
