Reversing camera for BMW 7 Series G12 740LdX (2019)

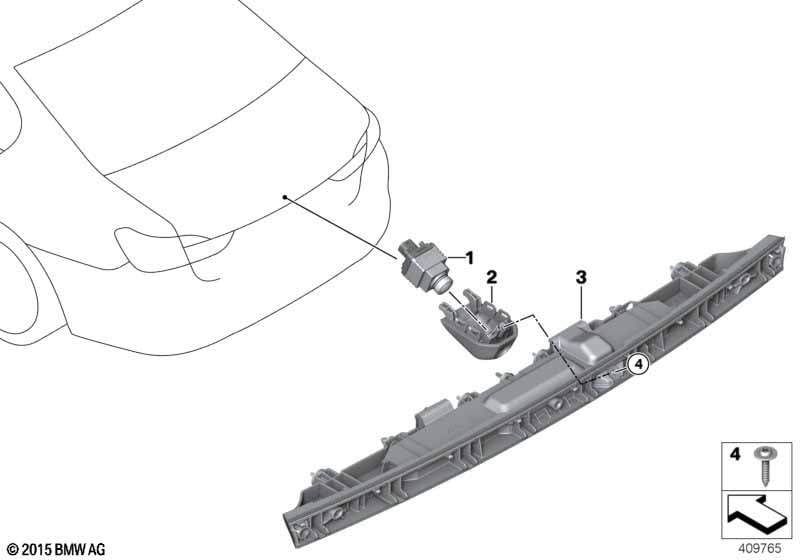

This Reversing camera technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Reversing camera and Surround View |
S3AGA=Yes S5DLA=No |
||||||||
| 01 | Reversing camera | ICAM2RFK-BO01 | 1 | 03/2023 | 66555A1BC30 | Shop at ECS Tuning | ||||
| 01 | Rearview camera | ICAM2RFK-BO01 | 1 | 66555A84564 | Shop at ECS Tuning | |||||
| 02 | Holder camera | 1 | 51137357106 | Shop at ECS Tuning | ||||||
| 03 | Trunk lid grip | RFK | 1 | 51137357105 | Shop at ECS Tuning | |||||
| 04 | Oval-head screw with washer | DELTA PT4X12 | 1 | 07149200941 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 740LdX Reversing camera?
- This technical diagram illustrates the Reversing camera within the Distance Systems, Cruise Control group for the 7 Series G12 740LdX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Reversing camera (Part #66555A1BC30).
- Which models use the hardware listed in this Reversing camera?
- The hardware and components featured in the Reversing camera are specific to the 7 Series G12 740LdX produced during 2019. These technical specifications ensure that parts like the Reversing camera (66555A1BC30) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reversing camera assembly?
- Each item in the Reversing camera corresponds to the numbered list below the illustration. For the 7 Series G12 740LdX, you can identify the Reversing camera by locating its position on the schematic, which then links to the official BMW part number 66555A1BC30 for the Distance Systems, Cruise Control section.
