Front radar sensor, long range for BMW 7 Series G12 730Ld (2019)

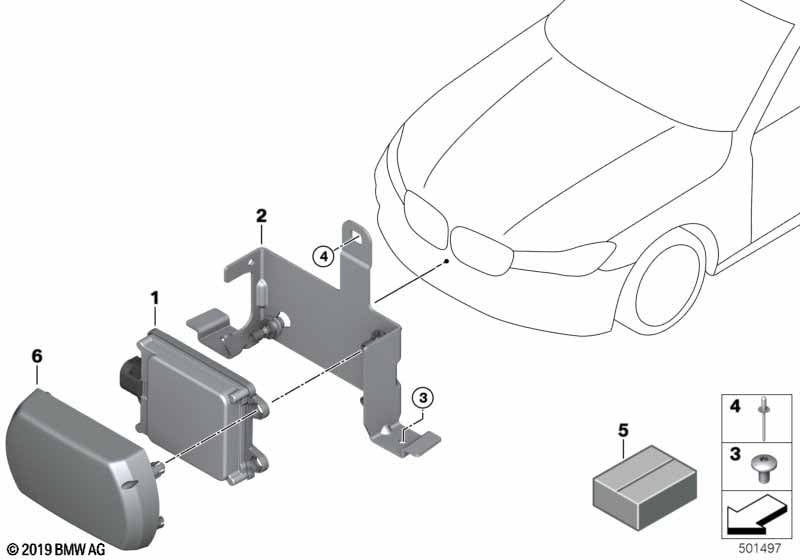

This Front radar sensor, long range technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Driving Assistant Plus or Active cruise control+Stop&Go function |
S5ATA=Yes S5DFA=Yes |
||||||||
| 01 | Front radar sensor, long range | FRR-02 | 1 | 66315A58DA3 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 02 | Bracket f.sensor | 1 | 66316886216 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Bracket f.sensor | 1 | 51118075359 | Shop at ECS Tuning | ||||||
| 03 | Torx screw with washer | ISA M6X17 | 2 | 07149144003 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Blind rivet | 1 | 07149191219 | Shop at ECS Tuning | ||||||
| 05 | Repair kit ACC sensor | 1 | 66316882614 | Shop at ECS Tuning | ||||||
| 06 | Radome | 1 | 66316877219 | Shop at ECS Tuning | ||||||
