Night vision camera for BMW 7 Series G12 730LdX (2019)

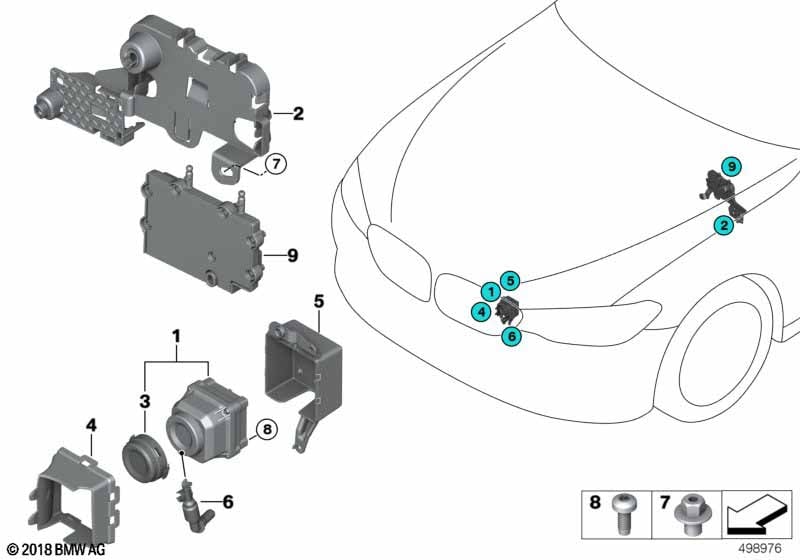

This Night vision camera technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Night Vision with human recognition |
S6UKA=Yes |
||||||||
| 01 | Night vision camera | 1 | 66549322653 | Shop at ECS Tuning | ||||||
| 02 | Bracket, control unit | NIVI | 1 | 07/2019 | 61359331170 | Shop at ECS Tuning | ||||
| 03 | Cover for lens | 1 | 66549261106 | Shop at ECS Tuning | ||||||
| 04 | Cover panel camera | 1 | 51137406013 | Shop at ECS Tuning | ||||||
| 05 | Mount camera | 1 | 51137347381 | Shop at ECS Tuning | ||||||
| 06 | High-pressure nozzle | 1 | 61677357351 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | 2 | 07/2019 | 61356953432 | $0.37 | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | 5X14 | 2 | 07146973628 | Shop at ECS Tuning | |||||
| 08 | Oval-head screw, self-tapping | M5X12 | 4 | 07149241365 | Shop at ECS Tuning | |||||
| 09 | Control unit, Night Vision Camera | NIVI 3 ECU | 1 | 07/2020 | 66549858145 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 730LdX Night vision camera?
- This technical diagram illustrates the Night vision camera within the Distance Systems, Cruise Control group for the 7 Series G12 730LdX produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Night vision camera (Part #66549322653).
- Which models use the hardware listed in this Night vision camera?
- The hardware and components featured in the Night vision camera are specific to the 7 Series G12 730LdX produced during 2019. These technical specifications ensure that parts like the Night vision camera (66549322653) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Night vision camera assembly?
- Each item in the Night vision camera corresponds to the numbered list below the illustration. For the 7 Series G12 730LdX, you can identify the Night vision camera by locating its position on the schematic, which then links to the official BMW part number 66549322653 for the Distance Systems, Cruise Control section.
