Reversing camera for BMW 5 Series G30 LCI 530iX (2022)

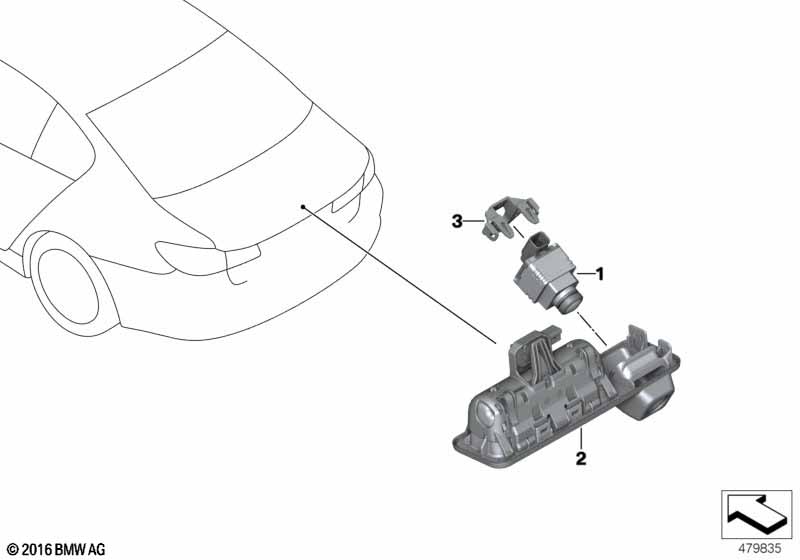

This Reversing camera technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention! Exchange of the rearview camera only in combination with a new tailgate button. See HG41 For vehicles with Reversing camera or Parking assistance system |
S3AGA=Yes S5DMA=Yes |
||||||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 01 | Rearview camera | 1 | 10/2022 | 66555A63731 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rearview camera | 1 | 03/2023 | 66555A722D0 | ENDED | Shop at ECS Tuning | ||||
| 01 | Rearview camera | 1 | 66555A7F553 | Shop at ECS Tuning | ||||||
| For vehicles with Surround View |
S5DLA=No |
|||||||||
| 02 | Boot lid/tailgate pushbutton | RFK | 1 | 51247381868 | Shop at ECS Tuning | |||||
| 03 | Counter support rearview camera | 1 | 51247405635 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
