Park Distance Control (PDC) for BMW 6 Series G32 GT 630i (2019)

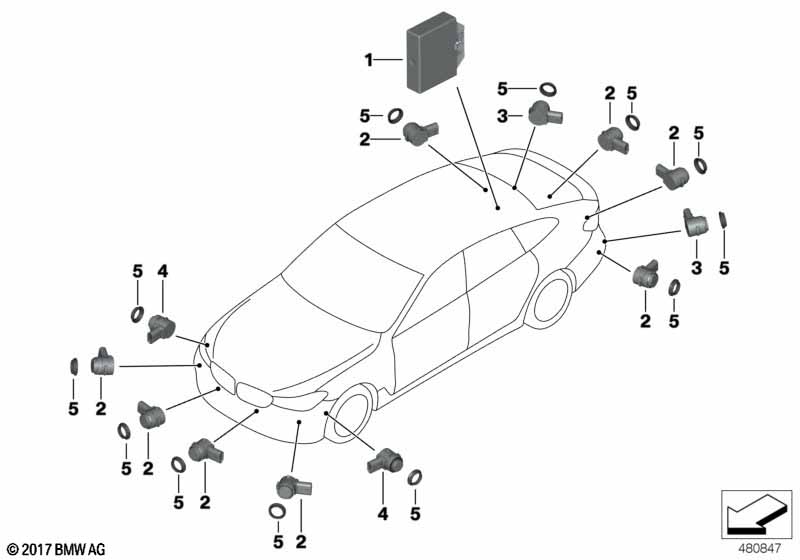

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package or M Aerodynamics package |
P337A=Yes S715A=Yes |
||||||||
| 01 | Control module for Park Assistant | HIGH | 1 | 66209418460 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 8 | 66202409650 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral White | WA96 | 8 | 66209283752 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 02 | Ultrasonic sensor Sunset Orange | WC1X | 8 | 66206848088 | Shop at ECS Tuning | |||||
| For vehicles with mediterran-blau metallic |
WC10=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mediterranean Blue | WC10 | 8 | 66209336919 | Shop at ECS Tuning | |||||
| For vehicles with royal-burgundy-red Brillanteffekt |
WC25=Yes |
|||||||||
| 02 | Ultrasonic sensor, Royal Burgundy Red | WC25 | 8 | 66209371495 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue stone | WC2Y | 8 | 66206819066 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 02 | Ultrasonic sensor, Glacier Silver | WA83 | 8 | 66209283754 | Shop at ECS Tuning | |||||
| For vehicles with Jatoba metallic |
WB65=Yes |
|||||||||
| 02 | Ultrasonic sensor, Jatoba | WB65 | 8 | 66209359094 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 8 | 66209283750 | Shop at ECS Tuning | |||||
| For vehicles with jucaro-beige metallic or Jucaro beige accent, frozen grey met. |
WC2S=Yes WC3P=Yes |
|||||||||
| 02 | Ultrasonic sensor, Jucaro Beige | WC2S WC3P | 8 | 66209398992 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic or sophisto-grau Brillant/frozen-grey or sophisto-grau Brillant/BMW i blau |
WA90=Yes WC22=Yes WC23=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto gray II | WA90 WC22/23/50 | 8 | 66209306410 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 or without application or without application or midnight-black metallic or azurit-metallic black or rubin-metallic black |
M416=Yes M475=Yes U668=Yes U973=Yes U974=Yes WA94=Yes WS34=Yes WX03=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | 5.7.1 RADIAL | 8 | 66209274427 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, Dark Shadow | WB27 | 2 | 66207850461 | Shop at ECS Tuning | |||||
| 04 | Ultrasonic sensor, color code | 2 | 66202409652 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 04 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209290899 | Shop at ECS Tuning | |||||
| For vehicles with mediterran-blau metallic |
WC10=Yes |
|||||||||
| 04 | Ultrasonic sensor, Mediterranean Blue | WC10 | 2 | 66209336920 | Shop at ECS Tuning | |||||
| For vehicles with royal-burgundy-red Brillanteffekt |
WC25=Yes |
|||||||||
| 04 | Ultrasonic sensor, Royal Burgundy Red | WC25 | 2 | 66209371496 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 04 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66206819067 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 04 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209290900 | Shop at ECS Tuning | |||||
| For vehicles with Jatoba metallic |
WB65=Yes |
|||||||||
| 04 | Ultrasonic sensor, Jatoba | WB65 | 2 | 66209359096 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 04 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209290897 | Shop at ECS Tuning | |||||
| For vehicles with capparis-weiss/BMW i blau or capparis weiss |
YB85=Yes YB88=Yes |
|||||||||
| 04 | Ultrasonic sensor, Capparis White | YB85 YB88 | 2 | 66209311261 | Shop at ECS Tuning | |||||
| For vehicles with jucaro-beige metallic or Jucaro beige accent, frozen grey met. |
WC2S=Yes WC3P=Yes |
|||||||||
| 04 | Ultrasonic sensor, Jucaro Beige | WC2S WC3P | 2 | 66209398993 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 04 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 2 | 66209312614 | Shop at ECS Tuning | |||||
| For vehicles with imperial-blau brillant metallic or Imperial blue/frozen.gray met. |
WA89=Yes WC1W=Yes |
|||||||||
| 04 | Ultrasonic sensor, Imperial Blue | WA89 WC1W | 2 | 66209290902 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic or sophisto-grau Brillant/frozen-grey or sophisto-grau Brillant/BMW i blau |
WA90=Yes WC22=Yes WC23=Yes |
|||||||||
| 04 | Ultrasonic sensor, Sophisto gray II | WA90 WC22 WC23 | 2 | 66209306411 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 or without application or without application or midnight-black metallic or azurit-metallic black or rubin-metallic black |
M416=Yes M475=Yes U668=Yes U973=Yes U974=Yes WA94=Yes WS34=Yes WX03=Yes |
|||||||||
| 04 | Ultrasonic sensor, black | 5.7.2 RADIAL | 2 | 66209274429 | Shop at ECS Tuning | |||||
| 05 | Decoupling ring PDC torque converter | 12 | 66209283203 | Shop at ECS Tuning | ||||||
