Park Distance Control (PDC) for BMW MINI Countryman F60 One (2020)

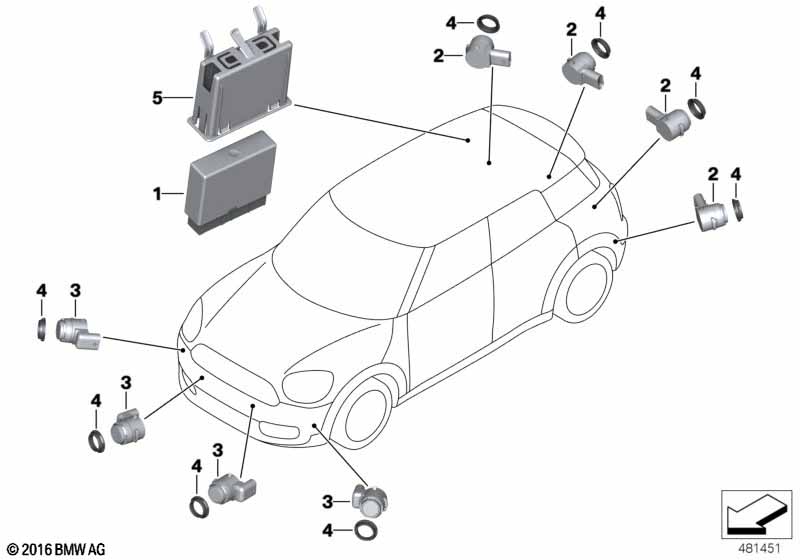

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit PDC | PDC-VA01 | 1 | 66335A02F95 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, black | 5.7.1 RADIAL | 4 | 66209274427 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, black | 5.7.1 AXIAL | 4 | 66209274428 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring PDC torque converter | 8 | 66209283203 | Shop at ECS Tuning | ||||||
| 05 | Holder | 1 | 66209306408 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Countryman F60 One Park Distance Control (PDC)?
- This technical diagram illustrates the Park Distance Control (PDC) within the Distance Systems, Cruise Control group for the MINI Countryman F60 One produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Control unit PDC (Part #66335A02F95).
- Which models use the hardware listed in this Park Distance Control (PDC)?
- The hardware and components featured in the Park Distance Control (PDC) are specific to the MINI Countryman F60 One produced during 2020. These technical specifications ensure that parts like the Control unit PDC (66335A02F95) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Park Distance Control (PDC) assembly?
- Each item in the Park Distance Control (PDC) corresponds to the numbered list below the illustration. For the MINI Countryman F60 One, you can identify the Control unit PDC by locating its position on the schematic, which then links to the official BMW part number 66335A02F95 for the Distance Systems, Cruise Control section.
