Park Distance Control (PDC) for BMW 7 Series G11 LCI 740dX (2022)

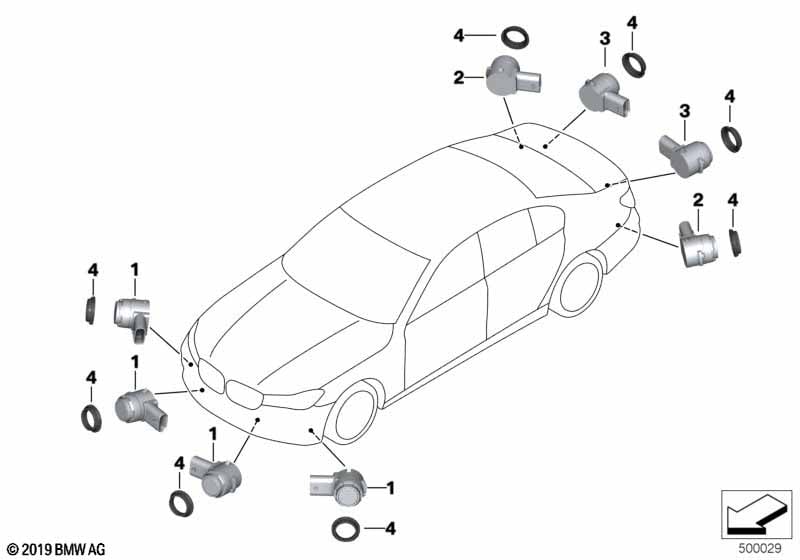

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 740dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Park Distance Control (PDC) or Parking assistance system or Parking assistance system Plus |
S508A=Yes S5DMA=Yes S5DNA=Yes |
||||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Ultrasonic sensor, black | M416/M475/U668 | 4 | 66209826784 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Ultrasonic sensor, color code | 4 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors | ||||||||||
| For vehicles with M Aerodynamics package and kaschmir-silver metallic |
S715A=No WA72=Yes |
|||||||||
| 01 | Ultrasonic sensor, Kashmir Silver | WA72 | 4 | 66209472210 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package and donington-grau metallic |
S715A=No WC28=Yes |
|||||||||
| 01 | Ultrasonic sensor, Donington gray | WC28 | 4 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and arktis-grau Brillanteffekt |
S715A=No WC27=Yes |
|||||||||
| 01 | Ultrasonic sensor, Arctic Gray | WC27 | 4 | 66209826957 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and imperial-blau brillant metallic |
S715A=No WA89=Yes |
|||||||||
| 01 | Ultrasonic sensor, Imperial Blue | WA89 | 4 | 66209827036 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Dravitgrau metallic |
S715A=No WC36=Yes |
|||||||||
| 01 | Ultrasonic sensor, Dravite Gray | WC36 | 4 | 66209827023 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and mineral-weiss metallic |
S715A=No WA96=Yes |
|||||||||
| 01 | Ultrasonic sensor, Mineral White | WA96 | 4 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and phytonic-blau metallic |
S715A=No WC1M=Yes |
|||||||||
| 01 | Ultrasonic sensor, Phytonic Blue | WC1M | 4 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and dark-shadow metallic |
S715A=No WB27=Yes |
|||||||||
| 01 | Ultrasonic sensor, Dark Shadow | WB27 | 4 | 66209826989 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and glacier-silber metallic |
S715A=No WA83=Yes |
|||||||||
| 01 | Ultrasonic sensor, Glacier Silver | WA83 | 4 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and alpinweiss 3 |
S715A=No U300=Yes |
|||||||||
| 01 | Ultrasonic sensor, Alpine White | U300 | 4 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and sophisto-grau brillant metallic |
S715A=No WA90=Yes |
|||||||||
| 01 | Ultrasonic sensor, Sophisto Gray | WA90 | 4 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Bernina gray amber effect metallic |
S715A=Yes WC3E=Yes |
|||||||||
| 01 | Ultrasonic sensor, Bernina Gray | WC3E | 4 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and alpina-blau metallic |
S715A=No WX06=Yes |
|||||||||
| 01 | Ultrasonic sensor, Alpina Blue II | WX06 | 4 | 66207998249 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Bernina gray amber effect metallic |
S715A=No WC3E=Yes |
|||||||||
| 01 | Ultrasonic sensor, Bernina Gray | WC3E | 4 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Tansanitblau II metallic |
S715A=No WC3Z=Yes |
|||||||||
| 01 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 4 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and royal-burgundy-red Brillanteffekt |
S715A=No WC25=Yes |
|||||||||
| 01 | Ultraschallsensor Royal Burgundy rot | WC25 | 4 | 66209827040 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Azurite black II metallic or azurit-metallic black |
S715A=No WC47=Yes WS34=Yes |
|||||||||
| 01 | Ultraschallsensor Azurit schwarz II | WC47 WS34 | 4 | 66207927916 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Almadinbraun II metallic or almandin-braun metallic |
S715A=No WC46=Yes WX14=Yes |
|||||||||
| 01 | Ultrasonic sensor, black | M416/M475/U668 | 4 | 66209826784 | Shop at ECS Tuning | |||||
| 01 | Ultrasonic sensor, Almandine Brown | WC46 WX14 | 4 | 66207927826 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Aventurinrot III metallic or Aventurine Red metallic |
S715A=No WC57=Yes WX1C=Yes |
|||||||||
| 01 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 4 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Ultrasonic sensor, Dark Shadow | WB27 | 2 | 66209826989 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors | ||||||||||
| For vehicles with M Aerodynamics package and kaschmir-silver metallic |
S715A=No WA72=Yes |
|||||||||
| 02 | Ultrasonic sensor, Kashmir Silver | WA72 | 2 | 66209472210 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with M Aerodynamics package and donington-grau metallic |
S715A=No WC28=Yes |
|||||||||
| 02 | Ultrasonic sensor, Donington gray | WC28 | 2 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and arktis-grau Brillanteffekt |
S715A=No WC27=Yes |
|||||||||
| 02 | Ultrasonic sensor, Arctic Gray | WC27 | 2 | 66209826957 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and imperial-blau brillant metallic |
S715A=No WA89=Yes |
|||||||||
| 02 | Ultrasonic sensor, Imperial Blue | WA89 | 2 | 66209827036 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Dravitgrau metallic |
S715A=No WC36=Yes |
|||||||||
| 02 | Ultrasonic sensor, Dravite Gray | WC36 | 2 | 66209827023 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and mineral-weiss metallic |
S715A=No WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and phytonic-blau metallic |
S715A=No WC1M=Yes |
|||||||||
| 02 | Ultrasonic sensor, Phytonic Blue | WC1M | 2 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and glacier-silber metallic |
S715A=No WA83=Yes |
|||||||||
| 02 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and alpinweiss 3 |
S715A=No U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and sophisto-grau brillant metallic |
S715A=No WA90=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and alpina-blau metallic |
S715A=No WX06=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpina Blue II | WX06 | 2 | 66207998249 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Bernina gray amber effect metallic |
S715A=No WC3E=Yes |
|||||||||
| 02 | Ultrasonic sensor, Bernina Gray | WC3E | 2 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Tansanitblau II metallic |
S715A=No WC3Z=Yes |
|||||||||
| 02 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and royal-burgundy-red Brillanteffekt |
S715A=No WC25=Yes |
|||||||||
| 02 | Ultraschallsensor Royal Burgundy rot | WC25 | 2 | 66209827040 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Azurite black II metallic or azurit-metallic black |
S715A=No WC47=Yes WS34=Yes |
|||||||||
| 02 | Ultraschallsensor Azurit schwarz II | WC47 WS34 | 2 | 66207927916 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Almadinbraun II metallic or almandin-braun metallic |
S715A=No WC46=Yes WX14=Yes |
|||||||||
| 02 | Ultrasonic sensor, Almandine Brown | WC46 WX14 | 2 | 66207927826 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and Aventurinrot III metallic or Aventurine Red metallic |
S715A=No WC57=Yes WX1C=Yes |
|||||||||
| 02 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 2 | 66205A08986 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors | ||||||||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with Dravitgrau metallic |
WC36=Yes |
|||||||||
| 03 | Ultrasonic sensor, Dravite Gray | WC36 | 2 | 66209827023 | Shop at ECS Tuning | |||||
| For vehicles with kaschmir-silver metallic |
WA72=Yes |
|||||||||
| 03 | Ultrasonic sensor, Kashmir Silver | WA72 | 2 | 66209472210 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with imperial-blau brillant metallic |
WA89=Yes |
|||||||||
| 03 | Ultrasonic sensor, Imperial Blue | WA89 | 2 | 66209827036 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 03 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with Bernina gray amber effect metallic |
WC3E=Yes |
|||||||||
| 03 | Ultrasonic sensor, Bernina Gray | WC3E | 2 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with donington-grau metallic |
WC28=Yes |
|||||||||
| 03 | Ultrasonic sensor, Donington gray | WC28 | 2 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with arktis-grau Brillanteffekt |
WC27=Yes |
|||||||||
| 03 | Ultrasonic sensor, Arctic Gray | WC27 | 2 | 66209826957 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 03 | Ultrasonic sensor, Phytonic Blue | WC1M | 2 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with royal-burgundy-red Brillanteffekt |
WC25=Yes |
|||||||||
| 03 | Ultraschallsensor Royal Burgundy rot | WC25 | 2 | 66209827040 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 03 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with Azurite black II metallic or azurit-metallic black |
WC47=Yes WS34=Yes |
|||||||||
| 03 | Ultraschallsensor Azurit schwarz II | WC47 WS34 | 2 | 66207927916 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic or Aventurine Red metallic |
WC57=Yes WX1C=Yes |
|||||||||
| 03 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 2 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with Almadinbraun II metallic or almandin-braun metallic |
WC46=Yes WX14=Yes |
|||||||||
| 03 | Ultrasonic sensor, Almandine Brown | WC46 WX14 | 2 | 66207927826 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
