Park Distance Control (PDC) for BMW 1 Series F40 118d (2024)

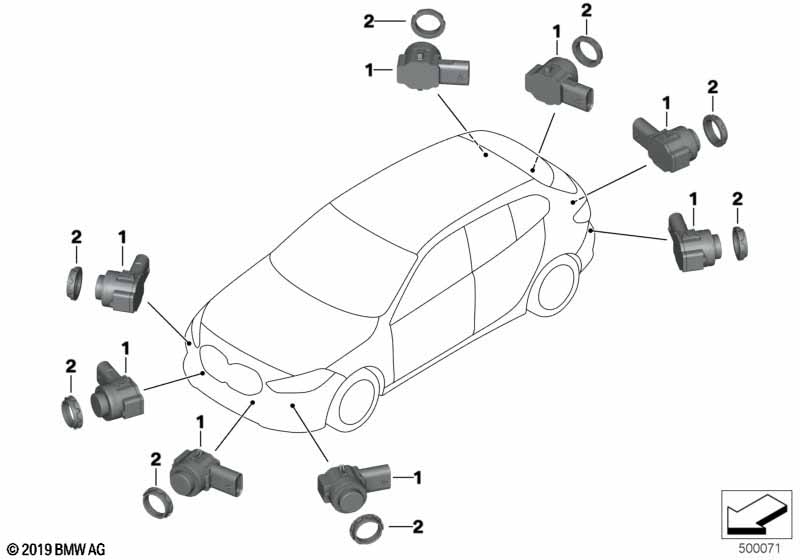

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 1 Series F40 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Park Distance Control (PDC) or Parking assistance system |
S508A=Yes S5DMA=Yes |
||||||||
| 01 | Ultrasonic sensor, color code | 8 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 01 | Ultrasonic sensor, Glacier Silver | WA83 | 8 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 01 | Ultrasonic sensor, Skyscraper gray | WC4W | 8 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with mineral-grau metallic |
WB39=Yes |
|||||||||
| 01 | Ultrasonic sensor, Mineral Gray | WB39 | 8 | 66209827060 | Shop at ECS Tuning | |||||
| For vehicles with mediterran-blau metallic |
WC10=Yes |
|||||||||
| 01 | Ultrasonic sensor, Mediterranean Blue | WC10 | 8 | 66207927778 | Shop at ECS Tuning | |||||
| For vehicles with Frozen pure grey metallic |
WC5A=Yes |
|||||||||
| 01 | Ultrasonic sensor, Frozen Pure gray | WC5A | 8 | 66207927974 | Shop at ECS Tuning | |||||
| For vehicles with Storm bay metallic |
WC3N=Yes |
|||||||||
| 01 | Ultrasonic sensor, Storm Bay | WC3N | 8 | 66207927798 | Shop at ECS Tuning | |||||
| For vehicles with Seaside blue metallic |
WC1R=Yes |
|||||||||
| 01 | Ultrasonic sensor, Seaside Blue | WC1R | 8 | 66207927794 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 01 | Ultrasonic sensor, Phytonic Blue | WC1M | 8 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 01 | Ultrasonic sensor Sunset Orange | WC1X | 8 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 01 | Ultrasonic sensor, Alpine White | U300 | 8 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 01 | Ultrasonic sensor, Mineral White | WA96 | 8 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with misano-blau metallic |
WC1D=Yes |
|||||||||
| 01 | Ultrasonic sensor, Misano Blue | WC1D | 8 | 66209472281 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with snappper-rocks-blue metallic |
WC1G=Yes |
|||||||||
| 01 | Ultrasonic sensor, Snapper Rocks Blue | WC1G | 8 | 66207927932 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 01 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 8 | 66209827056 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 01 | Ultrasonic sensor, black | M416/M475/U668 | 8 | 66209826784 | Shop at ECS Tuning | |||||
| 02 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
