Control unit ultrasonic sensor for BMW 3 Series G20 Sedan 330e (2019)

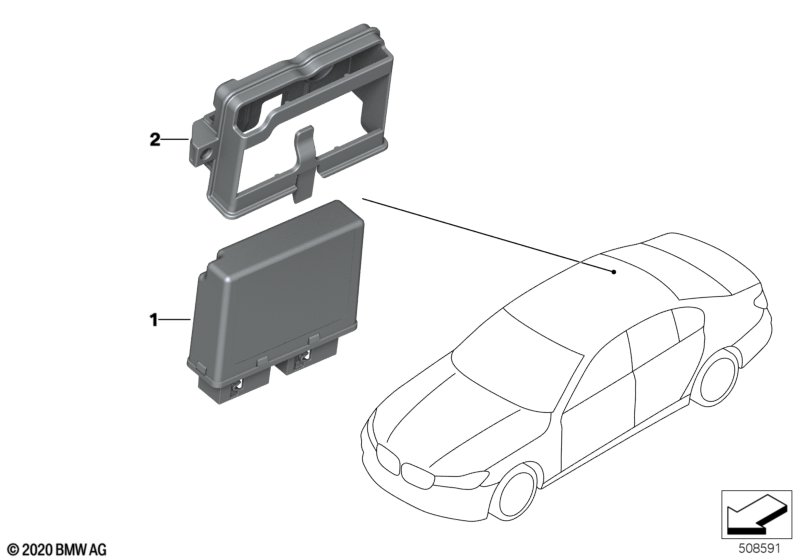

This Control unit ultrasonic sensor technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=Yes |
|||||||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 11/2023 | 66205A44585 | Shop at ECS Tuning | ||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 07/2024 | 66205B3A594 | Shop at ECS Tuning | ||||
| 01 | Control module for Park Assistant | HIGH | 1 | 66205B523A9 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=Yes S5DNA=No |
|||||||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 11/2023 | 66205A44585 | Shop at ECS Tuning | ||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 07/2024 | 66205B3A594 | Shop at ECS Tuning | ||||
| 01 | Control module for Park Assistant | HIGH | 1 | 66205B523A9 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=Yes |
|||||||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 11/2023 | 66205A44585 | Shop at ECS Tuning | ||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 07/2024 | 66205B3A594 | Shop at ECS Tuning | ||||
| 01 | Control module for Park Assistant | HIGH | 1 | 66205B523A9 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus |
S5DMA=No S5DNA=No |
|||||||||
| 01 | Control unit ultrasonic sensor | USS ECU LOW | 1 | 07/2024 | 66205A44586 | Shop at ECS Tuning | ||||
| 01 | Control unit ultrasonic sensor | USS ECU LOW | 1 | 66205B523B0 | Shop at ECS Tuning | |||||
| 02 | Control unit bracket, ultrasonic sensor | 1 | 61136991162 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series G20 Sedan 330e Control unit ultrasonic sensor?
- This technical diagram illustrates the Control unit ultrasonic sensor within the Distance Systems, Cruise Control group for the 3 Series G20 Sedan 330e produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the Control unit ultrasonic sensor (Part #66205A44585).
- Which models use the hardware listed in this Control unit ultrasonic sensor?
- The hardware and components featured in the Control unit ultrasonic sensor are specific to the 3 Series G20 Sedan 330e produced during 2019. These technical specifications ensure that parts like the Control unit ultrasonic sensor (66205A44585) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit ultrasonic sensor assembly?
- Each item in the Control unit ultrasonic sensor corresponds to the numbered list below the illustration. For the 3 Series G20 Sedan 330e, you can identify the Control unit ultrasonic sensor by locating its position on the schematic, which then links to the official BMW part number 66205A44585 for the Distance Systems, Cruise Control section.
