Surround View camera/PMA Plus for BMW 8 Series G14 Convertible 840dX (2024)

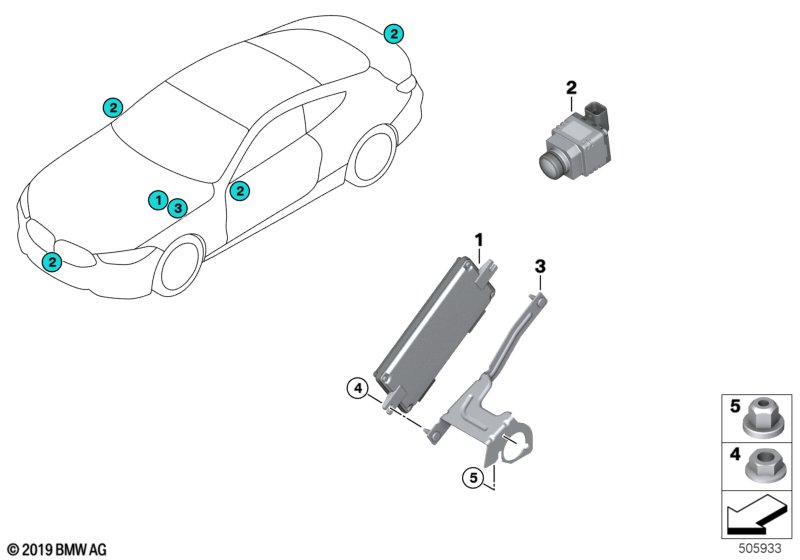

This Surround View camera/PMA Plus technical drawing provides a detailed breakdown of the assembly for the 8 Series G14 Convertible 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 01 | Control unit camera Surround View | ICAM2-ECU V2 | 1 | 03/2025 | 66535B39F25 | Shop at ECS Tuning | ||||
| 01 | Control unit camera Surround View | ICAM2-ECU V2 | 1 | 66535B48BE6 | Shop at ECS Tuning | |||||
| 02 | Surround View camera | 4 | 66535A0F6D7 | Shop at ECS Tuning | ||||||
| 03 | Bracket, control unit | RHD | 1 | 66539352755 | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G14 Convertible 840dX Surround View camera/PMA Plus?
- This technical diagram illustrates the Surround View camera/PMA Plus within the Distance Systems, Cruise Control group for the 8 Series G14 Convertible 840dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Control unit camera Surround View (Part #66535B39F25).
- Which models use the hardware listed in this Surround View camera/PMA Plus?
- The hardware and components featured in the Surround View camera/PMA Plus are specific to the 8 Series G14 Convertible 840dX produced during 2024. These technical specifications ensure that parts like the Control unit camera Surround View (66535B39F25) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Surround View camera/PMA Plus assembly?
- Each item in the Surround View camera/PMA Plus corresponds to the numbered list below the illustration. For the 8 Series G14 Convertible 840dX, you can identify the Control unit camera Surround View by locating its position on the schematic, which then links to the official BMW part number 66535B39F25 for the Distance Systems, Cruise Control section.
