Parking Manoeuvre Assistant (PMA) for BMW 5 Series F90 M5 LCI M5 (2023)

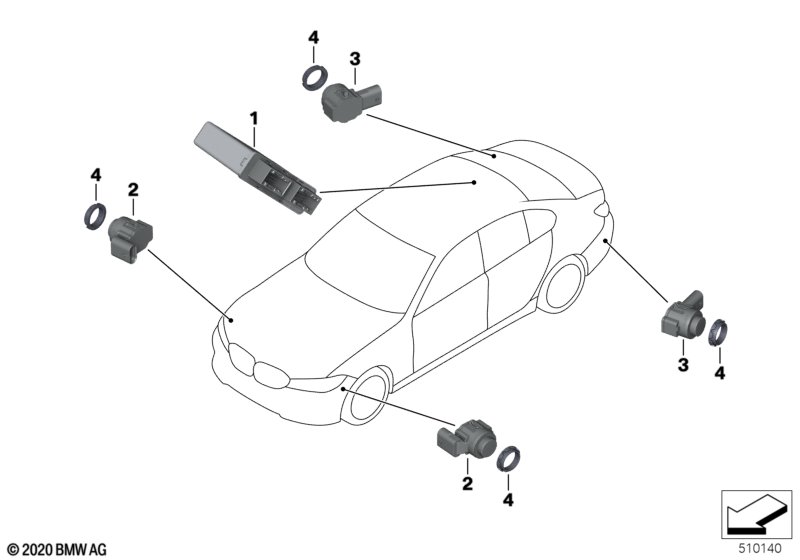

This Parking Manoeuvre Assistant (PMA) technical drawing provides a detailed breakdown of the assembly for the 5 Series F90 M5 LCI M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 11/2023 | 66205A44585 | Shop at ECS Tuning | ||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 07/2024 | 66205B3A594 | Shop at ECS Tuning | ||||
| 01 | Control module for Park Assistant | HIGH | 1 | 66205B523A9 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 2 | 66205A1F865 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with marina-bay-blau metallic |
WC1K=Yes |
|||||||||
| 02 | Ultrasonic sensor, Marina Bay Blue | WC1K | 2 | 66207927837 | Shop at ECS Tuning | |||||
| For vehicles with Motegi Red metallic |
WC3K=Yes |
|||||||||
| 02 | Ultrasonic sensor, Motegi Red | WC3K | 2 | 66207927849 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 02 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827055 | Shop at ECS Tuning | |||||
| For vehicles with Alvitgrau metallic |
WC5E=Yes |
|||||||||
| 02 | Ultrasonic sensor Alvite Gray | WC5E | 2 | 66205A04CA5 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 02 | Ultrasonic sensor Aventurin Red III | WC57 | 2 | 66205A08989 | Shop at ECS Tuning | |||||
| For vehicles with Champagne quarz II metallic |
WC48=Yes |
|||||||||
| 02 | Ultrasonic sensor, Champagne Quartz II | WC48 | 2 | 66207927941 | Shop at ECS Tuning | |||||
| For vehicles with donington-grau metallic |
WC28=Yes |
|||||||||
| 02 | Ultrasonic sensor, Donington gray | WC28 | 2 | 66209827051 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66209826996 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 02 | Ultrasonic sensor, San Remo green | WC4E | 2 | 66207927949 | Shop at ECS Tuning | |||||
| For vehicles with Oxide grey II metallic |
WC4A=Yes |
|||||||||
| 02 | Ultrasonic sensor, Oxide Gray II | WC4A | 2 | 66207927927 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826952 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66209826964 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 02 | Ultrasonic sensor, Skyscraper gray | WC4W | 2 | 66207927957 | Shop at ECS Tuning | |||||
| For vehicles with brands-hatch-grey metallic |
WC17=Yes |
|||||||||
| 02 | Ultrasonic sensor, Brands Hatch Gray | WC17 | 2 | 66207927853 | Shop at ECS Tuning | |||||
| For vehicles with snappper-rocks-blue metallic |
WC1G=Yes |
|||||||||
| 02 | Ultrasonic sensor, Snapper Rocks Blue | WC1G | 2 | 66207927935 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | M416 M475 U668 | 2 | 66209826787 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with marina-bay-blau metallic |
WC1K=Yes |
|||||||||
| 03 | Ultrasonic sensor, Marina Bay Blue | WC1K | 2 | 66207927834 | Shop at ECS Tuning | |||||
| For vehicles with Motegi Red metallic |
WC3K=Yes |
|||||||||
| 03 | Ultrasonic sensor, Motegi Red | WC3K | 2 | 66207927846 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 03 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with Alvitgrau metallic |
WC5E=Yes |
|||||||||
| 03 | Ultrasonic sensor Alvite Gray | WC5E | 2 | 66205A04CA2 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 03 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 2 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with Champagne quarz II metallic |
WC48=Yes |
|||||||||
| 03 | Ultrasonic sensor, Champagne Quartz II | WC48 | 2 | 66207927938 | Shop at ECS Tuning | |||||
| For vehicles with donington-grau metallic |
WC28=Yes |
|||||||||
| 03 | Ultrasonic sensor, Donington gray | WC28 | 2 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 03 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66209826993 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 03 | Ultrasonic sensor, San Remo green | WC4E | 2 | 66207927946 | Shop at ECS Tuning | |||||
| For vehicles with Oxide grey II metallic |
WC4A=Yes |
|||||||||
| 03 | Ultrasonic sensor, Oxide Gray II | WC4A | 2 | 66207927924 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 03 | Ultrasonic sensor, Skyscraper gray | WC4W | 2 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with brands-hatch-grey metallic |
WC17=Yes |
|||||||||
| 03 | Ultrasonic sensor, Brands Hatch Gray | WC17 | 2 | 66207927850 | Shop at ECS Tuning | |||||
| For vehicles with snappper-rocks-blue metallic |
WC1G=Yes |
|||||||||
| 03 | Ultrasonic sensor, Snapper Rocks Blue | WC1G | 2 | 66207927932 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring PDC torque converter | 4 | 66209283203 | Shop at ECS Tuning | ||||||
