Park Distance Control (PDC) for BMW 5 Series G31 Touring LCI 520d (2024)

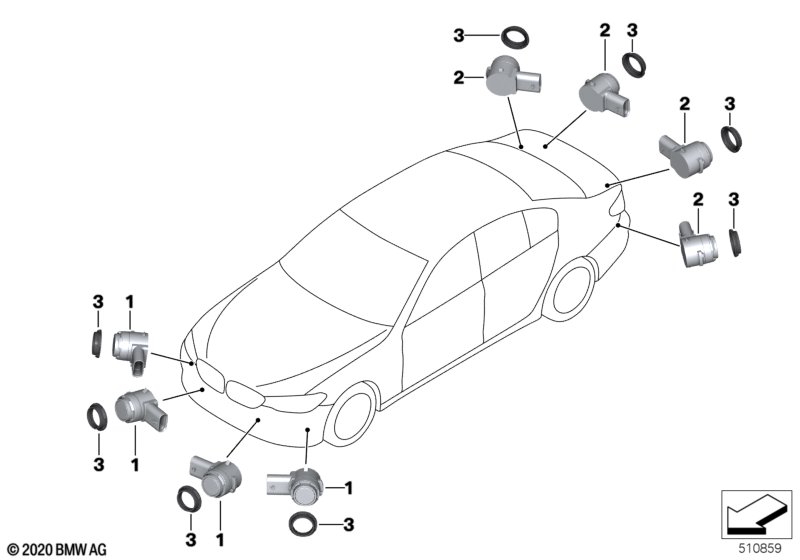

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package and ALPINA Package |
S5DMA=No S5DNA=No S715A=No S9XAA=No |
||||||||
| 01 | Ultrasonic sensor, black | 5.7.1 RADIAL | 4 | 66209274427 | Shop at ECS Tuning | |||||
| 01 | Ultrasonic sensor, color code | 4 | 66202409650 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 01 | Ultrasonic sensor, Blue stone | WC2Y | 4 | 66206819066 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 01 | Ultrasonic sensor Sunset Orange | WC1X | 4 | 66206848088 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 01 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 4 | 66339855382 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 01 | Ultrasonic sensor, Phytonic Blue | WC1M | 4 | 66206840237 | Shop at ECS Tuning | |||||
| For vehicles with Champagne quarz II metallic |
WC48=Yes |
|||||||||
| 01 | Ultrasonic sensor, Champagne Quartz II | WC48 | 4 | 66209459584 | Shop at ECS Tuning | |||||
| For vehicles with Alvitgrau metallic |
WC5E=Yes |
|||||||||
| 01 | Ultrasonic sensor Alvite Gray | WC5E | 4 | 66205A04C97 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 01 | Ultrasonic sensor, Alpine White | U300 | 4 | 66209283750 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 01 | Ultrasonic sensor, Mineral White | WA96 | 4 | 66209283752 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 01 | Ultrasonic sensor, San Remo green | WC4E | 4 | 66209824547 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 01 | Ultrasonic sensor, Skyscraper gray | WC4W | 4 | 66209824544 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 01 | Ultrasonic sensor, Glacier Silver | WA83 | 4 | 66209283754 | Shop at ECS Tuning | |||||
| For vehicles with Bernina gray amber effect metallic |
WC3E=Yes |
|||||||||
| 01 | Ultrasonic sensor, Bernina Gray | WC3E | 4 | 66209107853 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic or sophisto-grau Brillant/frozen-grey or sophisto-grau Brillant/BMW i blau |
WA90=Yes WC22=Yes WC23=Yes |
|||||||||
| 01 | Ultrasonic sensor, Sophisto gray II | WA90 WC22/23/50 | 4 | 66209306410 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 4 | 66202409650 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue stone | WC2Y | 4 | 66206819066 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 02 | Ultrasonic sensor Sunset Orange | WC1X | 4 | 66206848088 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 02 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 4 | 66339855382 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 02 | Ultrasonic sensor, Phytonic Blue | WC1M | 4 | 66206840237 | Shop at ECS Tuning | |||||
| For vehicles with Champagne quarz II metallic |
WC48=Yes |
|||||||||
| 02 | Ultrasonic sensor, Champagne Quartz II | WC48 | 4 | 66209459584 | Shop at ECS Tuning | |||||
| For vehicles with Alvitgrau metallic |
WC5E=Yes |
|||||||||
| 02 | Ultrasonic sensor Alvite Gray | WC5E | 4 | 66205A04C97 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 4 | 66209283750 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral White | WA96 | 4 | 66209283752 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 02 | Ultrasonic sensor, San Remo green | WC4E | 4 | 66209824547 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 02 | Ultrasonic sensor, Skyscraper gray | WC4W | 4 | 66209824544 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 02 | Ultrasonic sensor, Glacier Silver | WA83 | 4 | 66209283754 | Shop at ECS Tuning | |||||
| For vehicles with Bernina gray amber effect metallic |
WC3E=Yes |
|||||||||
| 02 | Ultrasonic sensor, Bernina Gray | WC3E | 4 | 66209107853 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic or sophisto-grau Brillant/frozen-grey or sophisto-grau Brillant/BMW i blau |
WA90=Yes WC22=Yes WC23=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto gray II | WA90 WC22/23/50 | 4 | 66209306410 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 or without application or without application or midnight-black metallic or azurit-metallic black or rubin-metallic black |
M416=Yes M475=Yes U668=Yes U973=Yes U974=Yes WA94=Yes WS34=Yes WX03=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | 5.7.1 RADIAL | 4 | 66209274427 | Shop at ECS Tuning | |||||
| 03 | Decoupling ring PDC torque converter | 8 | 66209283203 | Shop at ECS Tuning | ||||||
