Park Distance Control (PDC) for BMW 5 Series G30 LCI 520e (2022)

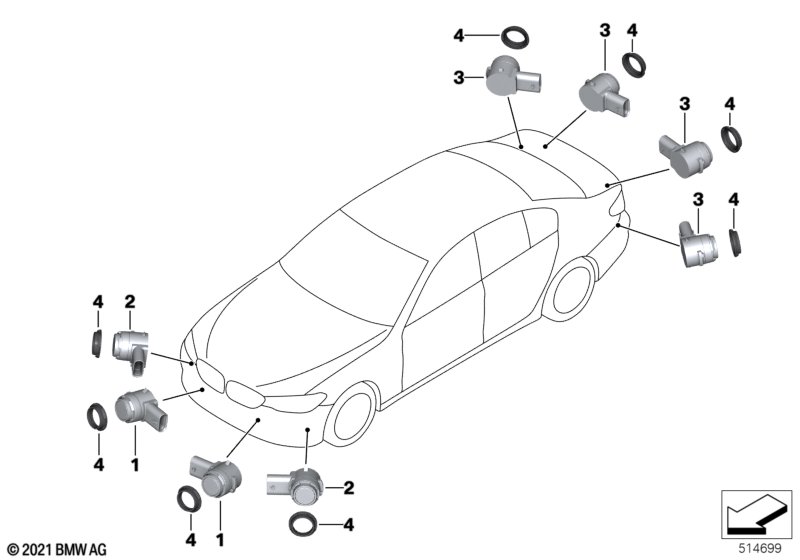

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Parking assistance system or Parking assistance system Plus or M Aerodynamics package |
S5DMA=Yes S5DNA=Yes S715A=Yes |
||||||||
| 01 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with imperial-blau brillant metallic |
WA89=Yes |
|||||||||
| 01 | Ultrasonic sensor, Imperial Blue | WA89 | 2 | 66209827036 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 01 | Ultrasonic sensor, San Remo green | WC4E | 2 | 66207927946 | Shop at ECS Tuning | |||||
| For vehicles with Arctic race blue metallic |
WC4F=Yes |
|||||||||
| 01 | Ultrasonic sensor, Arctic Race blue | WC4F | 2 | 66207927942 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 01 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 01 | Ultrasonic sensor, Skyscraper gray | WC4W | 2 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with Bernina gray amber effect metallic |
WC3E=Yes |
|||||||||
| 01 | Ultrasonic sensor, Bernina Gray | WC3E | 2 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 01 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66209826993 | Shop at ECS Tuning | |||||
| For vehicles with Champagne quarz II metallic |
WC48=Yes |
|||||||||
| 01 | Ultrasonic sensor, Champagne Quartz II | WC48 | 2 | 66207927938 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 01 | Ultrasonic sensor Sunset Orange | WC1X | 2 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 01 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 01 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 01 | Ultrasonic sensor, Phytonic Blue | WC1M | 2 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 01 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 01 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with donington-grau metallic |
WC28=Yes |
|||||||||
| 01 | Ultrasonic sensor, Donington gray | WC28 | 2 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with Alvitgrau metallic |
WC5E=Yes |
|||||||||
| 01 | Ultrasonic sensor Alvite Gray | WC5E | 2 | 66205A04CA2 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic or Aventurine Red metallic |
WC57=Yes WX1C=Yes |
|||||||||
| 01 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 2 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 01 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with M Aerodynamics package and ALPINA Package |
S715A=Yes S9XAA=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package |
S715A=Yes S9XAA=No |
|||||||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package |
S715A=No S9XAA=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and imperial-blau brillant metallic |
S715A=No S9XAA=No WA89=Yes |
|||||||||
| 02 | Ultrasonic sensor, Imperial Blue | WA89 | 2 | 66209827036 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and blue-stone metallic |
S715A=No S9XAA=No WC2Y=Yes |
|||||||||
| 02 | Ultrasonic sensor, Blue stone | WC2Y | 2 | 66209826993 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Skyscraper grau metallic |
S715A=No S9XAA=No WC4W=Yes |
|||||||||
| 02 | Ultrasonic sensor, Skyscraper gray | WC4W | 2 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Alvitgrau metallic |
S715A=No S9XAA=No WC5E=Yes |
|||||||||
| 02 | Ultrasonic sensor Alvite Gray | WC5E | 2 | 66205A04CA2 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and donington-grau metallic |
S715A=No S9XAA=No WC28=Yes |
|||||||||
| 02 | Ultrasonic sensor, Donington gray | WC28 | 2 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and alpinweiss 3 |
S715A=No S9XAA=No U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Arctic race blue metallic |
S715A=No S9XAA=No WC4F=Yes |
|||||||||
| 02 | Ultrasonic sensor, Arctic Race blue | WC4F | 2 | 66207927942 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Bernina gray amber effect metallic |
S715A=No S9XAA=No WC3E=Yes |
|||||||||
| 02 | Ultrasonic sensor, Bernina Gray | WC3E | 2 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Champagne quarz II metallic |
S715A=No S9XAA=No WC48=Yes |
|||||||||
| 02 | Ultrasonic sensor, Champagne Quartz II | WC48 | 2 | 66207927938 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and sophisto-grau brillant metallic |
S715A=No S9XAA=No WA90=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Tansanitblau II metallic |
S715A=No S9XAA=No WC3Z=Yes |
|||||||||
| 02 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Sunset orange metallic |
S715A=No S9XAA=No WC1X=Yes |
|||||||||
| 02 | Ultrasonic sensor Sunset Orange | WC1X | 2 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and phytonic-blau metallic |
S715A=No S9XAA=No WC1M=Yes |
|||||||||
| 02 | Ultrasonic sensor, Phytonic Blue | WC1M | 2 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and mineral-weiss metallic |
S715A=No S9XAA=No WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and glacier-silber metallic |
S715A=No S9XAA=No WA83=Yes |
|||||||||
| 02 | Ultrasonic sensor, Glacier Silver | WA83 | 2 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Sanremo green metallic |
S715A=No S9XAA=No WC4E=Yes |
|||||||||
| 02 | Ultrasonic sensor, San Remo green | WC4E | 2 | 66207927946 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and ALPINA Package and Aventurinrot III metallic or Aventurine Red metallic |
S715A=No S9XAA=No WC57=Yes WX1C=Yes |
|||||||||
| 02 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 2 | 66205A08986 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, color code | 4 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with imperial-blau brillant metallic |
WA89=Yes |
|||||||||
| 03 | Ultrasonic sensor, Imperial Blue | WA89 | 4 | 66209827036 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 03 | Ultrasonic sensor, San Remo green | WC4E | 4 | 66207927946 | Shop at ECS Tuning | |||||
| For vehicles with Arctic race blue metallic |
WC4F=Yes |
|||||||||
| 03 | Ultrasonic sensor, Arctic Race blue | WC4F | 2 | 66207927942 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 4 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 03 | Ultrasonic sensor, Skyscraper gray | WC4W | 4 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with Bernina gray amber effect metallic |
WC3E=Yes |
|||||||||
| 03 | Ultrasonic sensor, Bernina Gray | WC3E | 4 | 66209827032 | Shop at ECS Tuning | |||||
| For vehicles with blue-stone metallic |
WC2Y=Yes |
|||||||||
| 03 | Ultrasonic sensor, Blue stone | WC2Y | 4 | 66209826993 | Shop at ECS Tuning | |||||
| For vehicles with Champagne quarz II metallic |
WC48=Yes |
|||||||||
| 03 | Ultrasonic sensor, Champagne Quartz II | WC48 | 4 | 66207927938 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 03 | Ultrasonic sensor Sunset Orange | WC1X | 4 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sophisto Gray | WA90 | 4 | 66209826961 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 03 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 4 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 03 | Ultrasonic sensor, Phytonic Blue | WC1M | 4 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral White | WA96 | 4 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 03 | Ultrasonic sensor, Glacier Silver | WA83 | 4 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with donington-grau metallic |
WC28=Yes |
|||||||||
| 03 | Ultrasonic sensor, Donington gray | WC28 | 4 | 66209827048 | Shop at ECS Tuning | |||||
| For vehicles with Alvitgrau metallic |
WC5E=Yes |
|||||||||
| 03 | Ultrasonic sensor Alvite Gray | WC5E | 4 | 66205A04CA2 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 03 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 4 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 4 | 66209826784 | Shop at ECS Tuning | |||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=Yes S5DNA=Yes S715A=Yes |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=Yes S5DNA=Yes S715A=No |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=Yes S5DNA=No S715A=Yes |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=Yes S5DNA=No S715A=No |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=No S5DNA=Yes S715A=Yes |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=No S5DNA=Yes S715A=No |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system and Parking assistance system Plus and M Aerodynamics package |
S5DMA=No S5DNA=No S715A=Yes |
|||||||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
