Park Distance Control (PDC) for BMW 4 Series G26 Gran Coupé 420dX (2024)

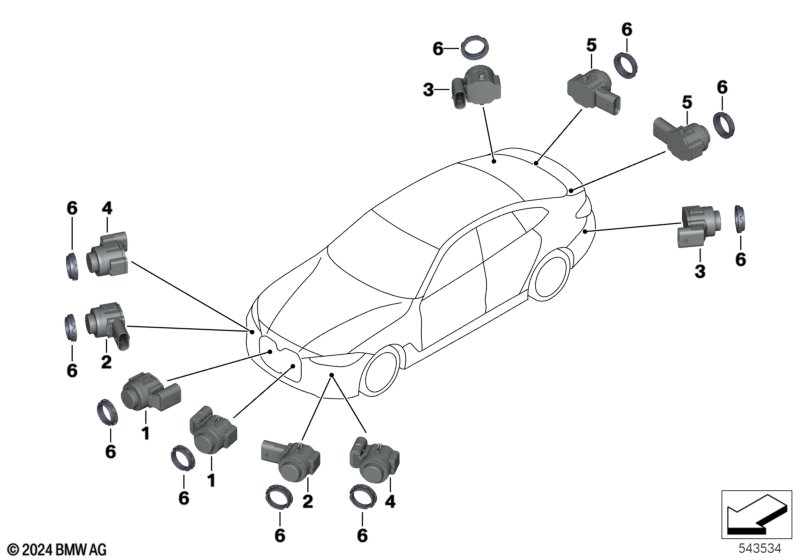

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé 420dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.

Park Distance Control (PDC)
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ultrasonic sensor, black M416/M475/U668 2 66209826785 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
S715A=No
02 Ultrasonic sensor, color code 2 66205A1F7B5 Shop at ECS Tuning
Control number for individual colors
Attention, important info for
vehicles with individual painting:
After entering the vehicle
identification number in
"Vehicle details", select the
"Equipment" option.
For vehicles with individual painting,
the key number
must be searched for/selected manually
in the condition evaluation, which
allows
the sensor to appear in the correct
color.
If the key number cannot be found in the
list, the sensor color code must be
ordered with the
appropriate key number.
For vehicles with
M Aerodynamics package
and
Fire Red Metallic
S715A=No

WC68=Yes
02 Ultrasonic sensor, Fire Red metallic WC68 2 66205A69B52 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Skyscraper grau metallic
S715A=No

WC4W=Yes
02 Ultrasonic sensor, Skyscraper gray WC4W 2 66207927954 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Sunset orange metallic
S715A=No

WC1X=Yes
02 Ultrasonic sensor Sunset Orange WC1X 2 66209827001 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
alpinweiss 3
S715A=No

U300=Yes
02 Ultrasonic sensor, Alpine White U300 2 66209826949 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Tansanitblau II metallic
S715A=No

WC3Z=Yes
02 Ultrasonic sensor, Tanzanite Blue WC3Z 2 66209827052 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Portimao blau metallic
S715A=No

WC31=Yes
02 Ultrasonic sensor, Portimao Blue WC31 2 66207927814 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
mineral-weiss metallic
S715A=No

WA96=Yes
02 Ultrasonic sensor, Mineral White WA96 2 66209826953 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Dravitgrau metallic
S715A=No

WC36=Yes
02 Ultrasonic sensor, Dravite Gray WC36 2 66209827023 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Sanremo green metallic
S715A=No

WC4E=Yes
02 Ultrasonic sensor, San Remo green WC4E 2 66207927946 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Aventurinrot III metallic
S715A=No

WC57=Yes
02 Ultrasonic sensor Aventurin Red III WC57/WX1C 2 66205A08986 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Brooklyn grau metallic
S715A=No

WC4P=Yes
02 Ultrasonic sensor, Brooklyn gray WC4P 2 66207927950 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Cape York Green metallic
S715A=No

WC5Y=Yes
02 Ultrasonic sensor CapeYorkGreen metallic WC5Y 2 66205A7D4E0 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
  carbon-schwarz
  or
  black-sapphire metallic
  or
  black 2
S715A=No

M416=Yes

M475=Yes

U668=Yes
02 Ultrasonic sensor, black M416/M475/U668 2 66209826784 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
S715A=No
03 Ultrasonic sensor, color code 2 66205A1F822 Shop at ECS Tuning
Control number for individual colors
Attention, important info for
vehicles with individual painting:
After entering the vehicle
identification number in
"Vehicle details", select the
"Equipment" option.
For vehicles with individual painting,
the key number
must be searched for/selected manually
in the condition evaluation, which
allows
the sensor to appear in the correct
color.
If the key number cannot be found in the
list, the sensor color code must be
ordered with the
appropriate key number.
For vehicles with
M Aerodynamics package
S715A=Yes
03 Ultrasonic sensor, Dark Shadow WB27 2 66209826990 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Fire Red Metallic
S715A=No

WC68=Yes
03 Ultrasonic sensor, Fire Red metallic WC68 2 66205A69B56 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Skyscraper grau metallic
S715A=No

WC4W=Yes
03 Ultrasonic sensor, Skyscraper gray WC4W 2 66207927955 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Sunset orange metallic
S715A=No

WC1X=Yes
03 Ultrasonic sensor Sunset Orange WC1X 2 66209827002 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
alpinweiss 3
S715A=No

U300=Yes
03 Ultrasonic sensor, Alpine White U300 2 66209826950 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Tansanitblau II metallic
S715A=No

WC3Z=Yes
03 Ultrasonic sensor, Tanzanite Blue WC3Z 2 66209827053 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Portimao blau metallic
S715A=No

WC31=Yes
03 Ultrasonic sensor, Portimao Blue WC31 2 66207927815 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
mineral-weiss metallic
S715A=No

WA96=Yes
03 Ultrasonic sensor, Mineral White WA96 2 66209826954 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Dravitgrau metallic
S715A=No

WC36=Yes
03 Ultrasonic sensor, Dravite Gray WC36 2 66209827024 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Sanremo green metallic
S715A=No

WC4E=Yes
03 Ultrasonic sensor, San Remo green WC4E 2 66207927947 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Aventurinrot III metallic
S715A=No

WC57=Yes
03 Ultrasonic sensor Aventurin Red III WC57 2 66205A08987 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Brooklyn grau metallic
S715A=No

WC4P=Yes
03 Ultrasonic sensor, Brooklyn gray WC4P 2 66207927951 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
Cape York Green metallic
S715A=No

WC5Y=Yes
03 Ultrasonic sensor CapeYorkGreen metallic WC5Y 2 66205A7D4E1 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
and
  carbon-schwarz
  or
  black-sapphire metallic
  or
  black 2
S715A=No

M416=Yes

M475=Yes

U668=Yes
03 Ultrasonic sensor, black M416/M475/U668 2 66209826785 Shop at ECS Tuning
For vehicles with
M Aerodynamics package
S715A=Yes
04 Ultrasonic sensor, black M416/M475/U668 2 66209826785 Shop at ECS Tuning
05 Ultrasonic sensor, color code 2 66205A1F7B5 Shop at ECS Tuning
Control number for individual colors
Attention, important info for
vehicles with individual painting:
After entering the vehicle
identification number in
"Vehicle details", select the
"Equipment" option.
For vehicles with individual painting,
the key number
must be searched for/selected manually
in the condition evaluation, which
allows
the sensor to appear in the correct
color.
If the key number cannot be found in the
list, the sensor color code must be
ordered with the
appropriate key number.
For vehicles with
alpinweiss 3
U300=Yes
05 Ultrasonic sensor, Alpine White U300 2 66209826949 Shop at ECS Tuning
For vehicles with
Sanremo green metallic
WC4E=Yes
05 Ultrasonic sensor, San Remo green WC4E 2 66207927946 Shop at ECS Tuning
For vehicles with
Cape York Green metallic
WC5Y=Yes
05 Ultrasonic sensor CapeYorkGreen metallic WC5Y 2 66205A7D4E0 Shop at ECS Tuning
For vehicles with
Brooklyn grau metallic
WC4P=Yes
05 Ultrasonic sensor, Brooklyn gray WC4P 2 66207927950 Shop at ECS Tuning
For vehicles with
Sunset orange metallic
WC1X=Yes
05 Ultrasonic sensor Sunset Orange WC1X 2 66209827001 Shop at ECS Tuning
For vehicles with
Fire Red Metallic
WC68=Yes
05 Ultrasonic sensor, Fire Red metallic WC68 2 66205A69B52 Shop at ECS Tuning
For vehicles with
Aventurinrot III metallic
WC57=Yes
05 Ultrasonic sensor Aventurin Red III WC57/WX1C 2 66205A08986 Shop at ECS Tuning
For vehicles with
Dravitgrau metallic
WC36=Yes
05 Ultrasonic sensor, Dravite Gray WC36 2 66209827023 Shop at ECS Tuning
For vehicles with
Skyscraper grau metallic
WC4W=Yes
05 Ultrasonic sensor, Skyscraper gray WC4W 2 66207927954 Shop at ECS Tuning
For vehicles with
Tansanitblau II metallic
WC3Z=Yes
05 Ultrasonic sensor, Tanzanite Blue WC3Z 2 66209827052 Shop at ECS Tuning
For vehicles with
Portimao blau metallic
WC31=Yes
05 Ultrasonic sensor, Portimao Blue WC31 2 66207927814 Shop at ECS Tuning
For vehicles with
mineral-weiss metallic
WA96=Yes
05 Ultrasonic sensor, Mineral White WA96 2 66209826953 Shop at ECS Tuning
For vehicles with
carbon-schwarz
or
black-sapphire metallic
or
black 2
M416=Yes

M475=Yes

U668=Yes
05 Ultrasonic sensor, black M416/M475/U668 2 66209826784 Shop at ECS Tuning
06 Decoupling ring 8 66209390408 Shop at ECS Tuning
