Active cruise control Stop/Go for BMW 6 Series E63 LCI 635d (2010)

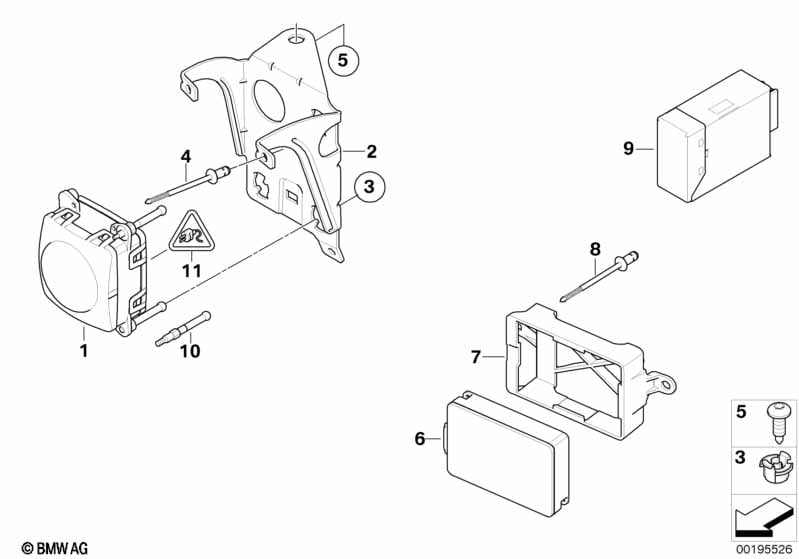

This Active cruise control Stop/Go technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 LCI 635d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 01 | Sensor LRR | 1 | 66316781590 | $1912.93 | Shop at ECS Tuning | |||||
| 02 | Bracket for sensor, LRR | 1 | 66316777307 | $13.00 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 03 | Adjustment equipment | 3 | 66316762520 | $1.90 | Shop at ECS Tuning | |||||
| 04 | Blind rivet | D = 4MM | 2 | 66316777308 | $0.33 | Shop at ECS Tuning | ||||
| 06 | Sensor SRR | 2 | 66316790877 | $545.42 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket for sensor, SRR | 1 | 66316777309 | $4.58 | Shop at ECS Tuning | |||||
| For vehicles with Active cruise control+Stop&Go function |
S5DFA=Yes |
|||||||||
| 09 | Control unit LDM | 1 | 66316784844 | $609.74 | Shop at ECS Tuning | |||||
| 10 | Repair kit | 1 | 66316786711 | $47.25 | ENDED | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 8 POL. | 8 | 61138364624 | $4.07 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MQS ELA | 0.2-0.5 MM² SN | 1 | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Terminal socket MQS ELA | 0,5-0,75 MM² AG | 1 | 61136931880 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
