Control unit ultrasonic sensor for BMW 2 Series F78 Gran Coupé 225L (2025)

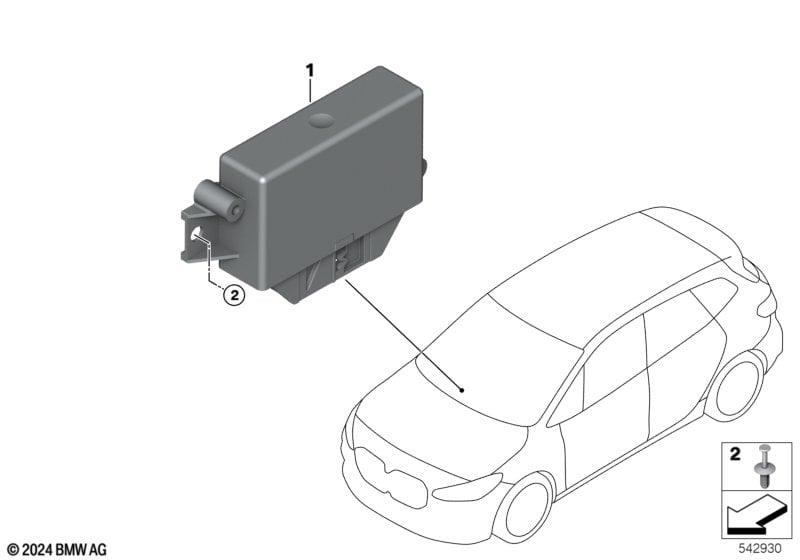

This Control unit ultrasonic sensor technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 01 | Control unit ultrasonic sensor | HIGH | 1 | 66205B39BC7 | Shop at ECS Tuning | |||||
| 02 | Expanding rivet | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F78 Gran Coupé 225L Control unit ultrasonic sensor?
- This technical diagram illustrates the Control unit ultrasonic sensor within the Distance Systems, Cruise Control group for the 2 Series F78 Gran Coupé 225L produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Control unit ultrasonic sensor (Part #66205B39BC7).
- Which models use the hardware listed in this Control unit ultrasonic sensor?
- The hardware and components featured in the Control unit ultrasonic sensor are specific to the 2 Series F78 Gran Coupé 225L produced during 2025. These technical specifications ensure that parts like the Control unit ultrasonic sensor (66205B39BC7) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Control unit ultrasonic sensor assembly?
- Each item in the Control unit ultrasonic sensor corresponds to the numbered list below the illustration. For the 2 Series F78 Gran Coupé 225L, you can identify the Control unit ultrasonic sensor by locating its position on the schematic, which then links to the official BMW part number 66205B39BC7 for the Distance Systems, Cruise Control section.
