Park Distance Control (PDC) for BMW 3 Series G80 M3 M3 (2024)

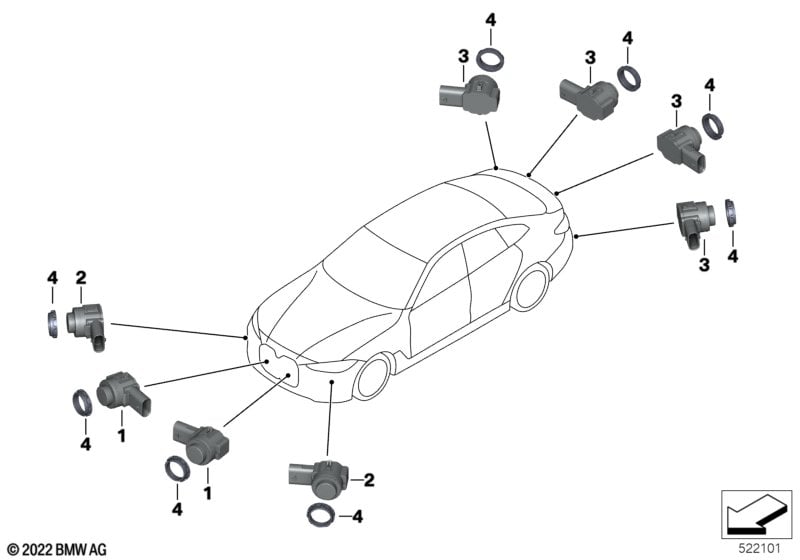

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with alpina-blau metallic |
WX06=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpina Blue II | WX06 | 2 | 66207998249 | Shop at ECS Tuning | |||||
| For vehicles with Vermontbronze metallic |
WC1Z=Yes |
|||||||||
| 02 | Ultrasonic sensor, Vermont Bronze | WC1Z | 2 | 66209826985 | Shop at ECS Tuning | |||||
| For vehicles with Brooklyn grau metallic |
WC4P=Yes |
|||||||||
| 02 | Ultrasonic sensor, Brooklyn gray | WC4P | 2 | 66207927950 | Shop at ECS Tuning | |||||
| For vehicles with Dravitgrau metallic |
WC36=Yes |
|||||||||
| 02 | Ultrasonic sensor, Dravite Gray | WC36 | 2 | 66209827023 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 02 | Ultrasonic sensor, Skyscraper gray | WC4W | 2 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 02 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 2 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with Toronto red, metallic |
WC3G=Yes |
|||||||||
| 02 | Ultrasonic sensor, Toronto red | WC3G | 2 | 66207927830 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 02 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 2 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with Sao paulo gelb |
YC4H=Yes |
|||||||||
| 02 | Ultraschallsensor Sao Paulo gelb | WC2S YC4H | 2 | 66207927966 | Shop at ECS Tuning | |||||
| For vehicles with Isle of man green metallic |
WC4G=Yes |
|||||||||
| 02 | Ultrasonic sensor, Isle of Man Green | WC4G | 2 | 66207927970 | Shop at ECS Tuning | |||||
| For vehicles with Oxide grey II metallic |
WC4A=Yes |
|||||||||
| 02 | Ultrasonic sensor, Oxide Gray II | WC4A | 2 | 66207927924 | Shop at ECS Tuning | |||||
| For vehicles with Portimao blau metallic |
WC31=Yes |
|||||||||
| 02 | Ultrasonic sensor, Portimao Blue | WC31 | 2 | 66207927814 | Shop at ECS Tuning | |||||
| For vehicles with black-sapphire metallic or dark-shadow metallic |
M475=Yes WB27=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, color code | 4 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with galvanic-gold metallic |
WC1P=Yes |
|||||||||
| 03 | Ultrasonic sensor, Galvanic Gold | WC1P | 4 | 66207927758 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 03 | Ultrasonic sensor Sunset Orange | WC1X | 4 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with dark-shadow metallic |
WB27=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 4 | 66209826784 | Shop at ECS Tuning | |||||
| For vehicles with Vermontbronze metallic |
WC1Z=Yes |
|||||||||
| 03 | Ultrasonic sensor, Vermont Bronze | WC1Z | 4 | 66209826985 | Shop at ECS Tuning | |||||
| For vehicles with Brooklyn grau metallic |
WC4P=Yes |
|||||||||
| 03 | Ultrasonic sensor, Brooklyn gray | WC4P | 4 | 66207927950 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 03 | Ultrasonic sensor, Phytonic Blue | WC1M | 4 | 66209826965 | Shop at ECS Tuning | |||||
| For vehicles with mediterran-blau metallic |
WC10=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mediterranean Blue | WC10 | 4 | 66207927778 | Shop at ECS Tuning | |||||
| For vehicles with Dravitgrau metallic |
WC36=Yes |
|||||||||
| 03 | Ultrasonic sensor, Dravite Gray | WC36 | 4 | 66209827023 | Shop at ECS Tuning | |||||
| For vehicles with Piemont rot metallic |
WC3C=Yes |
|||||||||
| 03 | Ultrasonic sensor, Piedmont Red | WC3C | 4 | 66207927766 | Shop at ECS Tuning | |||||
| For vehicles with glacier-silber metallic |
WA83=Yes |
|||||||||
| 03 | Ultrasonic sensor, Glacier Silver | WA83 | 4 | 66209827005 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 03 | Ultrasonic sensor, Skyscraper gray | WC4W | 4 | 66207927954 | Shop at ECS Tuning | |||||
| For vehicles with kaschmir-silver metallic |
WA72=Yes |
|||||||||
| 03 | Ultrasonic sensor, Kashmir Silver | WA72 | 4 | 66209472210 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral White | WA96 | 4 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 03 | Ultrasonic sensor Aventurin Red III | WC57/WX1C | 4 | 66205A08986 | Shop at ECS Tuning | |||||
| For vehicles with Toronto red, metallic |
WC3G=Yes |
|||||||||
| 03 | Ultrasonic sensor, Toronto red | WC3G | 4 | 66207927830 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 03 | Ultrasonic sensor, Tanzanite Blue | WC3Z | 4 | 66209827052 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 4 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with Sao paulo gelb |
YC4H=Yes |
|||||||||
| 03 | Ultraschallsensor Sao Paulo gelb | WC2S YC4H | 4 | 66207927966 | Shop at ECS Tuning | |||||
| For vehicles with Isle of man green metallic |
WC4G=Yes |
|||||||||
| 03 | Ultrasonic sensor, Isle of Man Green | WC4G | 4 | 66207927970 | Shop at ECS Tuning | |||||
| For vehicles with Oxide grey II metallic |
WC4A=Yes |
|||||||||
| 03 | Ultrasonic sensor, Oxide Gray II | WC4A | 4 | 66207927924 | Shop at ECS Tuning | |||||
| For vehicles with Citrin black II metallic |
WC49=Yes |
|||||||||
| 03 | Ultrasonic sensor, Citrine Black II | WC49 | 4 | 66207927920 | Shop at ECS Tuning | |||||
| For vehicles with Blue ridge mountain metallic |
WC35=Yes |
|||||||||
| 03 | Ultrasonic sensor Blue Ridge Mountain | WC35 | 4 | 66209827009 | Shop at ECS Tuning | |||||
| For vehicles with Portimao blau metallic |
WC31=Yes |
|||||||||
| 03 | Ultrasonic sensor, Portimao Blue | WC31 | 4 | 66207927814 | Shop at ECS Tuning | |||||
| For vehicles with sparkling storm brillanteffekt metallic |
WC07=Yes |
|||||||||
| 03 | Ultrasonic transducer Sparkling Storm | WC07 | 4 | 66207927762 | Shop at ECS Tuning | |||||
| For vehicles with mineral-grau metallic |
WB39=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral Gray | WB39 | 4 | 66209827060 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 03 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 4 | 66209827056 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 4 | 66209826784 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
