Front radar sensor, long range for BMW XM G09 XM (2025)

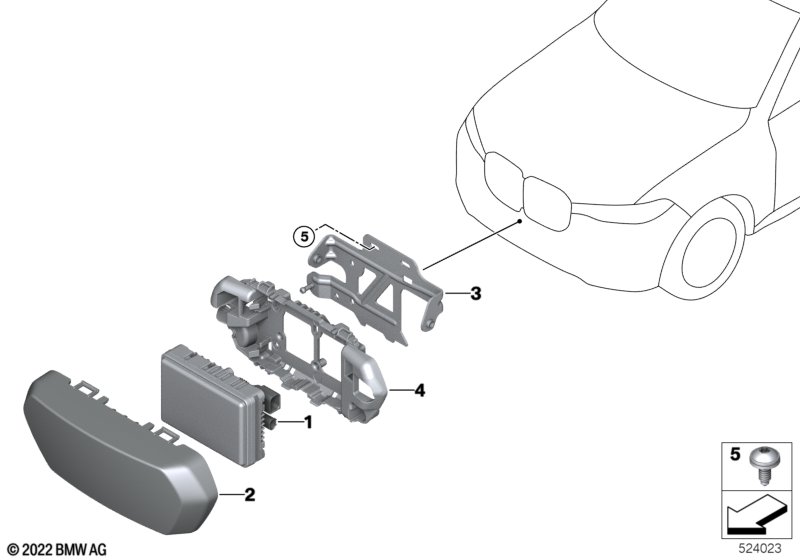

This Front radar sensor, long range technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Driving assistant professional |
S5AUA=Yes |
||||||||
| For vehicles with National version Canada and Country-specific equipment Taiwan 04825 |
L838A=No S8LTA=No |
|||||||||
| 01 | Front radar sensor, long range | 1 | 66315A8A328 | Shop at ECS Tuning | ||||||
| For vehicles with National version Canada and Country-specific equipment Taiwan 04825 |
L838A=Yes S8LTA=Yes |
|||||||||
| 01 | Front radar sensor, long range | 1 | 66315A8A329 | Shop at ECS Tuning | ||||||
| For vehicles with National version Canada and Country-specific equipment Taiwan 04825 |
L838A=Yes S8LTA=No |
|||||||||
| 01 | Front radar sensor, long range | 1 | 66315A8A329 | Shop at ECS Tuning | ||||||
| For vehicles with National version Canada and Country-specific equipment Taiwan 04825 |
L838A=No S8LTA=Yes |
|||||||||
| 01 | Front radar sensor, long range | 1 | 66315A8A329 | Shop at ECS Tuning | ||||||
| 02 | Radome | 1 | 66315A30C95 | Shop at ECS Tuning | ||||||
| 03 | Mount front radar sensor | 1 | 66315A25091 | Shop at ECS Tuning | ||||||
| 04 | Mount front radar sensor | 1 | 66315A25097 | Shop at ECS Tuning | ||||||
| 05 | Combi oval-head machine screw | M6X16-8.8-ZNNI | 2 | 07146999225 | Shop at ECS Tuning | |||||
