Camera ultrasonic automated parking for BMW XM G09 XM (2025)

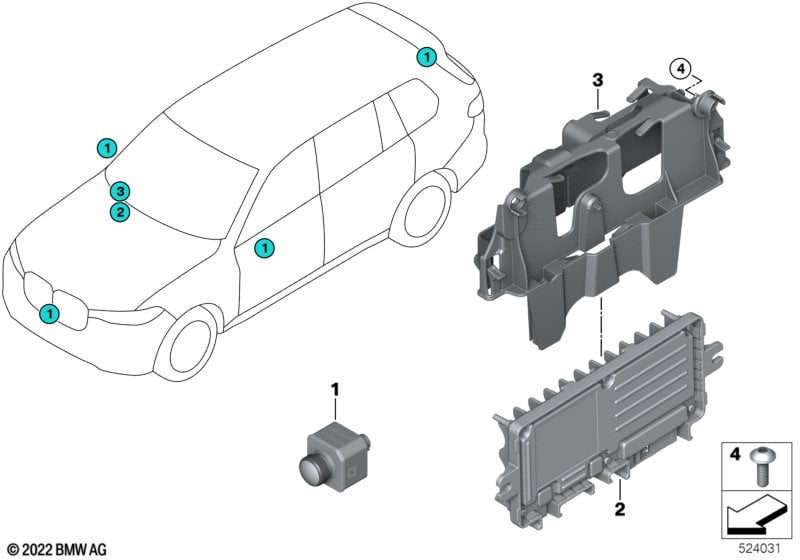

This Camera ultrasonic automated parking technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camera ultrasonic automated parking | 4 | 66555A47225 | Shop at ECS Tuning | ||||||
| 02 | Control unit automated parking camera | 1 | 66555B65A37 | Shop at ECS Tuning | ||||||
| 03 | Control unit bracket | 1 | 66319505268 | Shop at ECS Tuning | ||||||
| 04 | Fillister head self-tapping screw | 5X14 | 2 | 07146973628 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW XM G09 XM Camera ultrasonic automated parking?
- This technical diagram illustrates the Camera ultrasonic automated parking within the Distance Systems, Cruise Control group for the XM G09 XM produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Camera ultrasonic automated parking (Part #66555A47225).
- Which models use the hardware listed in this Camera ultrasonic automated parking?
- The hardware and components featured in the Camera ultrasonic automated parking are specific to the XM G09 XM produced during 2025. These technical specifications ensure that parts like the Camera ultrasonic automated parking (66555A47225) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Camera ultrasonic automated parking assembly?
- Each item in the Camera ultrasonic automated parking corresponds to the numbered list below the illustration. For the XM G09 XM, you can identify the Camera ultrasonic automated parking by locating its position on the schematic, which then links to the official BMW part number 66555A47225 for the Distance Systems, Cruise Control section.
