Park Distance Control (PDC) for BMW 2 Series G42 220d (2025)

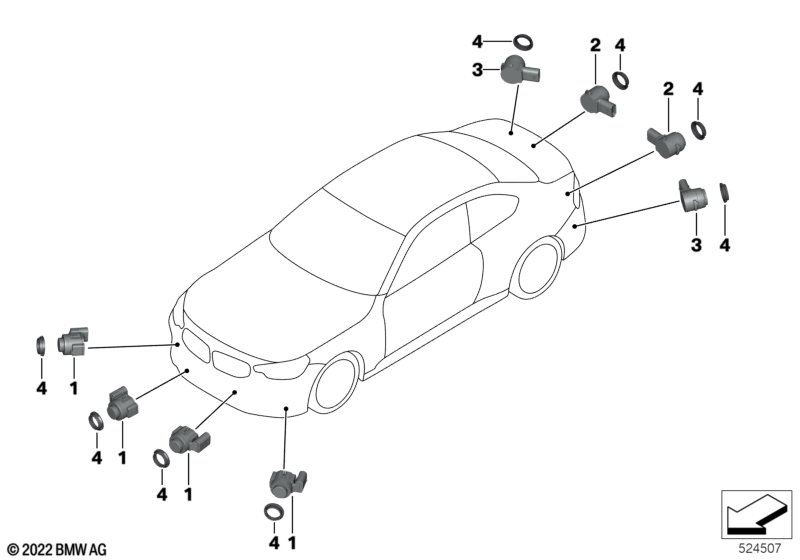

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 2 Series G42 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=Yes |
||||||||
| 01 | Ultrasonic sensor, black | M416/M475/U668 | 4 | 66209826785 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with Brooklyn grau metallic |
WC4P=Yes |
|||||||||
| 02 | Ultrasonic sensor, Brooklyn gray | WC4P | 2 | 66207927950 | Shop at ECS Tuning | |||||
| For vehicles with Portimao blau metallic |
WC31=Yes |
|||||||||
| 02 | Ultrasonic sensor, Portimao Blue | WC31 | 2 | 66207927814 | Shop at ECS Tuning | |||||
| For vehicles with Thundernight metallic |
WC56=Yes |
|||||||||
| 02 | Ultrasonic sensor, Thundernight | WC56 | 2 | 66207927958 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with Toronto red, metallic |
WC3G=Yes |
|||||||||
| 02 | Ultrasonic sensor, Toronto red | WC3G | 2 | 66207927830 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 02 | Ultrasonic sensor Sunset Orange | WC1X | 2 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 02 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 2 | 66209827056 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, color code | 2 | 66205A1F7B5 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor, Alpine White | U300 | 2 | 66209826949 | Shop at ECS Tuning | |||||
| For vehicles with Brooklyn grau metallic |
WC4P=Yes |
|||||||||
| 03 | Ultrasonic sensor, Brooklyn gray | WC4P | 2 | 66207927950 | Shop at ECS Tuning | |||||
| For vehicles with Portimao blau metallic |
WC31=Yes |
|||||||||
| 03 | Ultrasonic sensor, Portimao Blue | WC31 | 2 | 66207927814 | Shop at ECS Tuning | |||||
| For vehicles with Thundernight metallic |
WC56=Yes |
|||||||||
| 03 | Ultrasonic sensor, Thundernight | WC56 | 2 | 66207927958 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 03 | Ultrasonic sensor, Mineral White | WA96 | 2 | 66209826953 | Shop at ECS Tuning | |||||
| For vehicles with Toronto red, metallic |
WC3G=Yes |
|||||||||
| 03 | Ultrasonic sensor, Toronto red | WC3G | 2 | 66207927830 | Shop at ECS Tuning | |||||
| For vehicles with Sunset orange metallic |
WC1X=Yes |
|||||||||
| 03 | Ultrasonic sensor Sunset Orange | WC1X | 2 | 66209827001 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package and dark-shadow metallic |
S715A=Yes WB27=Yes |
|||||||||
| 03 | Ultrasonic sensor, Dark Shadow | WB27 | 2 | 66209826989 | Shop at ECS Tuning | |||||
| For vehicles with melbourne-rot metallic or Melbourne rot Akzent frozen grey met. |
WA75=Yes WC32=Yes |
|||||||||
| 03 | Ultrasonic sensor, Melbourne Red | WA75 WC32 | 2 | 66209827056 | Shop at ECS Tuning | |||||
| For vehicles with carbon-schwarz or black-sapphire metallic or black 2 |
M416=Yes M475=Yes U668=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M416/M475/U668 | 2 | 66209826784 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring | 8 | 66209390408 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series G42 220d Park Distance Control (PDC)?
- This technical diagram illustrates the Park Distance Control (PDC) within the Distance Systems, Cruise Control group for the 2 Series G42 220d produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Ultrasonic sensor, black (Part #66209826785).
- Which models use the hardware listed in this Park Distance Control (PDC)?
- The hardware and components featured in the Park Distance Control (PDC) are specific to the 2 Series G42 220d produced during 2025. These technical specifications ensure that parts like the Ultrasonic sensor, black (66209826785) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Park Distance Control (PDC) assembly?
- Each item in the Park Distance Control (PDC) corresponds to the numbered list below the illustration. For the 2 Series G42 220d, you can identify the Ultrasonic sensor, black by locating its position on the schematic, which then links to the official BMW part number 66209826785 for the Distance Systems, Cruise Control section.
