Park Distance Control (PDC/PMA) for BMW 7 Series G70 740d (2024)

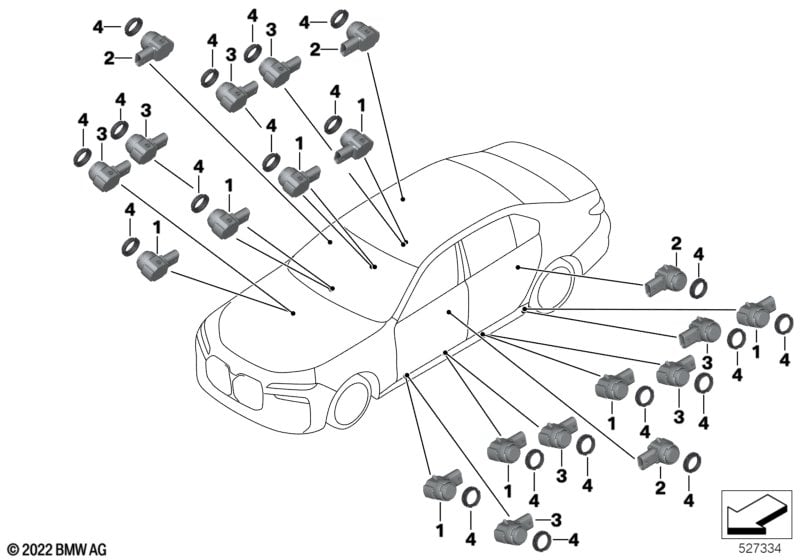

This Park Distance Control (PDC/PMA) technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Automatic doors |
S3CDA=Yes |
||||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| 01 | Ultrasonic sensor, color code | 2 | 66205A4F598 | Shop at ECS Tuning | ||||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 01 | Ultrasonic sensor, black | M475/WB27 | 2 | 66205A1A269 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Space silver metallic |
S9T1A=No WC67=Yes |
|||||||||
| 01 | Ultrasonic sensor space silver | WC67 | 2 | 66205A2DA50 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and alpinweiss 3 |
S9T1A=No U300=Yes |
|||||||||
| 01 | Ultrasonic sensor Alpine White solid | U300 | 2 | 66205A17979 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and mineral-weiss metallic |
S9T1A=No WA96=Yes |
|||||||||
| 01 | Ultrasonic sensor mineral white metallic | WA96 | 2 | 66205A179A0 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Frozen Deep Gray II metallic |
S9T1A=No WC64=Yes |
|||||||||
| 01 | Ultrasonic sensor Frozen Deep Grey II | WC64 | 2 | 66205A2DA48 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Tansanitblau II metallic |
S9T1A=No WC3Z=Yes |
|||||||||
| 01 | Ultrasonic sensor Tanzanite Blue metall. | WC3Z | 2 | 66205A2DA40 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Aventurinrot III metallic |
S9T1A=No WC57=Yes |
|||||||||
| 01 | Ultrasonic sensor Aventurin Red III | WC57 | 2 | 66205A179B2 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Frozen pure grey metallic |
S9T1A=No WC5A=Yes |
|||||||||
| 01 | Ultrasonic sensor Frozen Pure Grey | WC5A | 2 | 66205A2DA19 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and sophisto-grau brillant metallic |
S9T1A=No WA90=Yes |
|||||||||
| 01 | Ultrasonic sensor, Sophisto Gray | WA90 | 2 | 66205A17999 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Dravitgrau metallic |
S9T1A=No WC36=Yes |
|||||||||
| 01 | Ultrasonic sensor Dravite Gray metallic | WC36 | 2 | 66205A2DA30 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Sparkling copper grey metallic |
S9T1A=No WC55=Yes |
|||||||||
| 01 | Ultrasonic sensor Sparkling Copper Gray | WC55 | 2 | 66205A24403 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Brooklyn grau metallic |
S9T1A=No WC4P=Yes |
|||||||||
| 01 | Ultrasonic sensor Brooklyn Gray metallic | WC4P | 2 | 66205A2DA44 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and Oxide grey II metallic |
S9T1A=No WC4A=Yes |
|||||||||
| 01 | Ultrasonic sensor Oxide Gray metallic | WC4A | 2 | 66205A2DA46 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE and carbon-schwarz or black-sapphire metallic |
S9T1A=No M416=Yes M475=Yes |
|||||||||
| 01 | Ultrasonic sensor, black | M475/WB27 | 2 | 66205A1A269 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, black | M475/WB27 | 2 | 66205A1A269 | Shop at ECS Tuning | |||||
| For vehicles with M SPORT EXTERIEURUMFAENGE |
S9T1A=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M475/WB27 | 2 | 66205A1A269 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring PDC torque converter | X | 66209283203 | Shop at ECS Tuning | ||||||
