Park Distance Control (PDC) for BMW 3 Series G20 Sedan LCI M340iX (2025)

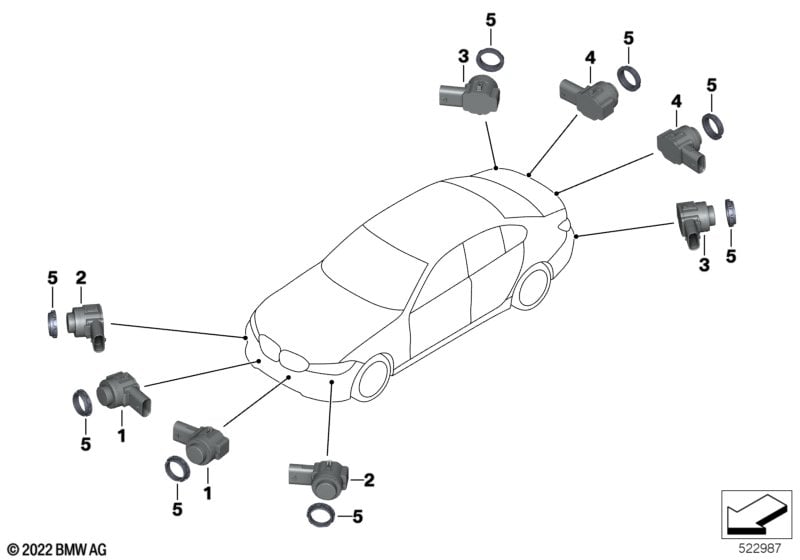

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan LCI M340iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.

Park Distance Control (PDC)
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
M Aerodynamics package
S715A=Yes
01 Ultrasonic sensor, black M416/M475/U668 2 66209826784 Shop at ECS Tuning
01 Ultrasonic sensor, color code 2 66205A1F7B5 Shop at ECS Tuning
Control number for individual colors
Attention, important info for
vehicles with individual painting:
After entering the vehicle
identification number in
"Vehicle details", select the
"Equipment" option.
For vehicles with individual painting,
the key number
must be searched for/selected manually
in the condition evaluation, which
allows
the sensor to appear in the correct
color.
If the key number cannot be found in the
list, the sensor color code must be
ordered with the
appropriate key number.
02 Ultrasonic sensor, black M416/M475/U668 2 66209826784 Shop at ECS Tuning
03 Ultrasonic sensor, black M416/M475/U668 2 66209826784 Shop at ECS Tuning
03 Ultrasonic sensor, color code 2 66205A1F7B5 Shop at ECS Tuning
Control number for individual colors
Attention, important info for
vehicles with individual painting:
After entering the vehicle
identification number in
"Vehicle details", select the
"Equipment" option.
For vehicles with individual painting,
the key number
must be searched for/selected manually
in the condition evaluation, which
allows
the sensor to appear in the correct
color.
If the key number cannot be found in the
list, the sensor color code must be
ordered with the
appropriate key number.
04 Ultrasonic sensor, color code 2 66205A1F7B5 Shop at ECS Tuning
Control number for individual colors
Attention, important info for
vehicles with individual painting:
After entering the vehicle
identification number in
"Vehicle details", select the
"Equipment" option.
For vehicles with individual painting,
the key number
must be searched for/selected manually
in the condition evaluation, which
allows
the sensor to appear in the correct
color.
If the key number cannot be found in the
list, the sensor color code must be
ordered with the
appropriate key number.
For vehicles with
Arctic race blue metallic
WC4F=Yes
04 Ultrasonic sensor, Arctic Race blue WC4F 2 66207927942 Shop at ECS Tuning
For vehicles with
Citrin black II metallic
WC49=Yes
04 Ultrasonic sensor, Citrine Black II WC49 2 66207927920 Shop at ECS Tuning
For vehicles with
Isle of man green metallic
WC4G=Yes
04 Ultrasonic sensor, Isle of Man Green WC4G 2 66207927970 Shop at ECS Tuning
For vehicles with
Tansanitblau II metallic
WC3Z=Yes
04 Ultrasonic sensor, Tanzanite Blue WC3Z 2 66209827052 Shop at ECS Tuning
For vehicles with
Sunset orange metallic
WC1X=Yes
04 Ultrasonic sensor Sunset Orange WC1X 2 66209827001 Shop at ECS Tuning
For vehicles with
Blue ridge mountain metallic
WC35=Yes
04 Ultrasonic sensor Blue Ridge Mountain WC35 2 66209827009 Shop at ECS Tuning
For vehicles with
mineral-weiss metallic
WA96=Yes
04 Ultrasonic sensor, Mineral White WA96 2 66209826953 Shop at ECS Tuning
For vehicles with
Oxide grey II metallic
WC4A=Yes
04 Ultrasonic sensor, Oxide Gray II WC4A 2 66207927924 Shop at ECS Tuning
For vehicles with
mineral-grau metallic
WB39=Yes
04 Ultrasonic sensor, Mineral Gray WB39 2 66209827060 Shop at ECS Tuning
For vehicles with
Skyscraper grau metallic
WC4W=Yes
04 Ultrasonic sensor, Skyscraper gray WC4W 2 66207927954 Shop at ECS Tuning
For vehicles with
Portimao blau metallic
WC31=Yes
04 Ultrasonic sensor, Portimao Blue WC31 2 66207927814 Shop at ECS Tuning
For vehicles with
phytonic-blau metallic
WC1M=Yes
04 Ultrasonic sensor, Phytonic Blue WC1M 2 66209826965 Shop at ECS Tuning
For vehicles with
mediterran-blau metallic
WC10=Yes
04 Ultrasonic sensor, Mediterranean Blue WC10 2 66207927778 Shop at ECS Tuning
For vehicles with
Aventurinrot III metallic
WC57=Yes
04 Ultrasonic sensor Aventurin Red III WC57/WX1C 2 66205A08986 Shop at ECS Tuning
For vehicles with
snappper-rocks-blue metallic
WC1G=Yes
04 Ultrasonic sensor, Snapper Rocks Blue WC1G 2 66207927932 Shop at ECS Tuning
For vehicles with
Nanuq White
WC6A=Yes
04 Ultrason sensor, FrozenPortimao Blue II WC6R 2 66205A3F6D0 Shop at ECS Tuning
For vehicles with
Dravitgrau metallic
WC36=Yes
04 Ultrasonic sensor, Dravite Gray WC36 2 66209827023 Shop at ECS Tuning
For vehicles with
Fire Red Metallic
WC68=Yes
04 Ultrasonic sensor, Fire Red metallic WC68 2 66205A69B52 Shop at ECS Tuning
For vehicles with
galvanic-gold metallic
WC1P=Yes
04 Ultrasonic sensor, Galvanic Gold WC1P 2 66207927758 Shop at ECS Tuning
For vehicles with
Frozen pure grey metallic
WC5A=Yes
04 Ultrasonic sensor, Frozen Pure gray WC5A 2 66207927974 Shop at ECS Tuning
For vehicles with
alpinweiss 3
U300=Yes
04 Ultrasonic sensor, Alpine White U300 2 66209826949 Shop at ECS Tuning
For vehicles with
glacier-silber metallic
WA83=Yes
04 Ultrasonic sensor, Glacier Silver WA83 2 66209827005 Shop at ECS Tuning
For vehicles with
kaschmir-silver metallic
WA72=Yes
04 Ultrasonic sensor, Kashmir Silver WA72 2 66209827027 Shop at ECS Tuning
For vehicles with
Brooklyn grau metallic
WC4P=Yes
04 Ultrasonic sensor, Brooklyn gray WC4P 2 66207927950 Shop at ECS Tuning
For vehicles with
Vermontbronze metallic
WC1Z=Yes
04 Ultrasonic sensor, Vermont Bronze WC1Z 2 66209826985 Shop at ECS Tuning
For vehicles with
melbourne-rot metallic
or
Melbourne rot Akzent frozen grey met.
WA75=Yes

WC32=Yes
04 Ultrasonic sensor, Melbourne Red WA75 WC32 2 66209827056 Shop at ECS Tuning
For vehicles with
carbon-schwarz
or
black-sapphire metallic
or
black 2
M416=Yes

M475=Yes

U668=Yes
04 Ultrasonic sensor, black M416/M475/U668 2 66209826784 Shop at ECS Tuning
05 Decoupling ring 8 66209390408 Shop at ECS Tuning
