Park Distance Control (PDC) for BMW 2 Series F74 Gran Coupé 216 (2025)

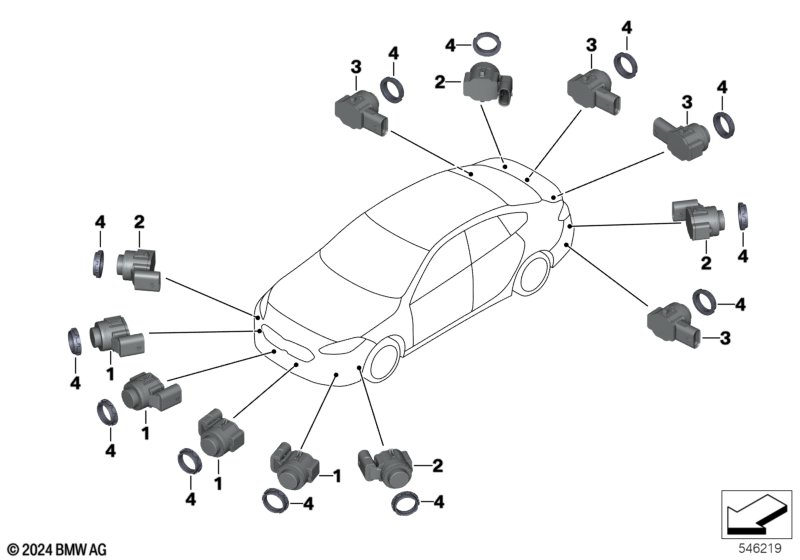

This Park Distance Control (PDC) technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ultrasonic sensor, black | M475/WB27/U668 | 4 | 66205A1A268 | Shop at ECS Tuning | |||||
| 02 | Ultrasonic sensor, color code | 4 | 66205A4F579 | Shop at ECS Tuning | ||||||
| Control number for individual colors Attention, important info for vehicles with individual painting: After entering the vehicle identification number in "Vehicle details", select the "Equipment" option. For vehicles with individual painting, the key number must be searched for/selected manually in the condition evaluation, which allows the sensor to appear in the correct color. If the key number cannot be found in the list, the sensor color code must be ordered with the appropriate key number. |
||||||||||
| For vehicles with Oxide grey II metallic |
WC4A=Yes |
|||||||||
| 02 | Ultrasonic sensor Oxide Gray metallic | WC4A | 4 | 66205A2DA45 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 02 | Ultrasonic sensor Phytonic Blue metallic | WC1M | 4 | 66205A17966 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 02 | Ultrasonic sensor Aventurine Red III | WC57 | 4 | 66205A17969 | Shop at ECS Tuning | |||||
| For vehicles with Cape York Green metallic |
WC5Y=Yes |
|||||||||
| 02 | Ultrasonic sensor CapeYorkGreen metallic | WC5Y | 4 | 66205A2DA24 | Shop at ECS Tuning | |||||
| For vehicles with Brooklyn grau metallic |
WC4P=Yes |
|||||||||
| 02 | Ultrasonic sensor Brooklyn Gray metallic | WC4P | 4 | 66205A2DA43 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 02 | Ultrasonic sensor mineral white metallic | WA96 | 4 | 66205A17965 | Shop at ECS Tuning | |||||
| For vehicles with Storm bay metallic |
WC3N=Yes |
|||||||||
| 02 | Ultrasonic sensor Storm Bay metallic | WC3N | 4 | 66205A17968 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 02 | Ultrasonic sensor Tanzanite Blue metall. | WC3Z | 4 | 66205A2DA39 | Shop at ECS Tuning | |||||
| For vehicles with Frozen pure grey metallic |
WC5A=Yes |
|||||||||
| 02 | Ultrasonic sensor Frozen Pure Grey | WC5A | 4 | 66205A2DA16 | Shop at ECS Tuning | |||||
| For vehicles with Fire Red Metallic |
WC68=Yes |
|||||||||
| 02 | Ultrasonic sensor, Fire Red metallic | WC68 | 4 | 66205A67595 | Shop at ECS Tuning | |||||
| For vehicles with Space silver metallic |
WC67=Yes |
|||||||||
| 02 | Ultrasonic sensor Space Silver metallic | WC67 | 4 | 66205A2DA49 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 02 | Ultrasonic sensor Sanremo Green metallic | WC4E | 4 | 66205A243F8 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 02 | Ultrasonic sensor, Skyscraper gray | WC4W | 4 | 66205A24400 | Shop at ECS Tuning | |||||
| For vehicles with Sparkling copper grey metallic |
WC55=Yes |
|||||||||
| 02 | Ultrasonic sensor Sparkling Copper Gray | WC55 | 4 | 66205A24402 | Shop at ECS Tuning | |||||
| For vehicles with Blue ridge mountain metallic |
WC35=Yes |
|||||||||
| 02 | Ultrasonic sensor Blue Ridge Mountain | WC35 | 4 | 66205A17967 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 02 | Ultrasonic sensor, Sophisto Gray | WA90 | 4 | 66205A17964 | Shop at ECS Tuning | |||||
| For vehicles with Frozen Portimao Blue metallic |
WC6R=Yes |
|||||||||
| 02 | Ultrasonic sensor Frozen Portimao Blue | WC6R/WX1E | 4 | 66205A67597 | Shop at ECS Tuning | |||||
| For vehicles with Utah orange metallic |
WC66=Yes |
|||||||||
| 02 | Ultrasonic sensor Utah Orange metallic | WC66 | 4 | 66205A2DA20 | Shop at ECS Tuning | |||||
| For vehicles with Portimao blau metallic |
WC31=Yes |
|||||||||
| 02 | Ultrasonic sensor Portimao Blue metallic | WC31 | 4 | 66205A243F4 | Shop at ECS Tuning | |||||
| For vehicles with Blue bay lagoon metallic |
WC5L=Yes |
|||||||||
| 02 | Ultrasonic sensor BlueBayLagoon metallic | WC5L | 4 | 66205A2DA09 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 02 | Ultrasonic sensor Alpine White solid | U300 | 4 | 66205A17947 | Shop at ECS Tuning | |||||
| For vehicles with black-sapphire metallic or black 2 or dark-shadow metallic |
M475=Yes U668=Yes WB27=Yes |
|||||||||
| 02 | Ultrasonic sensor, black | M475/WB27/U668 | 4 | 66205A1A268 | Shop at ECS Tuning | |||||
| For vehicles with dark-shadow metallic |
WB27=Yes |
|||||||||
| 03 | Ultrasonic sensor, Dark Shadow | WB27 | 4 | 66205A44D01 | Shop at ECS Tuning | |||||
| For vehicles with Thundernight metallic |
WC56=Yes |
|||||||||
| 03 | Ultrasonic sensor Thundernight metallic | WC56 | 4 | 66205A67594 | Shop at ECS Tuning | |||||
| For vehicles with Oxide grey II metallic |
WC4A=Yes |
|||||||||
| 03 | Ultrasonic sensor Oxide Gray metallic | WC4A | 4 | 66205A2DA46 | Shop at ECS Tuning | |||||
| For vehicles with phytonic-blau metallic |
WC1M=Yes |
|||||||||
| 03 | Ultrasonic sensor Phytonic Blue metallic | WC1M | 4 | 66205A179A9 | Shop at ECS Tuning | |||||
| For vehicles with Aventurinrot III metallic |
WC57=Yes |
|||||||||
| 03 | Ultrasonic sensor Aventurin Red III | WC57 | 4 | 66205A179B2 | Shop at ECS Tuning | |||||
| For vehicles with Cape York Green metallic |
WC5Y=Yes |
|||||||||
| 03 | Ultrasonic sensor CapeYorkGreen metallic | WC5Y | 4 | 66205A2DA25 | Shop at ECS Tuning | |||||
| For vehicles with Brooklyn grau metallic |
WC4P=Yes |
|||||||||
| 03 | Ultrasonic sensor Brooklyn Gray metallic | WC4P | 4 | 66205A2DA44 | Shop at ECS Tuning | |||||
| 03 | Ultrasonic sensor Brooklyn Gray metallic | WC4P | 4 | 66205A2DA44 | Shop at ECS Tuning | |||||
| For vehicles with mineral-weiss metallic |
WA96=Yes |
|||||||||
| 03 | Ultrasonic sensor mineral white metallic | WA96 | 4 | 66205A179A0 | Shop at ECS Tuning | |||||
| For vehicles with Storm bay metallic |
WC3N=Yes |
|||||||||
| 03 | Ultrasonic sensor Storm Bay metallic | WC3N | 4 | 66205A179B1 | Shop at ECS Tuning | |||||
| For vehicles with Dravitgrau metallic |
WC36=Yes |
|||||||||
| 03 | Ultrasonic sensor Dravite Gray metallic | WC36 | 4 | 66205A2DA30 | Shop at ECS Tuning | |||||
| For vehicles with Tansanitblau II metallic |
WC3Z=Yes |
|||||||||
| 03 | Ultrasonic sensor Tanzanite Blue metall. | WC3Z | 4 | 66205A2DA40 | Shop at ECS Tuning | |||||
| For vehicles with Frozen pure grey metallic |
WC5A=Yes |
|||||||||
| 03 | Ultrasonic sensor Frozen Pure Grey | WC5A | 4 | 66205A2DA19 | Shop at ECS Tuning | |||||
| For vehicles with Fire Red Metallic |
WC68=Yes |
|||||||||
| 03 | Ultrasonic sensor, Fire Red metallic | WC68 | 4 | 66205A67596 | Shop at ECS Tuning | |||||
| For vehicles with Sanremo green metallic |
WC4E=Yes |
|||||||||
| 03 | Ultrasonic sensor Sanremo Green metallic | WC4E | 4 | 66205A243F9 | Shop at ECS Tuning | |||||
| For vehicles with Skyscraper grau metallic |
WC4W=Yes |
|||||||||
| 03 | Ultrasonic sensor, Skyscraper gray | WC4W | 4 | 66205A24401 | Shop at ECS Tuning | |||||
| For vehicles with Sparkling copper grey metallic |
WC55=Yes |
|||||||||
| 03 | Ultrasonic sensor Sparkling Copper Gray | WC55 | 4 | 66205A24403 | Shop at ECS Tuning | |||||
| For vehicles with Blue ridge mountain metallic |
WC35=Yes |
|||||||||
| 03 | Ultrasonic sensor Blue Ridge Mountain | WC35 | 4 | 66205A179B0 | Shop at ECS Tuning | |||||
| For vehicles with sophisto-grau brillant metallic |
WA90=Yes |
|||||||||
| 03 | Ultrasonic sensor, Sophisto Gray | WA90 | 4 | 66205A17999 | Shop at ECS Tuning | |||||
| For vehicles with Frozen Portimao Blue metallic |
WC6R=Yes |
|||||||||
| 03 | Ultrasonic sensor Frozen Portimao Blue | WC6R | 4 | 66205A67598 | Shop at ECS Tuning | |||||
| For vehicles with Piemont rot metallic |
WC3C=Yes |
|||||||||
| 03 | Ultrasonic sensor Piemont Red metallic | WC3C | 4 | 66205A243F7 | Shop at ECS Tuning | |||||
| For vehicles with manhattan metallic |
WC3D=Yes |
|||||||||
| 03 | Ultrasonic sensor Manhattan metallic | WC3D | 4 | 66205A44CF5 | Shop at ECS Tuning | |||||
| For vehicles with Portimao blau metallic |
WC31=Yes |
|||||||||
| 03 | Ultrasonic sensor Portimao Blue metallic | WC31 | 4 | 66205A243F5 | Shop at ECS Tuning | |||||
| For vehicles with marina-bay-blau metallic |
WC1K=Yes |
|||||||||
| 03 | Ultrasonic sensor, Marina Bay Blue | WC1K | 4 | 66205A44CF3 | Shop at ECS Tuning | |||||
| For vehicles with alpinweiss 3 |
U300=Yes |
|||||||||
| 03 | Ultrasonic sensor Alpine White solid | U300 | 4 | 66205A17979 | Shop at ECS Tuning | |||||
| For vehicles with black-sapphire metallic or dark-shadow metallic |
M475=Yes WB27=Yes |
|||||||||
| 03 | Ultrasonic sensor, black | M475/WB27 | 4 | 66205A1A269 | Shop at ECS Tuning | |||||
| 04 | Decoupling ring PDC torque converter | 12 | 66209283203 | Shop at ECS Tuning | ||||||
