Tool box small for BMW 3 Series E30 318i (1994)

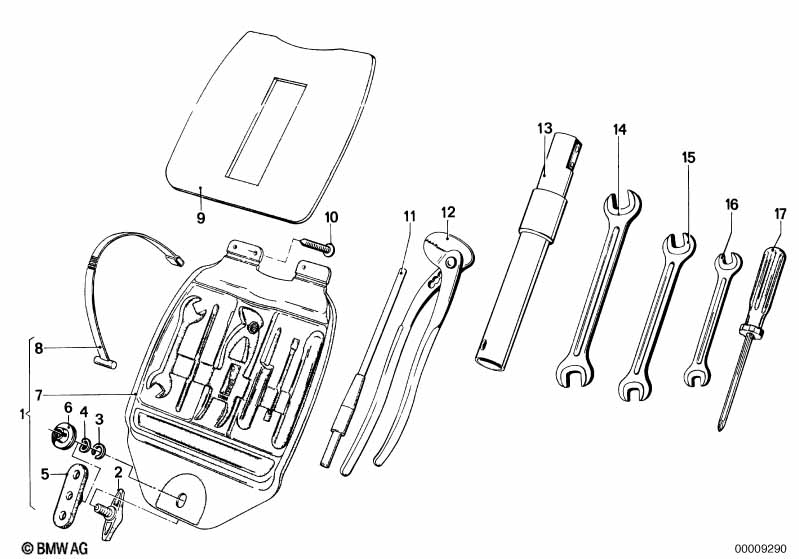

This Tool box small technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 71111128913 | $64.88 | Shop at ECS Tuning | |||||
| 02 | Screw plug | 1 | 71111117440 | $2.17 | Shop at ECS Tuning | |||||
| 03 | Lock Ring | 14X1 | 1 | 07119902398 | Shop at ECS Tuning | |||||
| 04 | Washer | 1 | 71111111922 | $0.60 | ENDED | Shop at ECS Tuning | ||||
| 06 | Threaded plug | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 08 | Holding strap | 1 | 71111179443 | $2.55 | Shop at ECS Tuning | |||||
| 09 | Sound absorber | 1 | 71111152109 | $9.02 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | ST4,2X19 | 2 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Pin | 1 | 71112902932 | Shop at ECS Tuning | ||||||
| 12 | Water pump pliers | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 12 | Water pump pliers | 1 | 71112902936 | Shop at ECS Tuning | ||||||
| 14 | Open end spanner | 17-19 | 1 | 71119690008 | $3.74 | ENDED | Shop at ECS Tuning | |||
| 15 | Open end spanner | 12-13 | 1 | 71111126148 | $5.90 | Shop at ECS Tuning | ||||
| 15 | Open end spanner | 12X13 | 1 | 71112902851 | Shop at ECS Tuning | |||||
| 16 | Double open-end wrench | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 16 | Open end spanner | 8X10 | 1 | 71112902850 | Shop at ECS Tuning | |||||
| 17 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 17 | Screwdriver | 1 | 71112902935 | Shop at ECS Tuning | ||||||
| 17 | Screwdriver | 1 | 71113909787 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Tool box small?
- This technical diagram illustrates the Tool box small within the Equipment Parts group for the 3 Series E30 318i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Tool box (Part #71111128913).
- Which models use the hardware listed in this Tool box small?
- The hardware and components featured in the Tool box small are specific to the 3 Series E30 318i produced during 1994. These technical specifications ensure that parts like the Tool box (71111128913) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tool box small assembly?
- Each item in the Tool box small corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Tool box by locating its position on the schematic, which then links to the official BMW part number 71111128913 for the Equipment Parts section.
