Car tool/Tool box for BMW 5 Series E34 525td (1995)

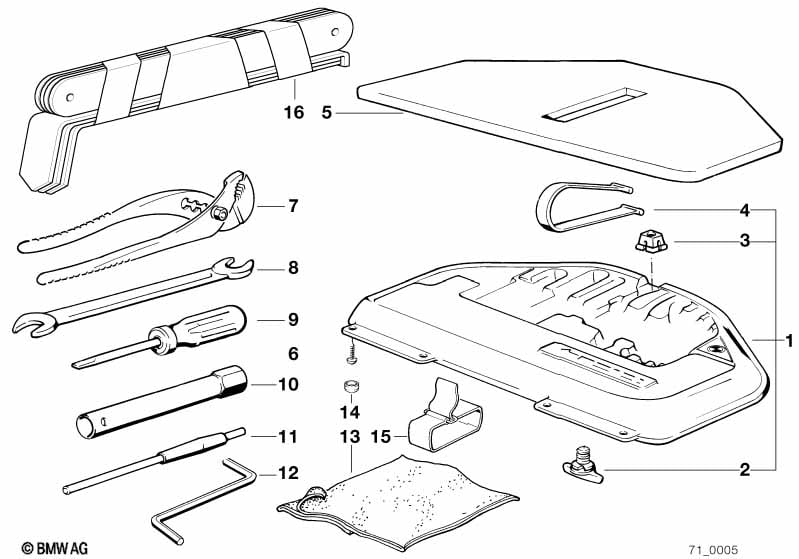

This Car tool/Tool box technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tool box | 1 | 71111179498 | $56.56 | Shop at ECS Tuning | |||||
| 02 | Screw plug | 1 | 71111179444 | $2.17 | Shop at ECS Tuning | |||||
| 03 | Threaded plug | 1 | 71111179445 | $1.82 | Shop at ECS Tuning | |||||
| 04 | Holding strap | 1 | 71111179497 | $4.10 | Shop at ECS Tuning | |||||
| 05 | Sound absorber | 1 | 71111179046 | $9.54 | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST4,2X19 | 4 | 07119904431 | $0.36 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 06 | Sheet metal screw | ST4,2X19 | 4 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cap | SILBER | 4 | 51161949794 | $0.32 | ENDED | Shop at ECS Tuning | |||
| 07 | Water pump pliers | 1 | 71111179522 | $23.94 | Shop at ECS Tuning | |||||
| 08 | Double open-end wrench | 8X10 | 1 | 71111112893 | $5.40 | Shop at ECS Tuning | ||||
| 08 | Open end spanner | 12-13 | 1 | 71111126148 | $5.90 | Shop at ECS Tuning | ||||
| 08 | Open end spanner | 17-19 | 1 | 71111129076 | $10.14 | ENDED | Shop at ECS Tuning | |||
| 09 | Screwdriver | 1 | 71111179629 | $4.74 | Shop at ECS Tuning | |||||
| 11 | Pin | 1 | 71111093774 | $4.44 | Shop at ECS Tuning | |||||
| 12 | Emergency tool elect.window/sliding roof | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 13 | Polishing cloth | 1 | 71111115810 | $2.29 | ENDED | Shop at ECS Tuning | ||||
| 16 | Warning triangle | 1 | 71601179041 | $28.95 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
