Lifting jack for BMW 7 Series E23 745i (1987)

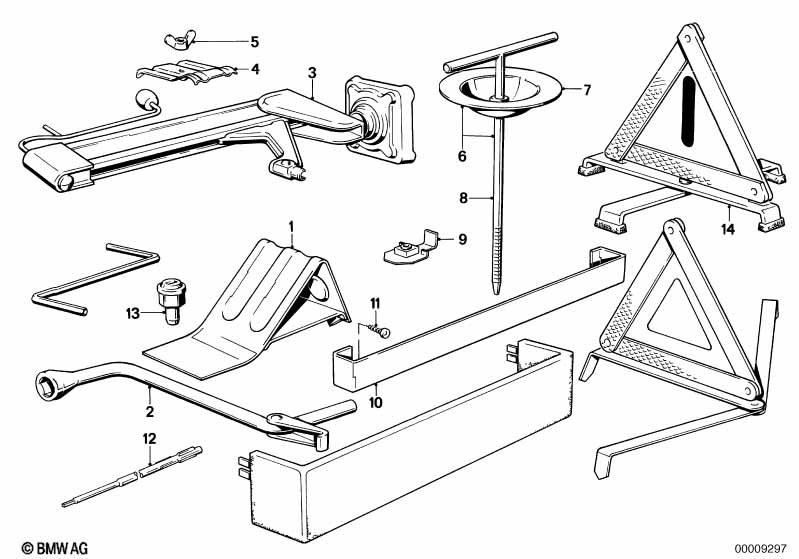

This Lifting jack technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Chock | 1 | 71123901039 | Shop at ECS Tuning | ||||||
| 02 | Crank | 1 | 71123901404 | Shop at ECS Tuning | ||||||
| 03 | Lifting jack | 1 | 71123905572 | Shop at ECS Tuning | ||||||
| 04 | Holder | 1 | 71121119885 | $1.23 | Shop at ECS Tuning | |||||
| 05 | Wing nut | M8 | 1 | 07119924040 | $1.42 | Shop at ECS Tuning | ||||
| 05 | Wing nut | M8 | 1 | 71151179257 | $3.25 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | 220MM | 1 | 71151118232 | ENDED | Shop at ECS Tuning | ||||
| 06 | Cover | 245MM | 1 | 71151152041 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bracket for spare wheel | 1 | 71151180625 | $3.62 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Screw | 1 | 71151152040 | ENDED | Shop at ECS Tuning | |||||
| 08 | Screw | 1 | 71151152040 | ENDED | Shop at ECS Tuning | |||||
| 09 | Holder | 1 | 71151119884 | $1.53 | Shop at ECS Tuning | |||||
| 10 | Bracket for hazard warn. triangle | 1 | 72601863831 | $19.86 | ENDED | Shop at ECS Tuning | ||||
| 11 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 12 | Emergency tool electr.window | 1 | 71111150191 | $9.02 | Shop at ECS Tuning | |||||
| 13 | Emergency tool electr.window | 1 | 71111150500 | $8.18 | ENDED | Shop at ECS Tuning | ||||
| 14 | Warning triangle | 1 | 71601107437 | ENDED | Shop at ECS Tuning | |||||
